880R-N4X
880R-N4X Instruction Manual Rev. 0.1 Page 9 of 18
NOTE: The System Configuration Screens differ only slightly between the Analog and Serial units.

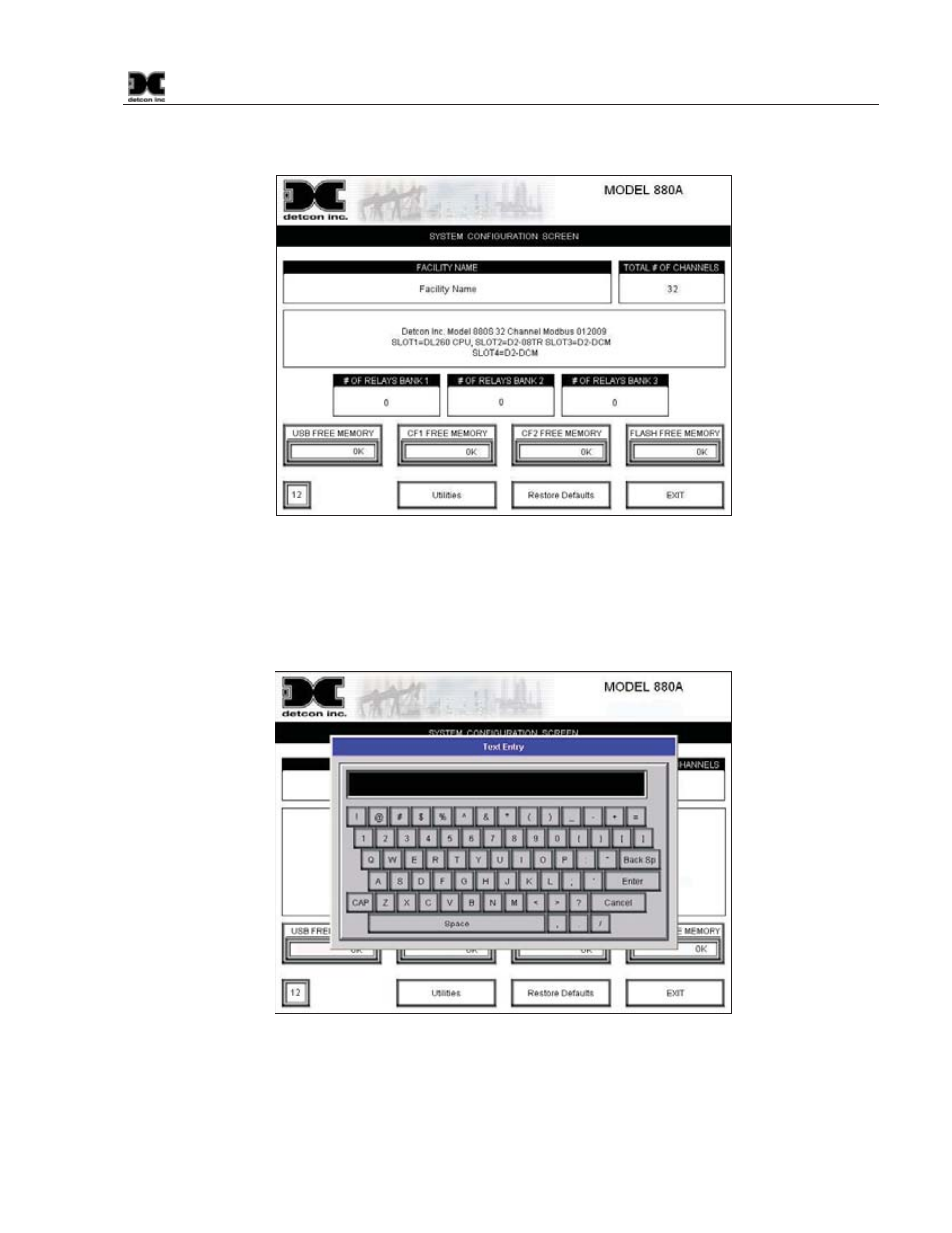

Figure 17 Serial Configuration Screen
3) Use the wand to select the “FACILITY NAME” box. A keyboard will appear to allow input of the facility
name (Figure 18). The facility name can be any alphanumeric string of no more than 40 characters. After
the facility name has been entered, use the ‘ENTER’ key to transfer the string to the “System
Configuration Screen”.
Figure 18 Inputting the Facility Name
4) Select the “TOTAL # OF CHANNELS” Box and input the number of channels that are attached to the
Main 880. This number must match the number entered in the Main 880.
