Catskill Craftsmen 1521 - Manual (Page 9)

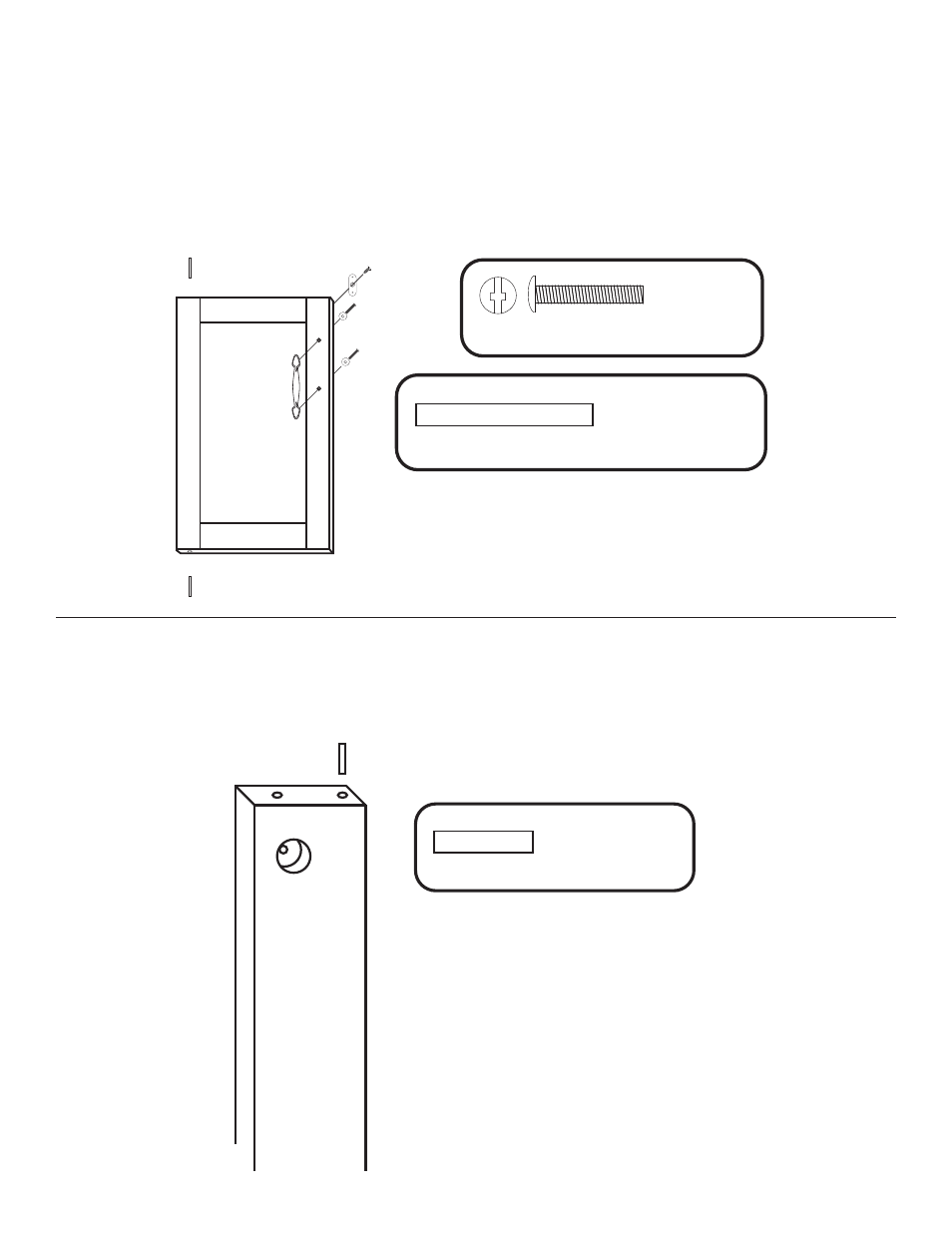

STEP 4
A. Tap/insert ONE 1 1/2” pin into each end of the door. DON’T OVERDRIVE PINS! Pins should stick
up about 1/2” when seated.
B. Attach the magnet plate (may be stuck to magnet in the hardware pack!) with a 1/2” #4 screw to
the top of the door. Bumps go toward the wood, and the plate should be vertical.
C. Attach door handle with 1” truss head machine screws. Use washers if necessary to tighten.
1” Truss Head Machine Screw
2 Used
in this step
2 Used
in this step
1 1/2” Long 3/16” DIA. Steel Pin
* Use flat washers to tighten handle if necessary.
STEP 5
A. Take the 2 front braces and tap/insert one 3/4” steel pin into each end of both braces until seated.
About 3/8” will stick out when seated. OK if loose.
4 Used
in this step
3/4” Long 3/16” DIA. Steel Pin
