STEP 1B

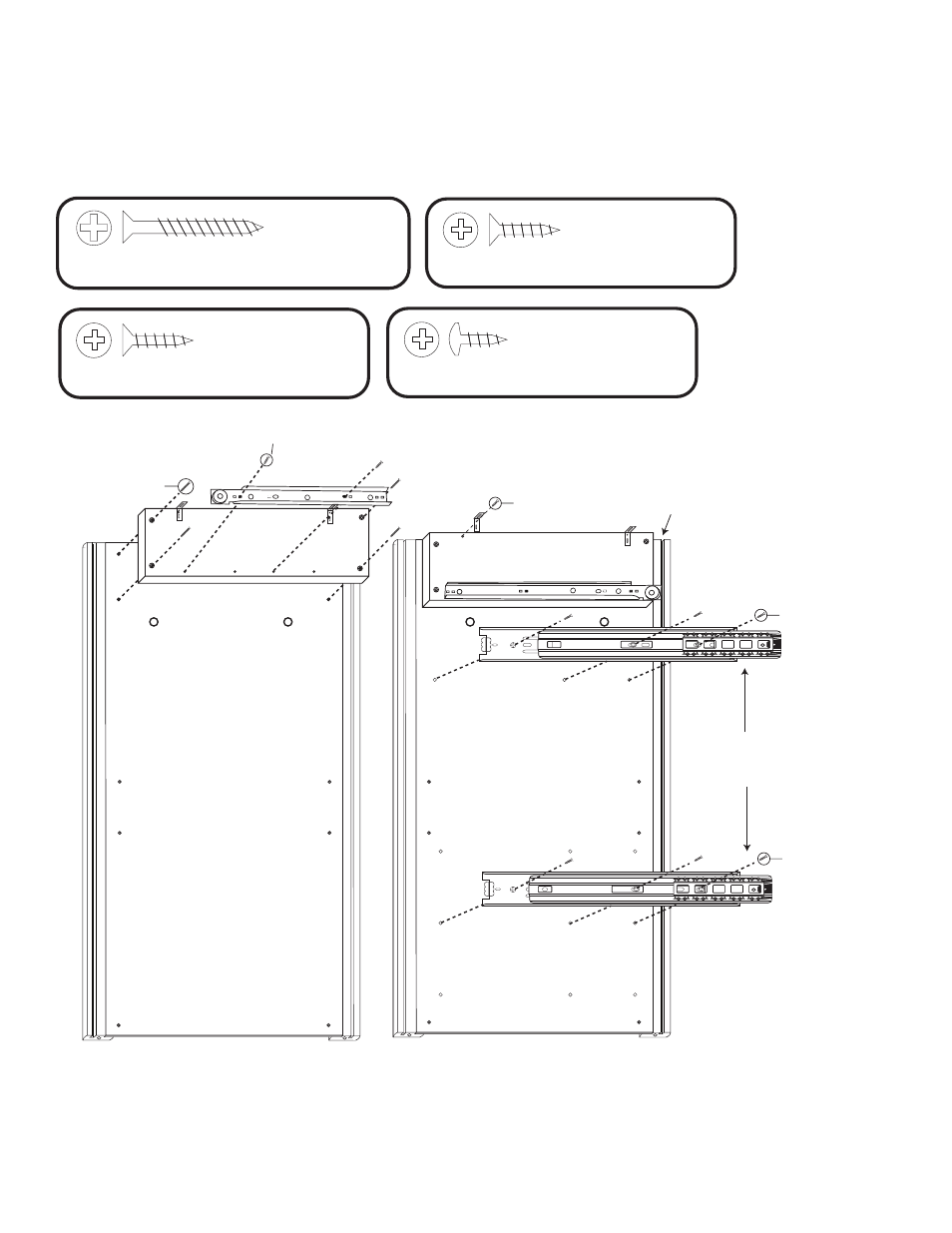

IMPORTANT - There is a right and a left side panel. Lay them out as shown below. Pay close
attention to the glides so that they are properly positioned when attaching to the side panels. Review
Step 1A for specific instructions on the full extention glides.
PLEASE NOTE - Some pieces are interchangeable with other units we manufacture, and thus some
pilot holes may not be used. It is important to note the proper holes required for assembly in each step.
TOP TOP
5/8” #7 Screw
1 1/4” #8 Screw
5/8” #6 Screw
8 Used
in this step
1-1/4” Phillips Flat Head #8 Screw
4 Used
in this step
5/8” Phillips Flat Head #7 Screw
3/8” #8 Pan Head
Screw
3/8” #8 Pan Head
Screw
6 Used
in this step
3/8” Phillips Pan Head #8 Screw
Left Side Panel Right Side Panel
4 Used
in this step
5/8” Phillips Flat Head #6 Screw
Leg Slot
When attached, this
edge will be flush
behind the leg slot.
