Catskill Craftsmen 1521 - Manual (Page 13)

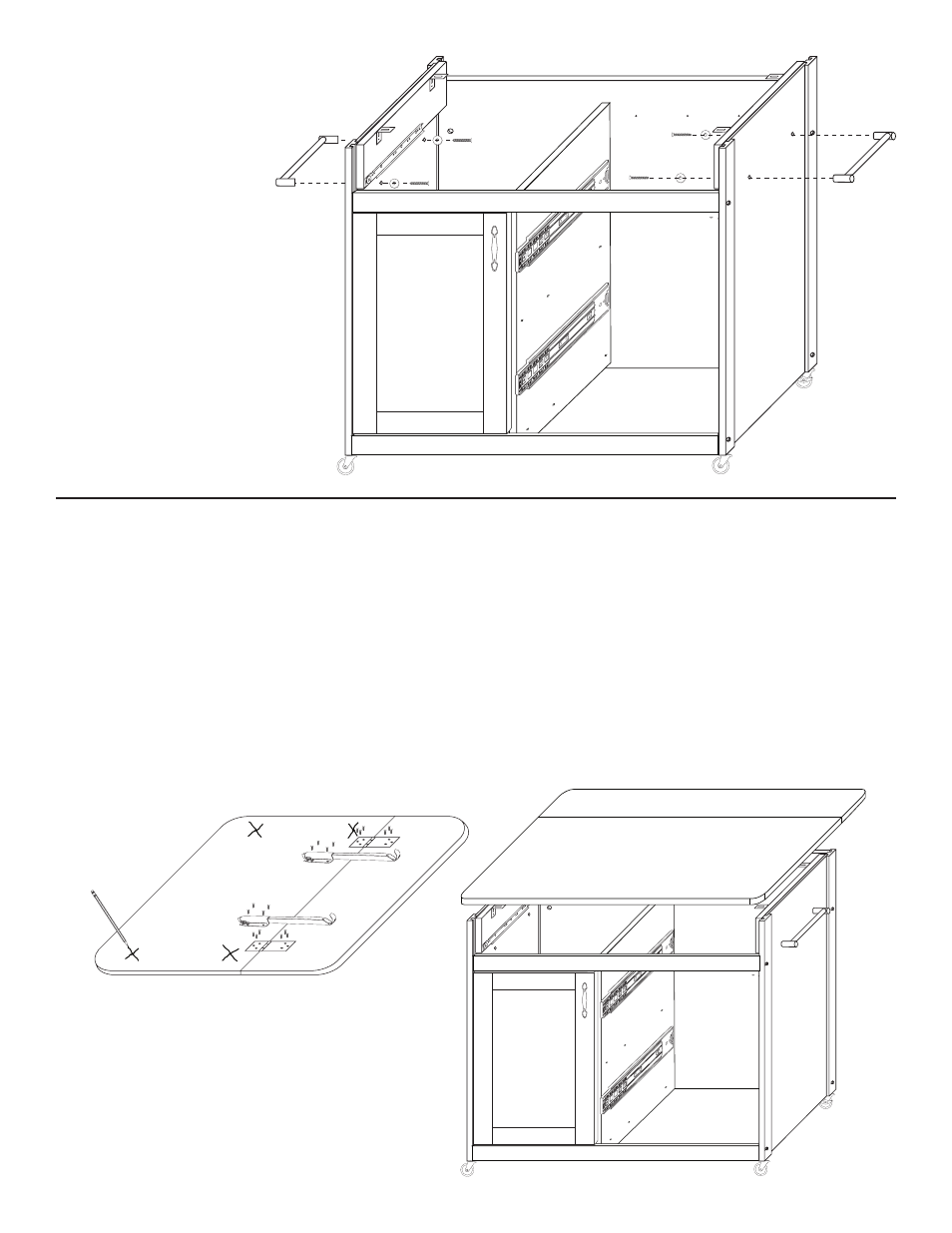

STEP 11
A. Upright unit.
B. Attach Towel Bars
to the Side Panels with
1” #8 screws from
inside each Side Panel.
STEP 12
A. Assemble top by placing the top and the drop leaf upside down on a smooth flat surface. Install
hinges using 5/8 #8 screws. The longer part of the hinge goes on the drop leaf with the short part on
the cart top. Fasten the drop leaf supports using 5/8 #8 screws. Attach Drop Leaf Supports with 5/8
inch #8 screws. See illustration 12A.
B. Make a large ( X ) mark over each of the 4 pilot holes in the bottom. Make marks about 1/2-1” long.
These marks will help you align the cabinet with the pilot holes in the bottom of the Top.
C. Place the Cart Top on the cabinet. Open the outside doors. Maneuver the Cart Top so that the (X)
marks/pilot holes in the bottom of the Top align with the slots in the “L” brackets. Secure top to “L”
brackets with 5/8” #6 screws.
ILLUSTRATION 12B
ILLUSTRATION 12A
