Catskill Craftsmen 1521 - Manual (Page 3)

1 3/4” Phillips Flat Head Bolt (8)
1 1/4” Phillips Flat Head #8 Screw (20)
1” Truss Head Machine Screw (6)
5/8” Phillips Flat Head #8 Screw (20)
3/4” Long 3/16” DIA. Steel Pin (8)
1” Long 3/16” DIA. Steel Pin (8)
1 1/2” Long 3/16” DIA. Steel Pin (2)
Hinge (2)
Caster Socket (4)
5/8 Wooden Disk (8)
Nickel Handle (5)
Towel Bar Post (4)
Wheel
Casters (2)
Locking Wheel
Casters (2)
Magnet Plate (1)
Magnet (1)
3/16” Flat Washer (13)
10-24 Hex Nut (8)
5/8” Phillips Flat Head #7 Screw (4)
Bundled and labeled separately.
Bastion Set Screw (10)
Bastion Post (10)
Bastion Barrel Nut (10)
“L” Bracket (4)
Drawer Glide (1 Set )
Drawer
Cabinet
P/N Drop Leaf Support (2)
Polished Nickel Towel Bar (2)
Full Extention
Drawer Glide (2 Sets)
1/2” Truss Head M4x10 screw (4)
3/8” Phillips Pan Head #8 Screw (20)
5/8” Phillips Flat Head #6 Screw (12)

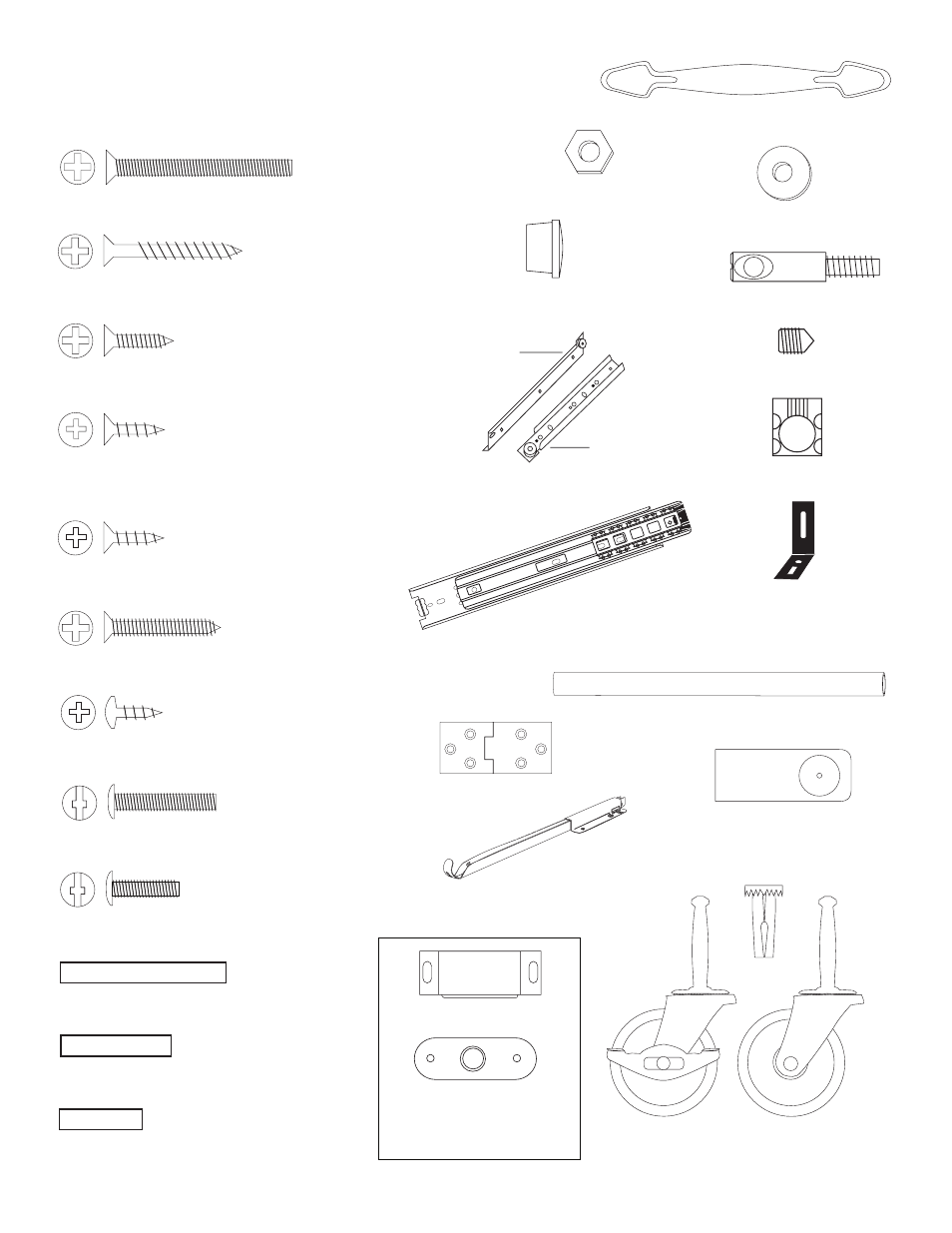

Hardware List Model 1521
To ease assembly, sort and count the hardware before getting started.
Bundled with screws used
for attaching to cart.
1” Phillips Flat Head #8 Screw (4)
(used to attach spice
rack and towel bar)
(Cabinet Assembly)
(Drawer Backs
Table Top Sticks)
(Attaches Hinges
Drop Leaf Supports)
(Top Drawer Glides That
Attach to Table Top Sticks)
(Used to Attach L Brackets / Top
Drawer Glides to the Drawer Sides)
(Full Extention Glide Screws)
(Attaches Handles
to Door / Top Drawer)
(Attaches Handles
to Large Drawers)
(Door Pin)
(Shelf Pin)
(Brace Pin)
