Avigilon Control Center System Integration Guide with GE Facility Commander Wnx
6
Avigilon FCWnx Gateway
The Avigilon FCWnx Gateway is composed of two parts: the Avigilon FCWnx Gateway Windows
service that runs automatically in the background, and the Avigilon FCWnx Gateway
configuration application that is used to configure the connection and alarm mappings between
the Facility Commander Wnx and the Avigilon systems.
NOTE: Whenever the Avigilon FCWnx Gateway configuration application is opened, the Avigilon
FCWnx Gateway service is stopped.
If a mapped alarm is activated while the configuration application is open, the alarm will only
appear in the application that detected the alarm.

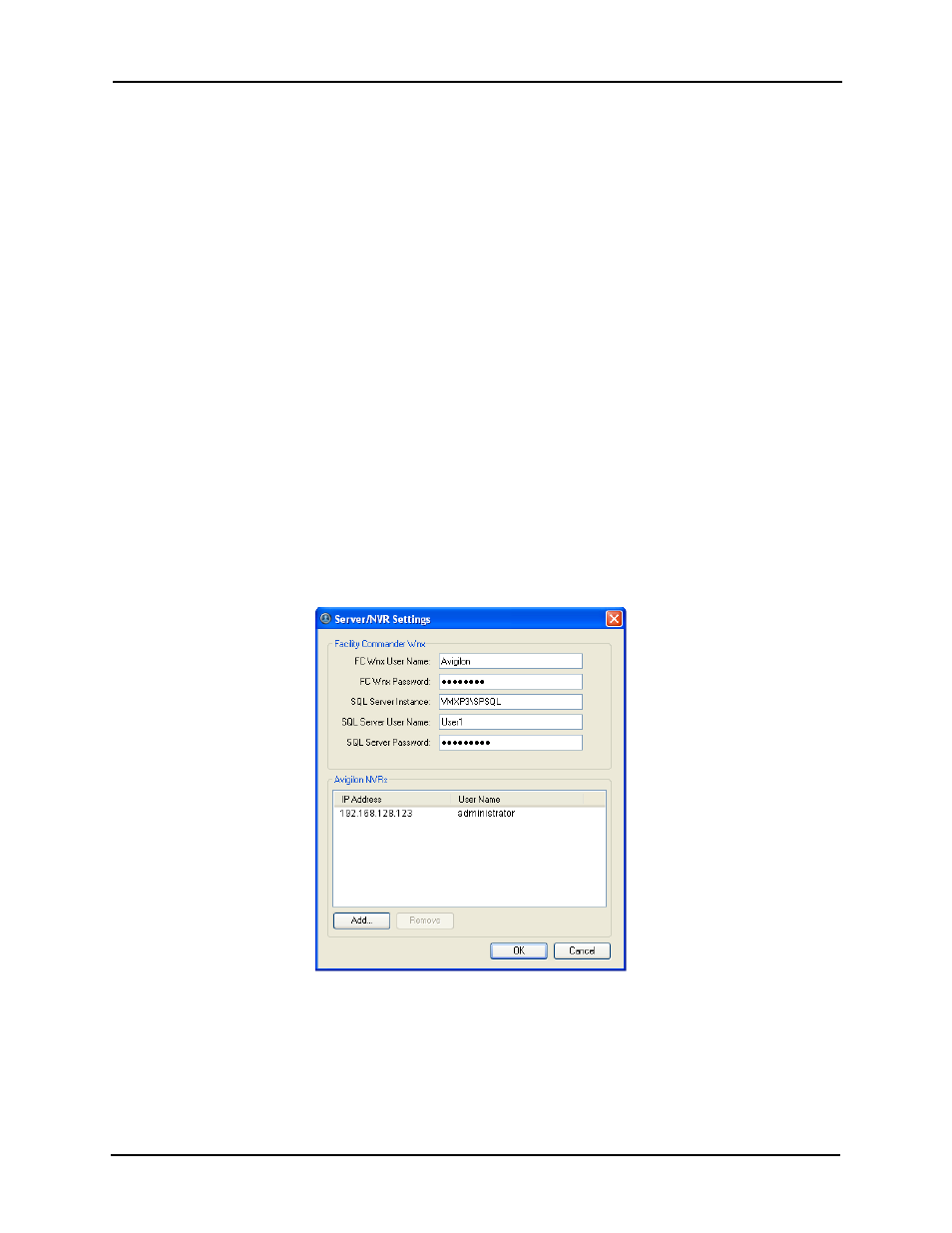

Configuring Server Settings
Configure the Avigilon FCWnx Gateway to access the two applications.
The Avigilon FCWnx Gateway configuration application remembers the server configuration, so
you do not need to repeat this procedure if the settings remain the same.
1. Open the Avigilon FCWnx Gateway software. Start > All Programs > Avigilon >
Configure Avigilon FCWnx Gateway.
2. Complete the following fields:
• FC Wnx User Name: enter the Application Login name you created in the FCWnx
configuration. See Creating an API Connection in FCWnx on page 3
• FC Wnx Password: enter the password you created in the FCWnx configuration.
See Creating an API Connection in FCWnx on page 3
