Work Sharp WS3000 Tool Bar Attachment - Manual (Page 2)

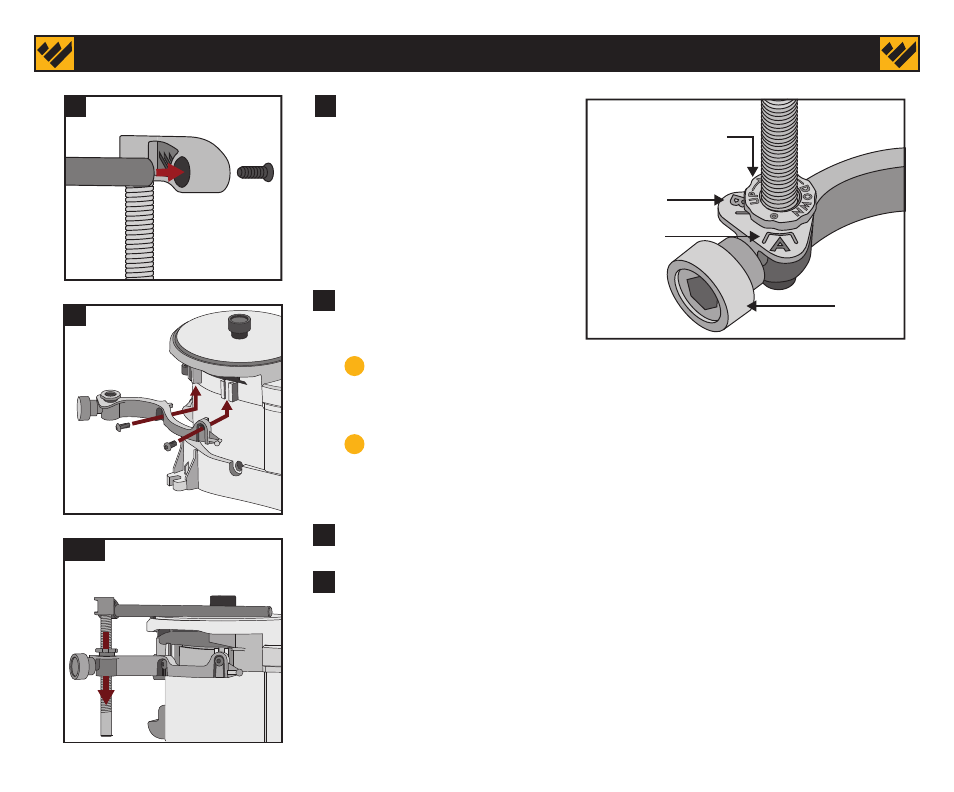

Position A
Position B
Micro-Adjust knob
with index mark
Tool Bar
Securing knob
(1) Set Up Instructions:
1 Insert tapped end of bar
into the tool bar knuckle
and use a mallet to tap bar
until it seats. Use provided
fastener (5/32” hex key) to
secure bar and create a
90° Tool Bar.
1
2
3,4
3 Insert Tool Bar into bracket as shown.
4 Square the Tool Bar to the wheel. Move the micro adjust
nut to the top of the rod and place the Tool Bar onto the
wheel and tighten the Tool Bar knob. Loosen the two bracket
fasteners and adjust the bracket until the bar is flat on the
wheel. Then re-tighten the bracket.
Jack screw on the bottom of the bracket can be used to micro adjust
the bracket position.
2 Secure Bracket onto
the Work Sharp 3000:
A Insert the bracket fasteners (1/4” 20 Nuts) into
provided T-Slots of the back of the WS3000 as shown.
B Slide bracket up and into the T-Slots from the bottom
until bracket stops. Tighten the two fasteners to hold
bracket in place with a 5/32” hex key.
