(14) Gouge Jig Tormek® SVS-185 Settings

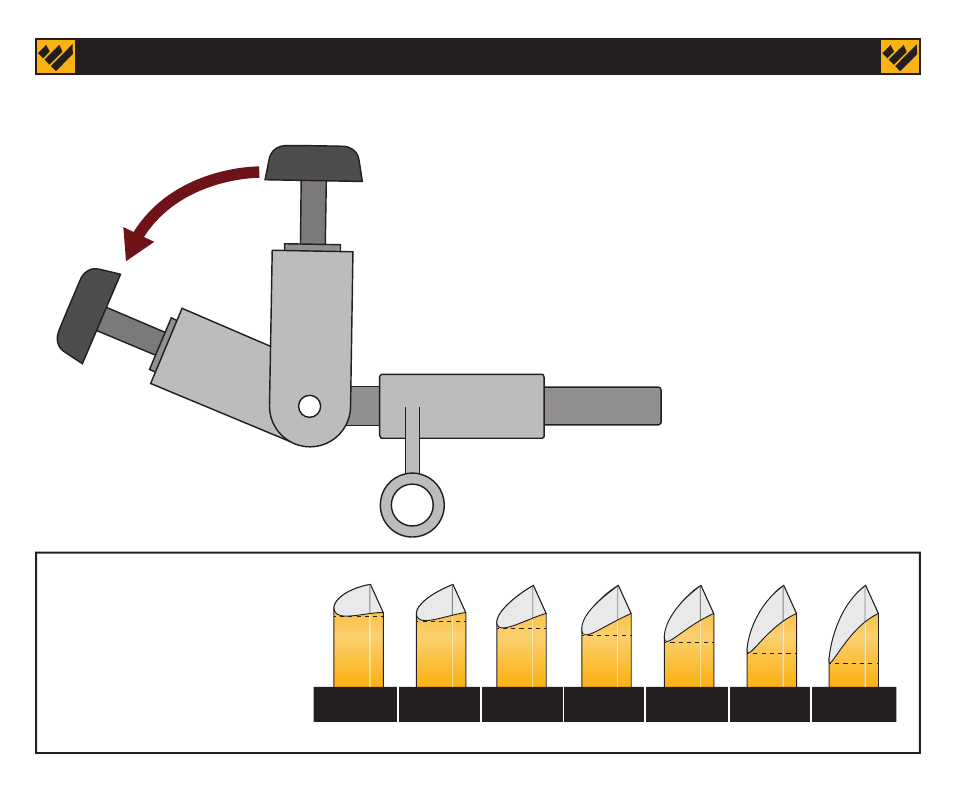

This chart shows how
changing the JS angle of the
Gouge Jig will change the
grind profile. Setting JS 0
provides little sweep back of
the cutting edge. To create a
fingernail or Ellsworth type
grind, use JS 6.
The Tormek® SVS-185 Gouge Jig is used to sharpen
bowl gouges of various sizes and profiles. This jig
can be used in 6 different Jig Settings (JS) to create
a wide range of cutting edge profiles. See chart
below for JS reference.
This jig comes complete from Tormek® with
instructions, hex key for adjustments, and labels
so you can document your set up for specific
tools.
See Gouge Jig Tips on page 17
JS 0 JS 1 JS 2 JS 3 JS 4 JS 5 JS 6
Tip: Reference Tormek® instructions for more detail on jig set up and use.
