INSTALLING THE DRYER SECTION 4
4.6-3 EMCON II (115 VOLT)
The electrical controls for the Emcon II dryers are
housed in a NEMA 4 rated fiberglass enclosure.
Reference Figure 4E to locate the power input
terminals. Access into the enclosure for wiring and
conduit can be made by carefully drilling a hole in
the bottom of the enclosure.
IMPORTANT
Do NOT wire the power supply directly to the
PLC. Wire the power supply to the input
terminals as shown in Figure 4E.
Connect the proper conduit and wiring as required
for this installation by all applicable codes.
Make the necessary connections to the power input
terminals.

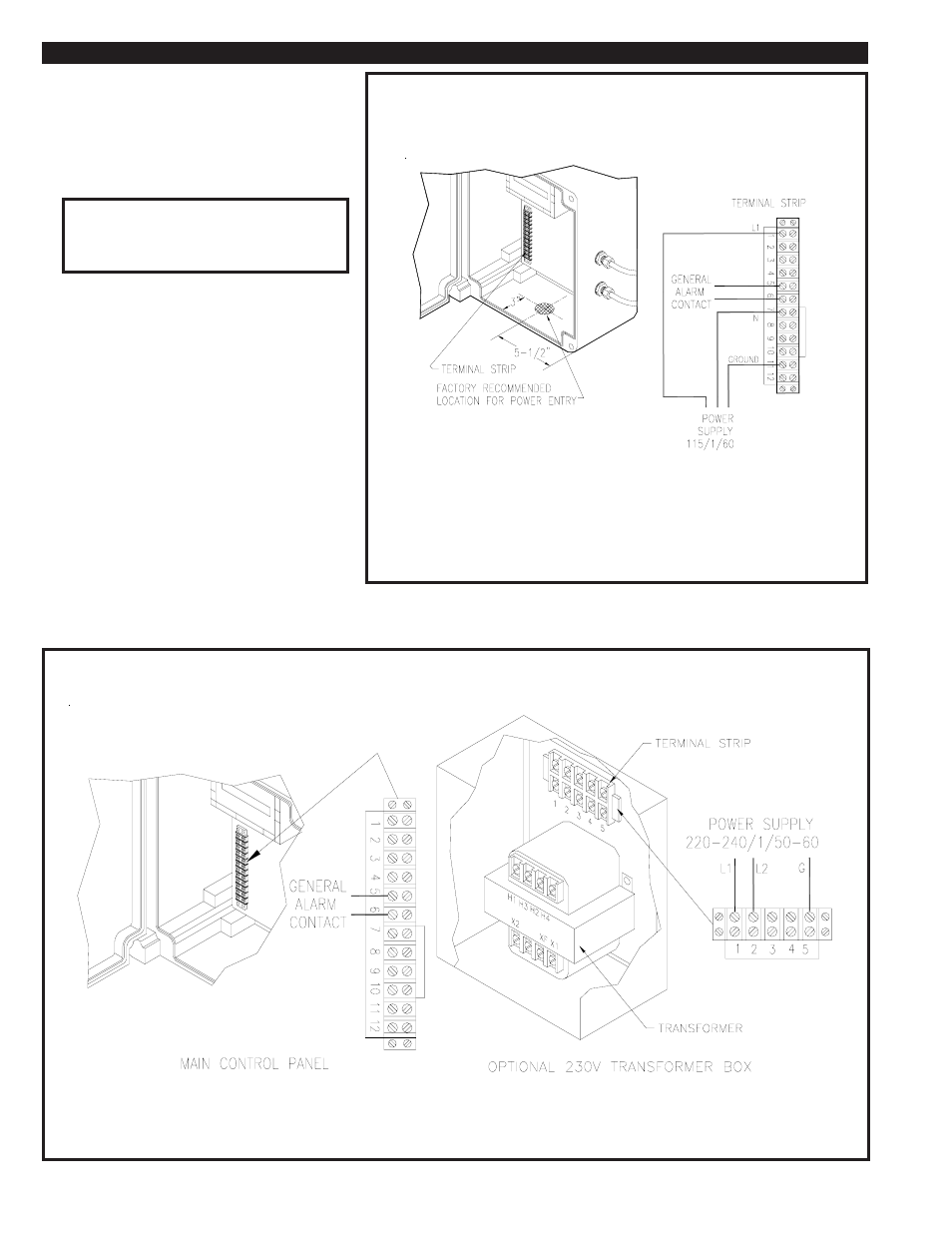

FIGURE 4E ELECTRICAL CONNECTIONS EMCON II (115 VOLT)
FIGURE 4F ELECTRICAL CONNECTIONS EMCON II (230 VOLT)
Control Power: 115V/1PH/60Hz
Max amp draw: 2 AMPS
General Alarm Contacts: 115V-230V/1PH/60Hz, 2 amps
4.6-4 EMCON II (230 VOLT)
The main electrical controls for the Emcon II dryers are
housed in a NEMA 4 rated fiberglass enclosure.
Dryers rated for 230V/1PH/60Hz are equipped with a
power transformer located in a separate enclosure on
the dryer. All main power supply (230V) connections
will be made in the transformer enclosure.
Reference Figure 4F for connection details. Connect
to the enclosure using the proper conduit and wiring as
required for this installation by all applicable codes.
General Alarm Contacts: 115V-230V/1PH/60Hz, 2 amps
