2. If paper remains on the roll, cut the
paper between the roll and the
printer with a pair of scissors as
shown in Figure 6-1. Use the FEED
button (Figure 6-2) to feed the
paper through the paper path until
all paper comes out the front of the
receipt paper chute.
3. Remove the existing paper roll or
empty spindle (as appropriate) from
the paper roll bracket, as shown in
Figures 6-3 and 6-3A.
4. Take the empty spindle and insert
it into the new paper roll, as shown
in Figure 6-4.
5. Place the new paper roll back on to
the paper bracket ensuring that the
paper feeds from the TOP of the
roll, as shown in Figures 6-5 and 6-
6.
6. Insert the edge of the paper roll into
the printer take-up slot, as shown
in Figure 6-7. The printer will
automatically grip and pull the
paper into the paper path. If the
paper feeds automatically, skip to
Step 9. If the paper does not feed
automatically, continue with Step
7.

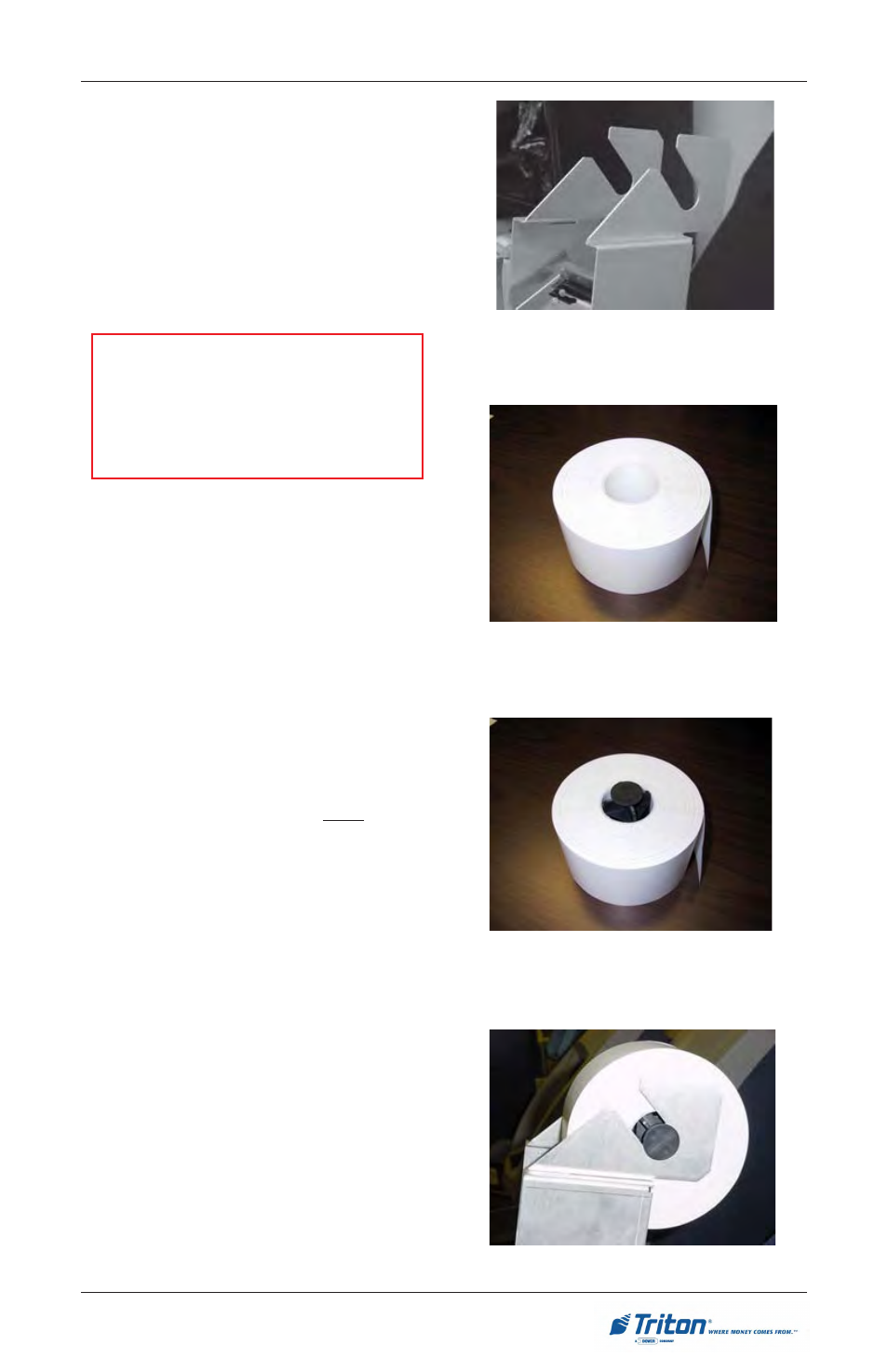

Figure 6-3. Paper roll removed.
**WARNING**
Do not pull the paper backward
through the printer. This may leave
paper fragments that can cause pa-
per jams.
Figure 6-5. Paper on bracket.
Figure 6-4. Spindle inserted.
Figure 6-3A. New paper roll.
