9 3
M
ANAGEMENT
F
UNCTIONS
F
ACTORY
D
EFAULT
: N/A
A
CCESS
I
NSTRUCTIONS
:

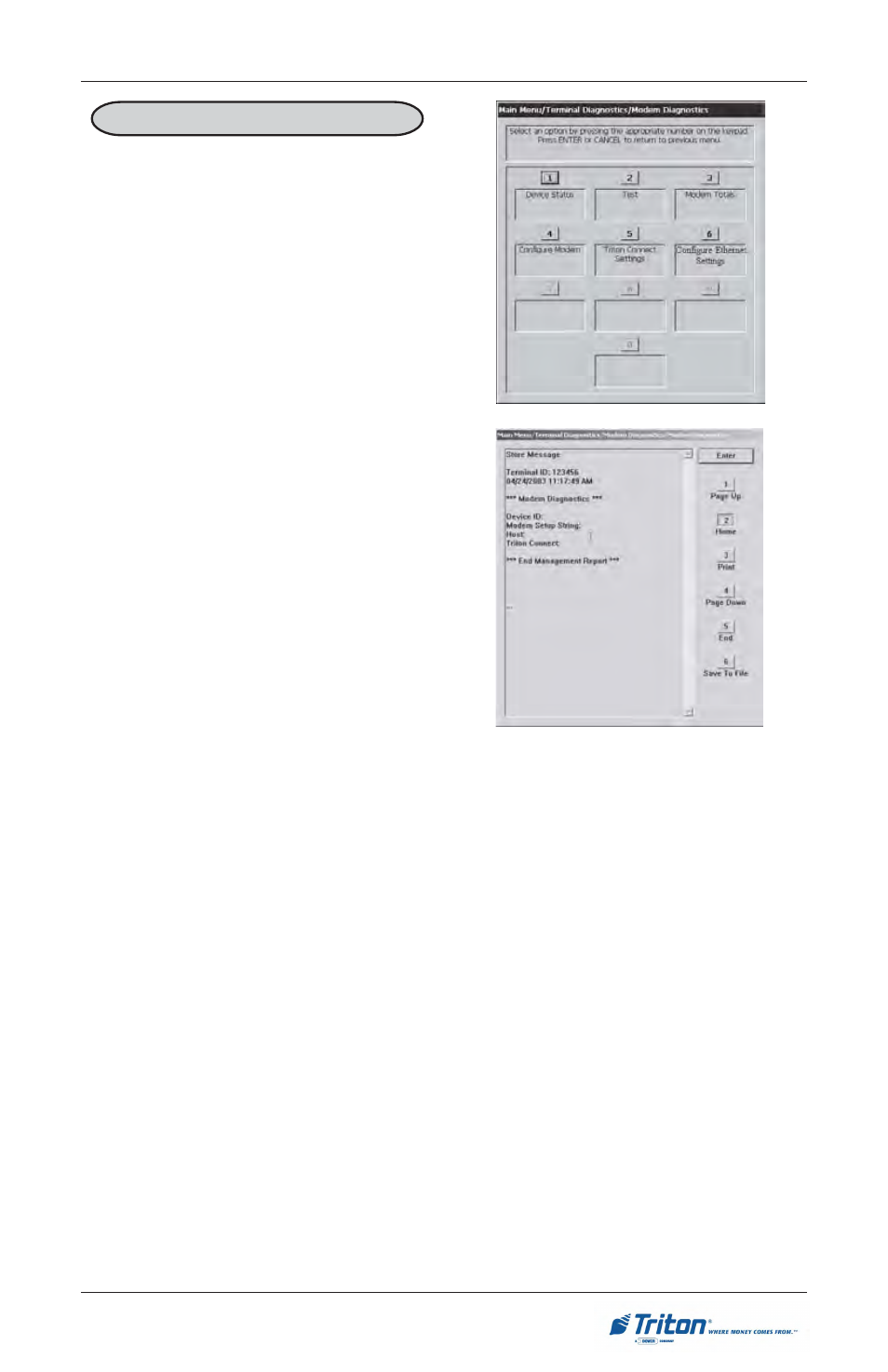

1. From the MAIN MENU screen,
select the DIAGNOSTICS option
by pressing number (2) on the
keypad.
2. Enter the MODEM/ETHERNET
diagnostics menu by pressing
number (7) on the keypad.
3. To view the DEVICE STATUS
report, press number (1) on the
keypad.
M
ODEM
/ D
EVICE
S
TATUS
1. Device Status. Displays a Management Report that shows the modem name
and current status.
2. Test. Tests the modem by dialing a number that you enter in a dialog box. A
status box appears to report the progress and results of the dial-out opera-
tion.
3. Modem Totals. Displays a Management Report that shows the number of
modem call attempts, busy signals, and aborted calls.
4. *Configure Modem*. Lets you view and configure the modem's operating
parameters.
5. *Triton Connect Settings*. Provides access to screens that will let you view
and configure the Triton Connect parameters.
6. *Configure Ethernet Settings*. Provides access to Ethernet (TCP/IP) con-
figuration parameters.
The D
EVICE
S
TATUS
displays a report that shows the current operational status of
the ATM’s modem.
The report is displayed in a Management Report dialog, which you can print to the
receipt printer or save to an external memory device.
D
ESCRIPTION
:
The following options will be available
from the M
ODEM
/ E
THERNET
screen:
(Note: * denotes service provider func-
tion)
