This section describes the basic operation of the terminal. The following topics are covered:
1. C
ONTROL P ANEL L AYOUT .
Describes the layout of the terminal’s control panel.
2. K
EYPAD
O
PERATION
.
Describes the use of the alphanumeric keypads.
3. M
ENU -B ASED O PERATION .
Gives a general overview of the terminal display interface.
4. C
USTOMER T RANSACTIONS .
Summarizes the actions involved in typical customer transactions. In
addition, the voice-enabled transactions feature is described.
The user interface of the terminal consists of the LCD screen, receipt chute, card reader, speaker, head-
phone jack (visually impaired), and 24 keys on three keypads. The Function keys are arranged in two
four-key groups, one group on either side of the LCD display. The main keypad consists of 10 alphanu-
meric keys, two arrow keys and four large control keys, all located in a 16-key group beneath the LCD
screen.
The main keypad and control keys have an integral raised Braille symbol to conform to the requirements
of the Americans with Disabilities Act (Figure 2-1).

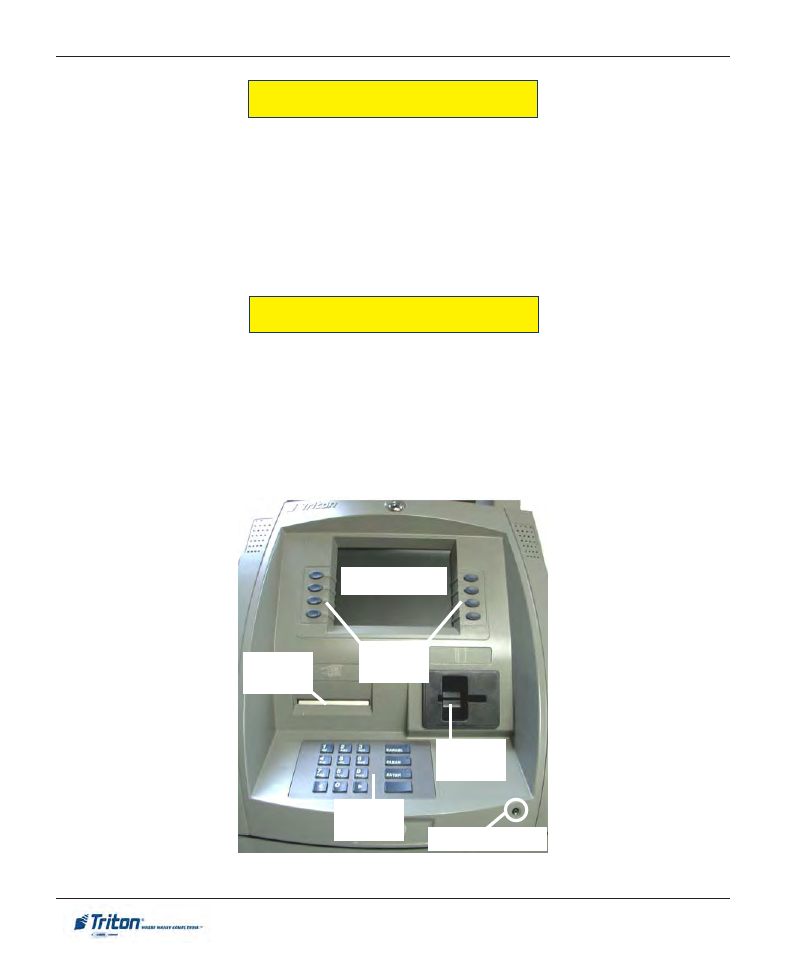

Figure 2-1. Control panel layout.
LCD screen
Function
keys
Card
reader
Receipt
chute
Main
keypad
Headphone jack
I
NTRODUCTION
C
ONTROL
P
ANEL
L
AYOUT
