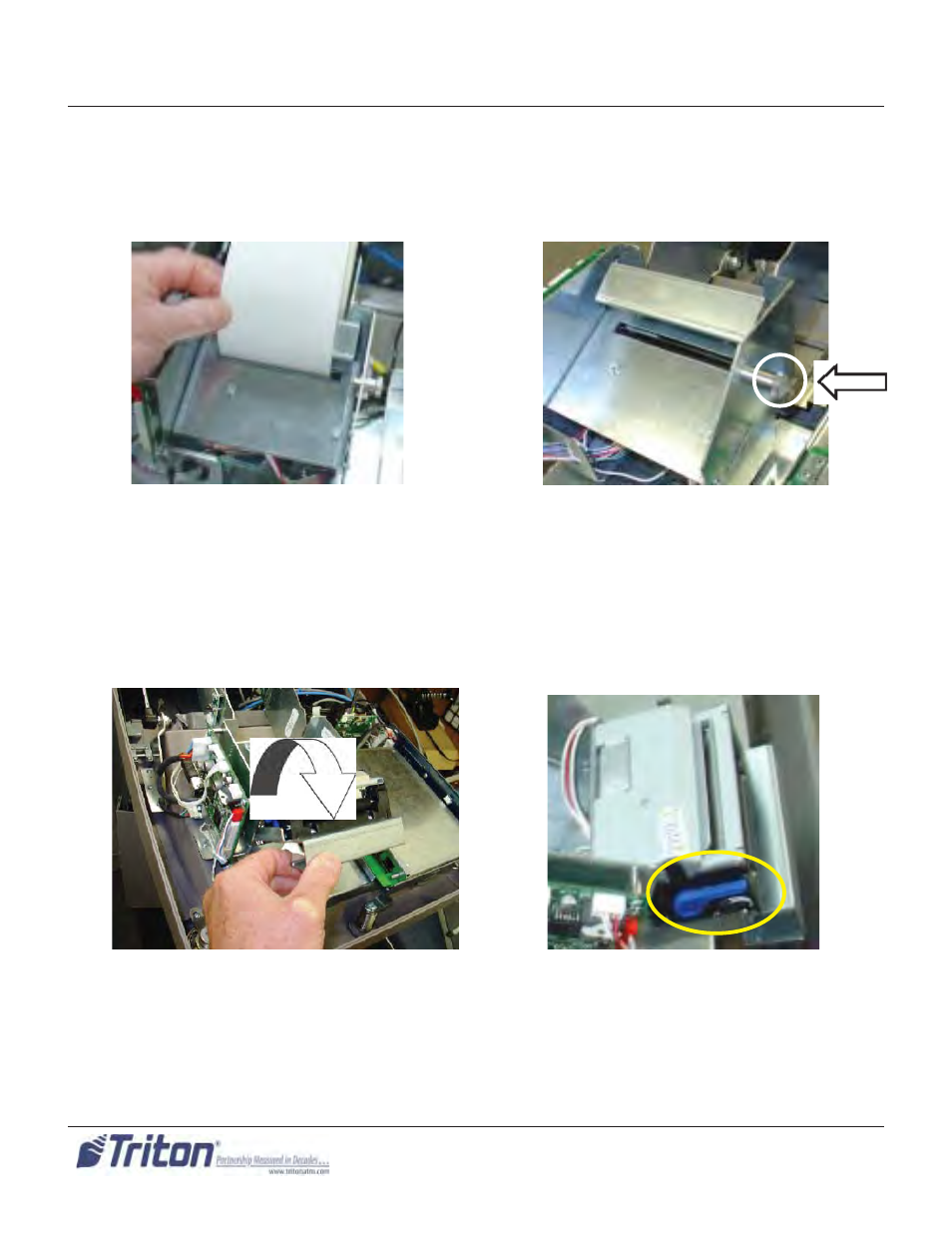

9. Rotate the printer towards the front of the unit.

Feed paper into the printer take-up slot.

Release pin location.

7. Feed the end of the paper into the printer take-up slot. The printer will activate and automatically feed

the paper through the printer and slightly out the front of the control panel.

8. If the printer does not feed automatically, open the printer assembly by pulling the release pin on the

side.

Rotate printer open.

10. Check the blue lever to ensure it’s in the correct position as shown. If it is not in the position shown,

move the lever (moves in 3 positions) to the correct position. Close the printer assembly and perform
step 7 again. Ensure the printer is secured by the release pin.

Blue tension lever (correct position).

11. Close and lock the control panel. Go to M

ANAGEMENT

UNCTIONS

> D

IAGNOSTICS

and perform a R

ESET

EST

RINTER
