8
M
ODEL
RL1600 U
SER
M
ANUAL
This section describes the basic operation of the terminal. The following topics are covered:
1. C
ONTROL
P
ANEL
L
AYOUT
. Describes the layout of the terminal’s control panel.
2. K
EYPAD
O
PERATION
. Describes the use of the alphanumeric keypads.
3. M
ENU
-B
ASED
O
PERATION
. Gives a general overview of the terminal display interface.
4. C
USTOMER
T
RANSACTIONS
. Summarizes the actions involved in typical customer transactions. In
addition, the voice-enabled transactions feature is described.
The user interface of the terminal consists of the LCD screen, receipt chute, card reader, speaker, headphone
jack (visually impaired), and 24 keys on three keypads. The Function keys are arranged in two four-key
groups, one group on either side of the LCD display. The main keypad consists of 10 alphanumeric keys,
two arrow keys and four large control keys, all located in a 16-key group beneath the LCD screen.
The main keypad and control keys have an integral raised Braille symbol to conform to the requirements
of the Americans with Disabilities Act (Figure 2-1).

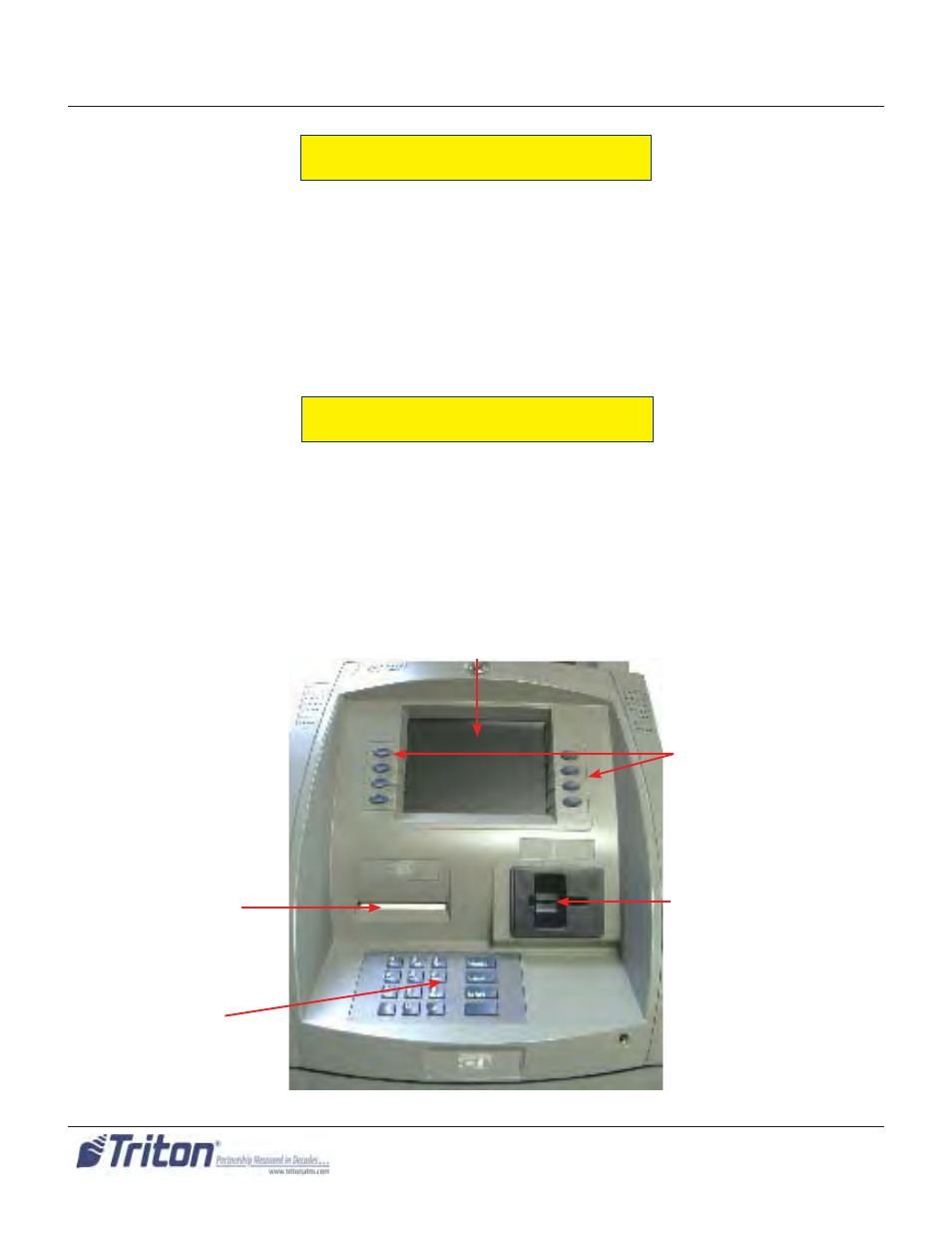

Figure 2-1. Control panel layout.
I
NTRODUCTION
C
ONTROL
P
ANEL
L
AYOUT
LCD screen
Function
keys
Card
Reader
Receipt
chute
Main
Keypad
