Triton RL1600 Installation Manual - Manual (Page 10)

10
rl1600 i
nstallation
M
anual
p
HysiCal
d
iMensions

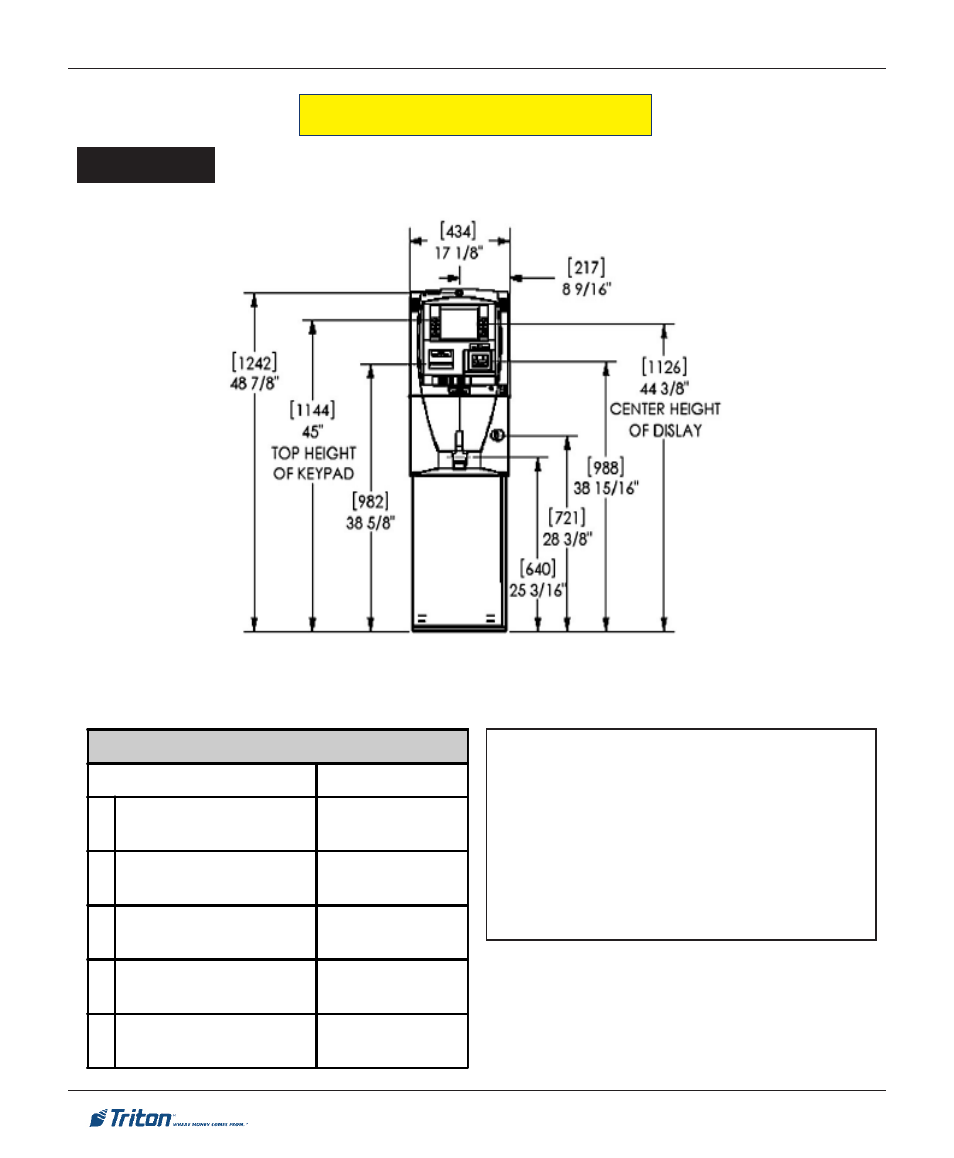

Front View
Dimensions listed comply with US Federal ADA
Guidelines. For USA installations, check for
additional guidance. For non-USA installa-
tions, check regulations relating to the country
of install.
Note:
Dimensions shown in inches and [millimeters]
Customer Access Dimensions
Feature Height
1 Top Function Key
45"
[1144 mm]
2
#5 Key
(Main Keypad)
36"
[914 mm]
3 Card Reader
38 - 15/16"
[988 mm]
4 Receipt Printer
38 - 5/8"
[982 mm)
5 Bill Tray
25 - 3/16"
[640 mm]
