TYPICAl INSTAllATIONS ANd EquIPMENT lOCATION

Locate Water conditioning equipment correctLy:

1. Select the location of your water softener with care.

Various conditions which contribute to proper location
are as follows:

2. Locate as close as possible to water supply source.
3. Locate as close as possible to a floor or laundry tub drain.

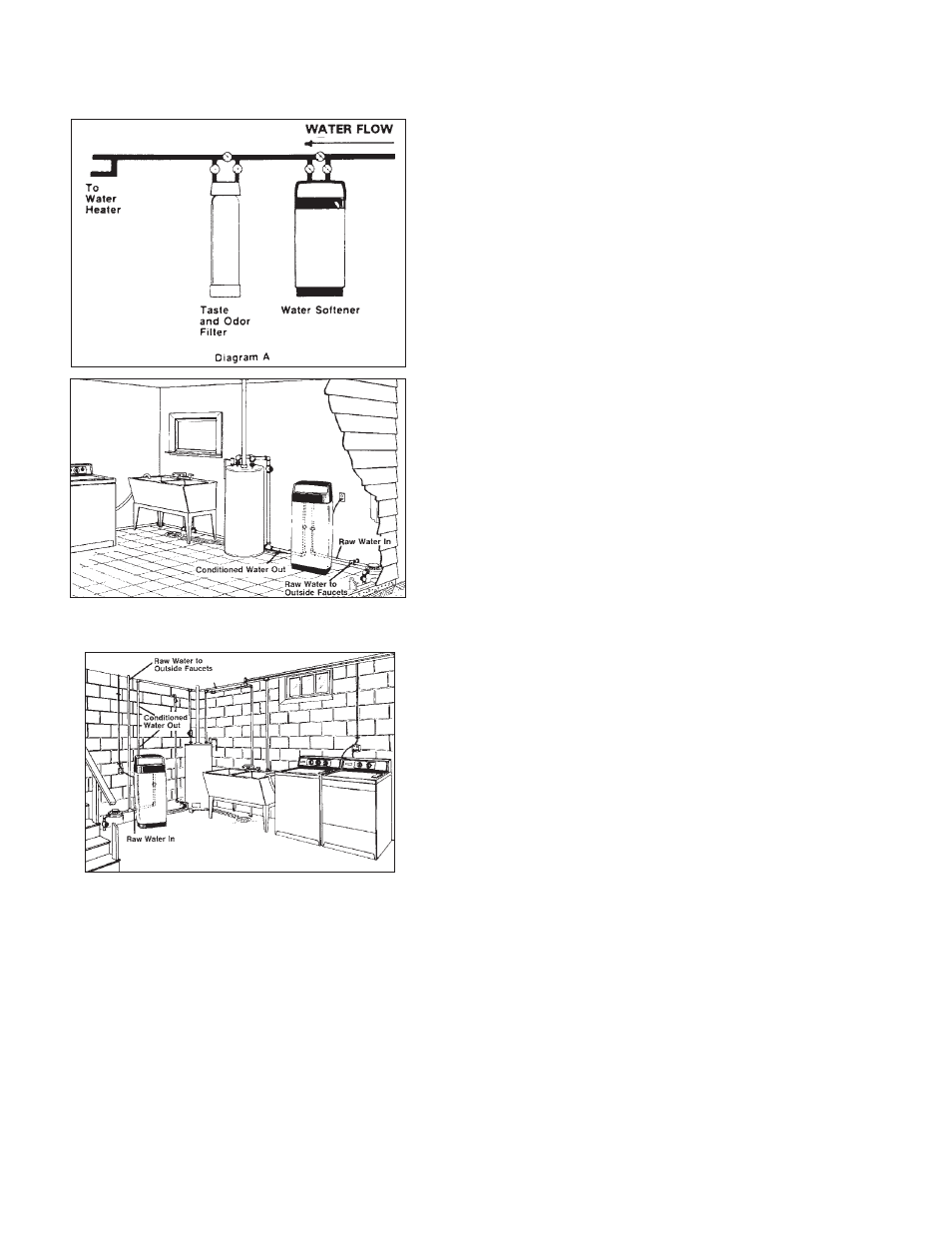

4. Locate unit in correct relationship to other water condi-

tioning equipment, if required. (See Diagram A. for well
water applications or Diagrams B for city water applica-
tions.)

5. Select location where floor is level. If floor is rough and/or

uneven, you can level by placing cabinet or tanks on 3/4”
plywood, and shim to level as needed.

6. Locate the softener in the supply line BEFORE the water

heater. Temperatures above 100°F (38°C) will damage the
softener and void the factory warranty.

Install water conditioner in an area protected from flooding,
rain, direct sunlight, dust, snow and freezing. The warranty
does not cover damage incurred as a result of exposure to the
weather.
7. Allow sufficient space around the installation for easy

servicing.

8. Provide a non-switched 110/120V, 60Hz power source for

the control valve.

diagram B - typical basement installation uses over-

head piping with floor or wash tub drain outlet.

diagram B - typical first floor installation for utility

room or breezeway, where floor drain exists.
