S11TS32DR8
Control Valve Programming and Use Instructions
FOLLOW THE INSTRUCTIONS STEP BY STEP!
DO NOT DEPRESS THE BUTTONS OUT OF SEQUENCE!
Parameter
Display
Data
Display
PM
Indicator
Flow Indicator
x1000 Indicator
Service
Icon
Programming
Icon
Extra Cycle
Button
Up
Button
Down
Button
Error/
Information
Icon
IL1030

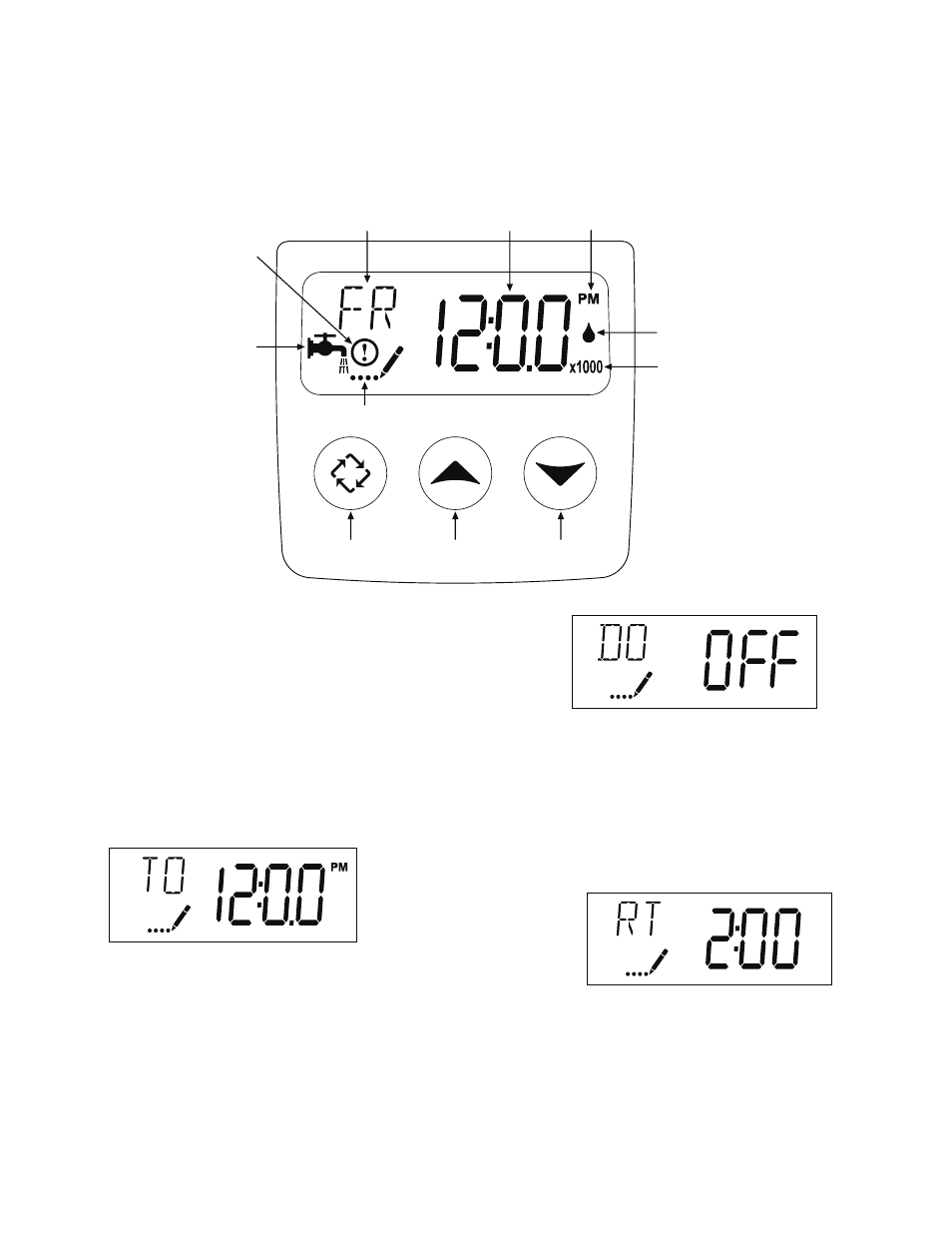

Figure 1
Normal display
alternates between
time of day and gallons
of water remaining
until regeneration
A. SETTING THE CURRENT TIME OF DAY
1. Plug unit into a 115 volt grounded outlet that is
independent from a wall switch or pull chain. When
unit is plugged in, display should activate.
2. Press and hold either the Up or Down buttons until
the programming icon replaces the service icon and
parameter display reads TD.
3. Adjust the displayed time with the Up and Down
buttons. Note the PM indicator on the display.
4. When the desired time is set, press the Extra Cycle
button to resume normal operation. The unit will
also return to normal operation after 5 seconds if no
buttons are pressed.
IL1031
B. SETTING DAY OVERRIDE, REGENERATION TIME
AND FEEDWATER HARDNESS
1. Press the Up and Down buttons for five seconds while
in service, and the time of day is NOT set to 12:01 PM.
2. Use this display to verify the Day Override. This option
setting is identified by “DO” in the upper left hand
corner of the screen. The setting was factory preset to
display “OFF” for all water softener units and “3” for
S11TS32DR8 unit. If required, adjust valve by pressing
the up and down buttons.
IL1032
3. Press the Extra Cycle button. Use this display to
adjust the Regeneration Time. This option setting is
identified by “RT” in the upper left hand corner of
the screen. The setting was factory set for 2:00 AM.
The regeneration time can be adjusted by pressing
the up or down buttons. Note the PM indicator on the
display. Regeneration time is when the unit will begin
a regeneration cycle. This should be set to a time of
minimum water usage.
IL1033
4. Press the Extra Cycle button. Use this display to
adjust the Feed Water Hardness. This option setting is
identified by “H” in the upper left hand corner of the
screen. This value is your water hardness in grains per
gallon from your water analysis form.
