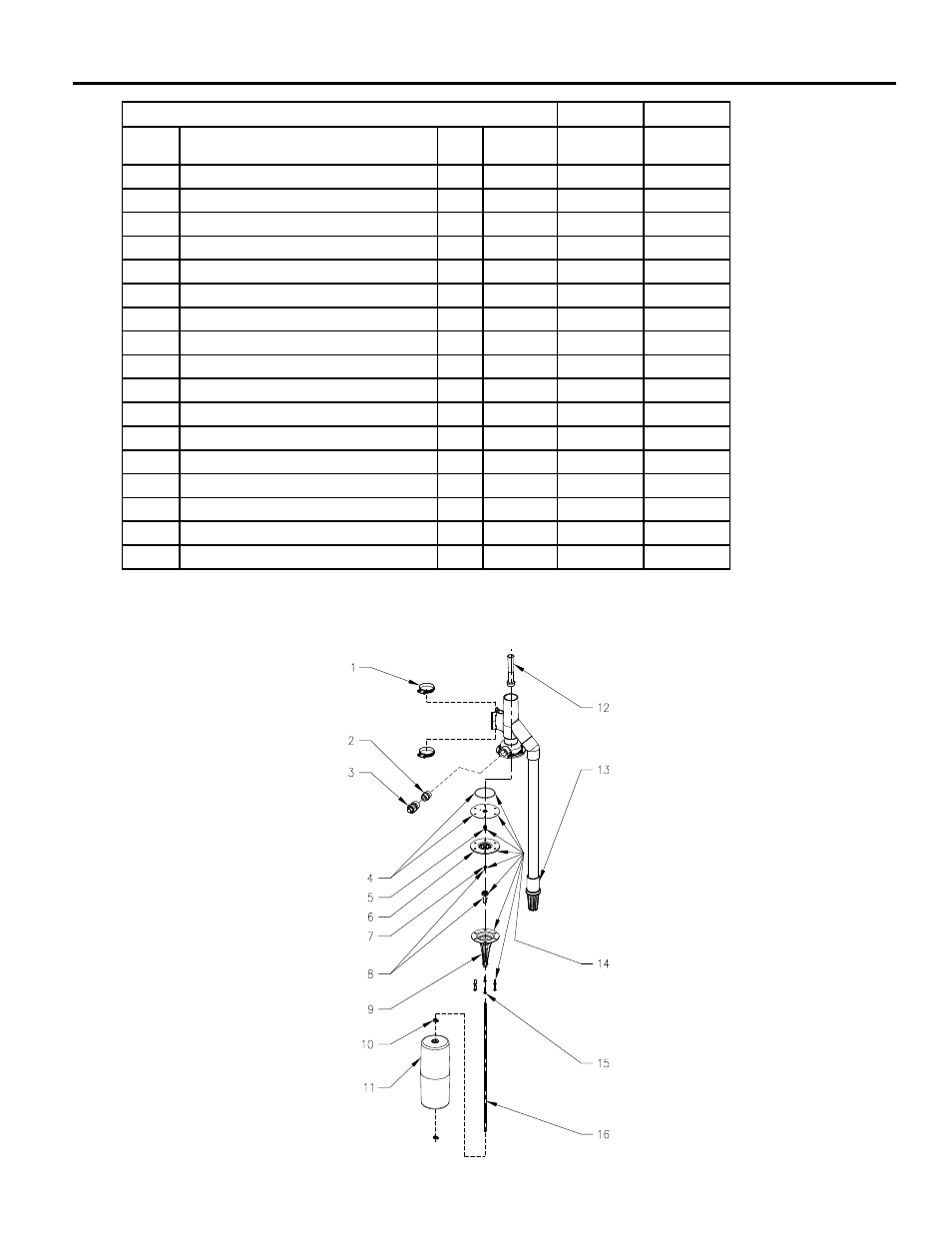

Illustrated Parts Breakdown
HOMEGUARD SERVICE PARTS - MODEL 1503
1503-A 1503-B
ITEM DESCRIPTION
QTY NOTES 11/10 thru
05/11
06/11 thru
Current
1
Clamps
2
*
001766
001766
2
Backflow valve assembly
1
018587
018587
3
Sharkbite fitting
1
018584
018584
4
Diaphragm and O-ring
1
*
150553
150553
5
Plunger assembly
1
*
018589
018589
6
Nozzle seat
1
018557
151713
7
Spring
1
*
018564
018564
8
Float rod magnet guide assembly
1
150084
150084
9
Float rod guide
1
150741
150741
10
Float stop assembly
2
*
054085
054085
11
Float
1
018567
018567
12
Venturi
1
4C5532
4C5532
13
Foot valve
1
**
150260
150260
14
Valve assemby
1
150101
150101
15
Screws
6
*
001885
001855
16
Float rod
1
018583
018583
*
Rebuild kit
1
150554
150554
* Items included in rebuild kit.
** Foot valve will need to be cut off as close to top of valve as possible and new one glued in place.
