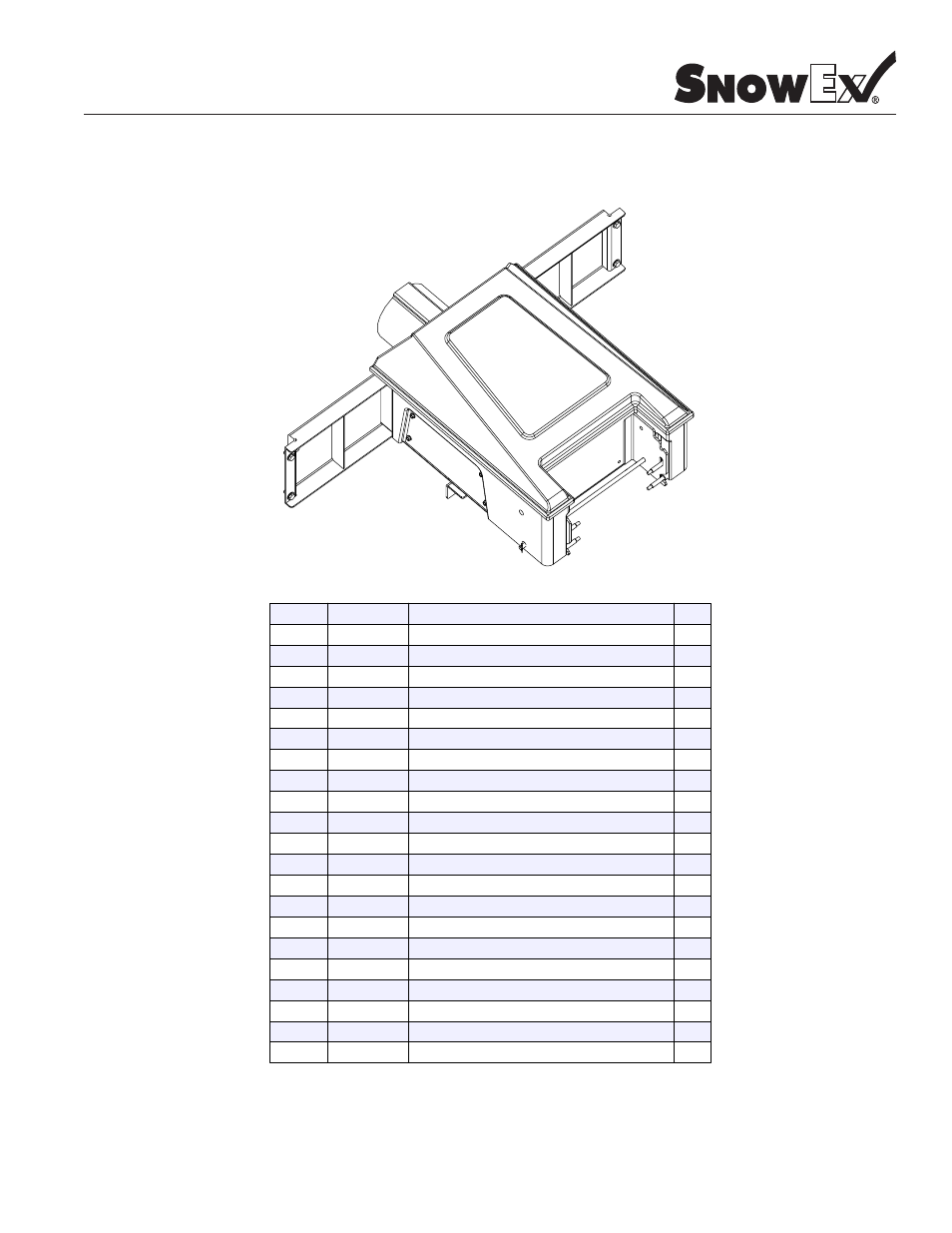

Auger Extension Assembly Parts Breakdown
Model # SP-9800X
BOM ID Description Description Qty.
1 D4115 Bolt | 1/2"-13 X 1" Hex Head Zinc 2
2 D4116 Bolt | 1/2"-13 X 1-1/2" Hex Head Zinc 2
3 D4119 Washer | 1/2" Flat USS Zinc 4
4 D4120 Nut | 1/2"-13 Nylox Zinc 2
5 D4135 Hair Pin Cotter | .093 X 2-3/8" Zinc 1
6 D5382 Bearing | 1-1/4" Locking Collar 1
7 D5535 Nut | 1/2"-13 Serrated Flange Zinc 10
8 D6132 Bolt | 1/4"-20 X 3/4" Serr. Flange Stainless 4
9 D6158 Nut | #10-32 Nylox Zinc 2
10 D6159 Bolt | #10-32 X 2" Hex Head MS Stainless 2
11 D6528 Bolt | 1/2"-13 X 1" Serrated Hex Zinc 10
12 F50366 Bent Pin | 1/2" X 25-1/2" 1
13 F50367 Auger Discharge Tube 1
14 F50368 Auger Extension Cover 1
15 F50372 Rear Extension Weldment | 9800 1
16 F50393 Spinner Drive Mount Assembly 1
17 F50407 Bolt | 1/2" X 2" Shoulder Stainless 4
18 F50465 Rear Stop Bracket | X Series 1
19 F50488 Plastic Power Module Box 1
20 F50489 Plastic Power Module Cover 1
21 F50587 Bolt | 5/16"-18 X 1" Serrated Flange 8
