© TrynEx International 2012 (REV B) F50735 20

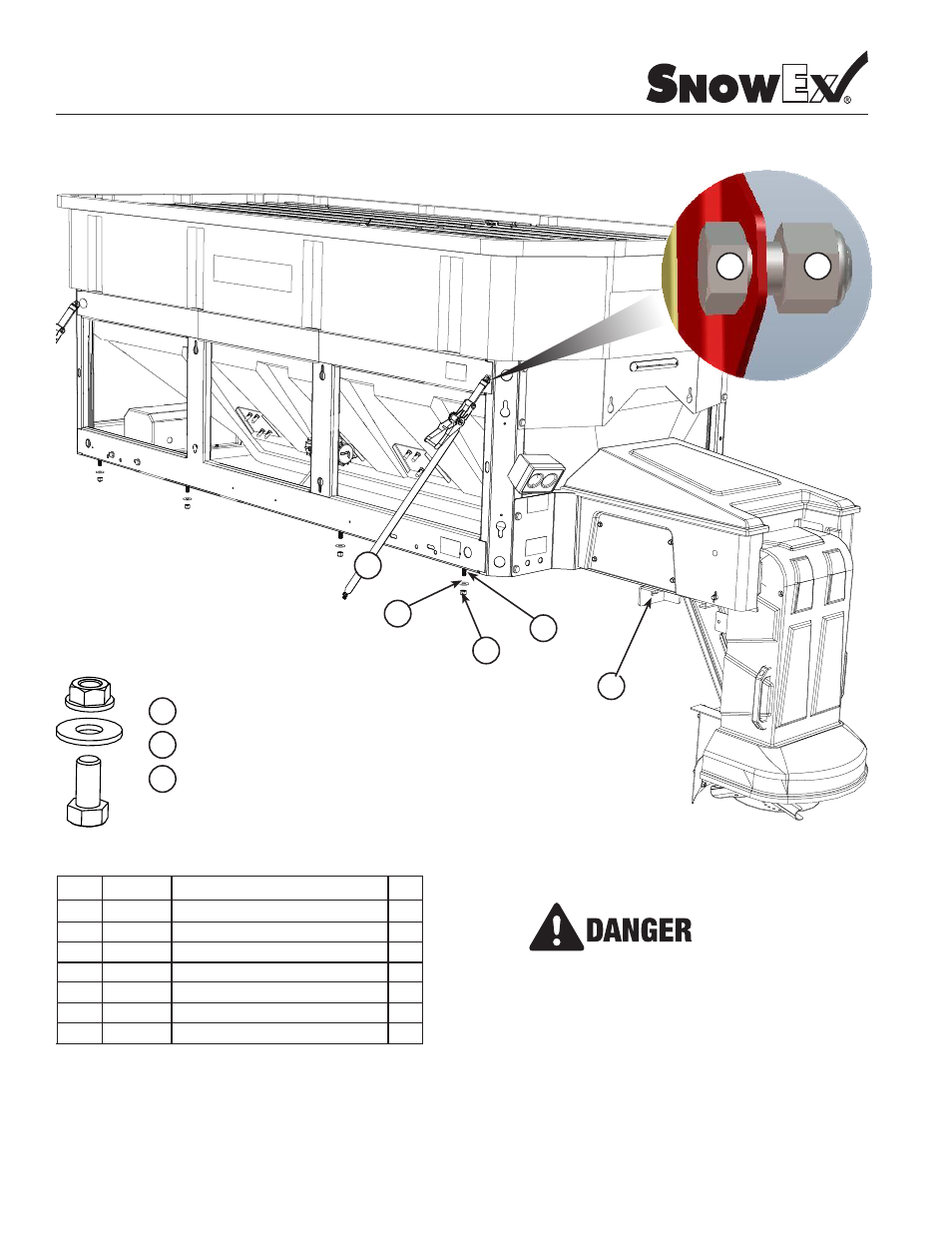

Mounting System Diagrams
Model # SP-9800X
Rear stop bar, ratchet straps and mount kit must always
be in place. All mounting systems work together; none of
them should be used exclusive of the other methods. Do not
remove unless servicing spreader or removing the spreader
from vehicle. Check straps and hardware before each use,
making sure spreader is completely stable.
Key Part No. Description Qty.
1 D4116 Bolt | 1/2”-13 X 1-1/2” 10
2 D4119 Washer | 1/2” Flat 10
3 D4120 Nut | 1/2”-13 Nylox 14
4 F50465 Rear Stop Bracket 1
5 D4115 Bolt | 1/2”-13 X 1” 6
6 D5535 Nut | 1/2”-13 Serrated Flange 2
7 F50600 X-Series Ratchet Straps (4PK) 1
3
4
1
2
5
6
2
}
Used to mount F50465
to Auger Extension
Weldment. (See p. 32)
5 3
7
Ratchet Strap Hardware
