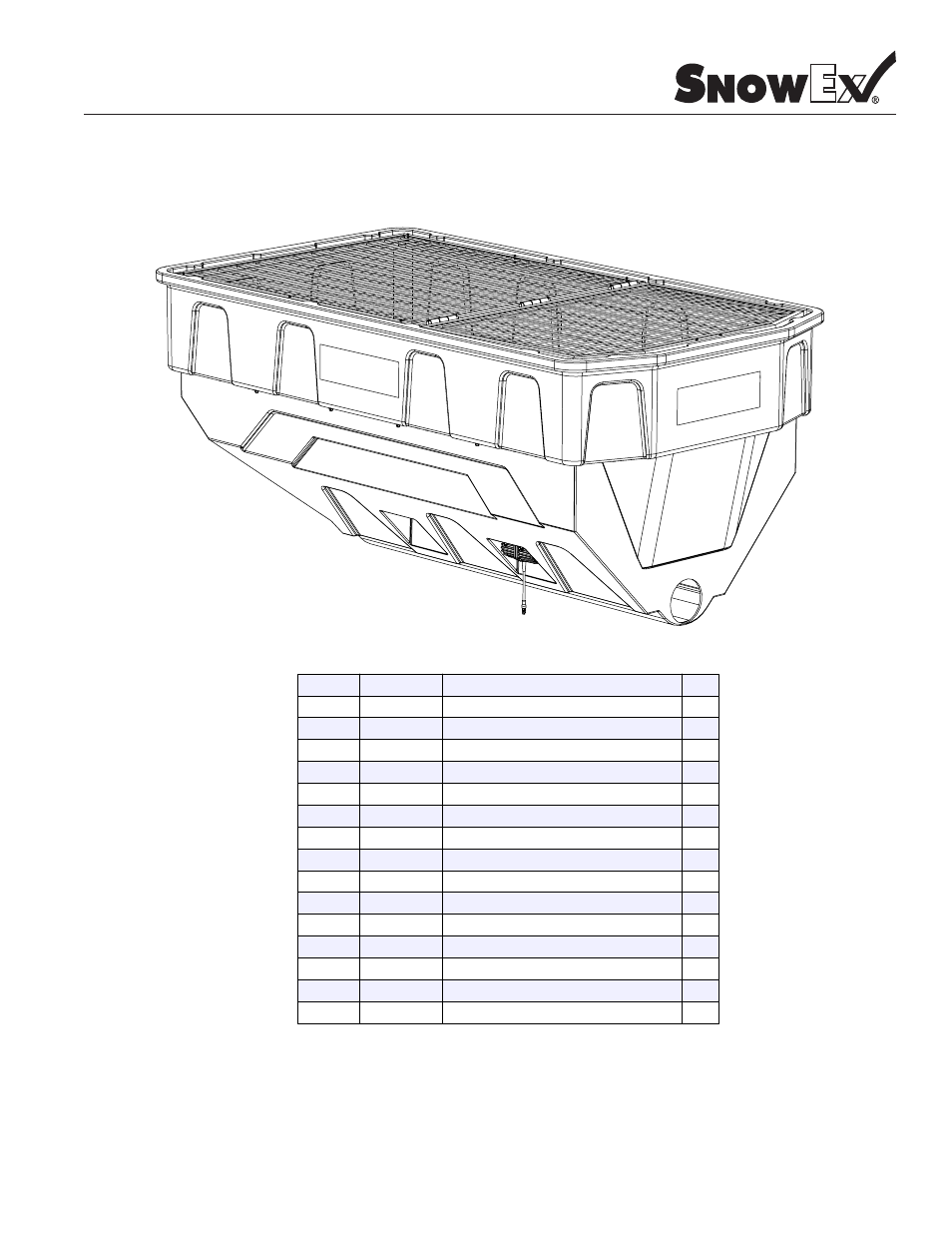

Hopper Assembly Parts Breakdown
Model # SP-9800X
BOM ID Description Description Qty.
1 D4119 Washer | 1/2" Flat USS Zinc 3
2 D4120 Nut | 1/2"-13 Nylox Zinc 3
3 D4121 Bolt | 3/8"-16 X 1" Hex Head Zinc 8
4 D4124 Nut | 3/8"-16 Nylox Zinc 4
5 D4125 Washer | 3/8" Flat USS Zinc 16
6 D5921 Spring Pin | 3/16" X 1-1/4" Zinc 6
7 D6160 Bolt | 3/8"-16 X 2" Hex Head Zinc 4
8 D6584 Nut | 3/8"-16 Serrated Flange Zinc 8
9 D6899 Vibrator | DC 400 1
10 F50298 Hopper | 6.0 Cu. Yd. Yellow 1
11 F50375 Inverted V | 9800 Series 1
12 F50400 Screen Pin | 9800 Series 3
13 F50401 Top Screen | 58.5" X 66" Front 1
14 F50402 Top Screen | 58.5" X 44.5" Rear 1
15 F50572 Screw | 1/4"-20 X 2" Hex Head 8
