Page 27
27
© TrynEx International 2012 (REV B) F50735

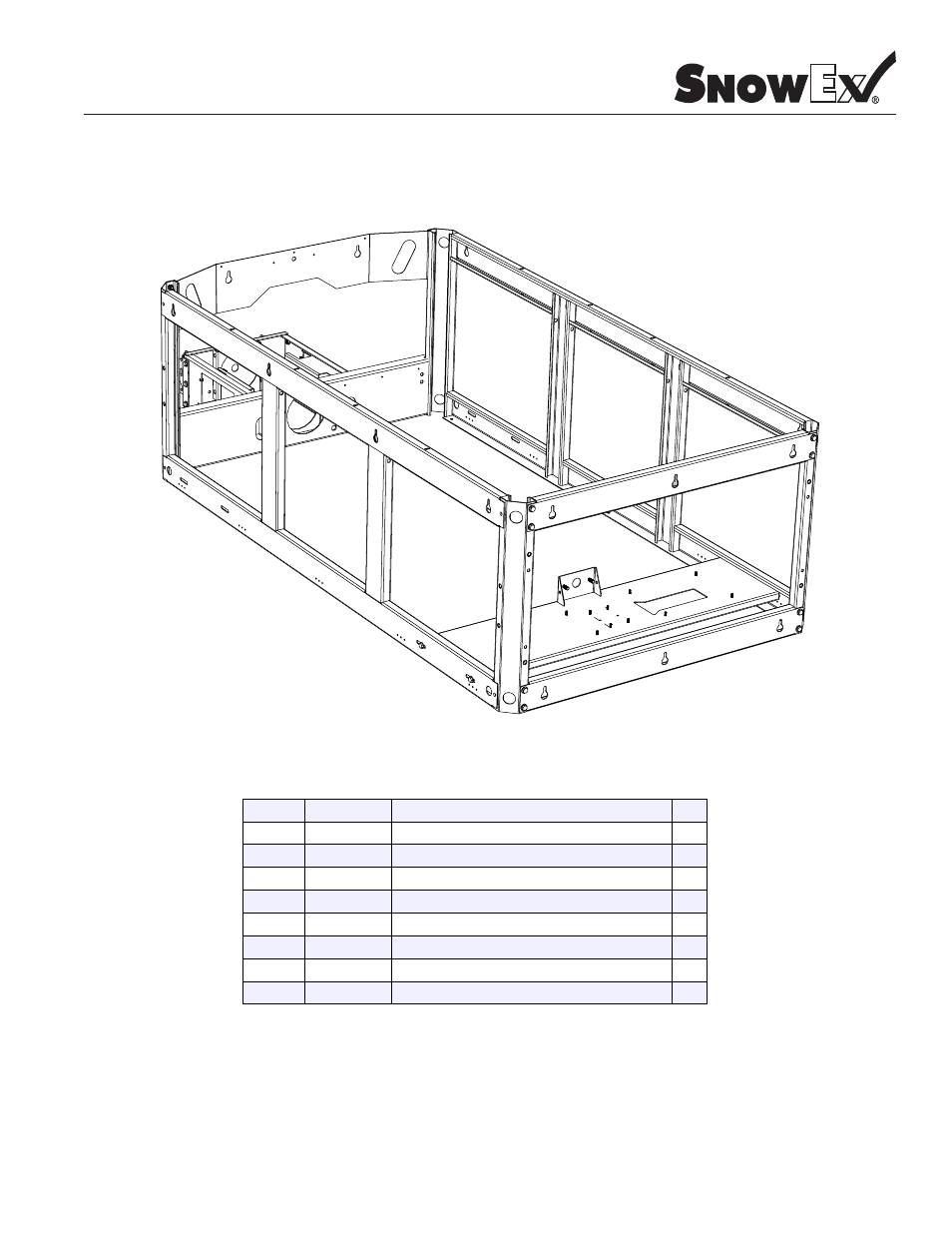

Frame Assembly Parts Breakdown
Model # SP-9800X
BOM ID Description
Description
Qty.
1
D5535
Nut | 1/2"-13 Serrated Flange Zinc
6
2
D6528
Bolt | 1/2"-13 X 1" Serrated Hex Zinc
26
3
F50372
Rear Extension Weldment | 9800
1
4
F50374
Auger Drive Mounting Plate | 9800 Series
1
5
F50391
Rear Apron | 9800 Series
1
6
F50393
Spinner Drive Mount Assembly
1
7
F50395
Side Frame | 9800 Series
2
8
F50398
Front Facia | 9800 Series
2
