SnowEx SP-9800X - Manual (Page 29)

29 © TrynEx International 2012 (REV B) F50735

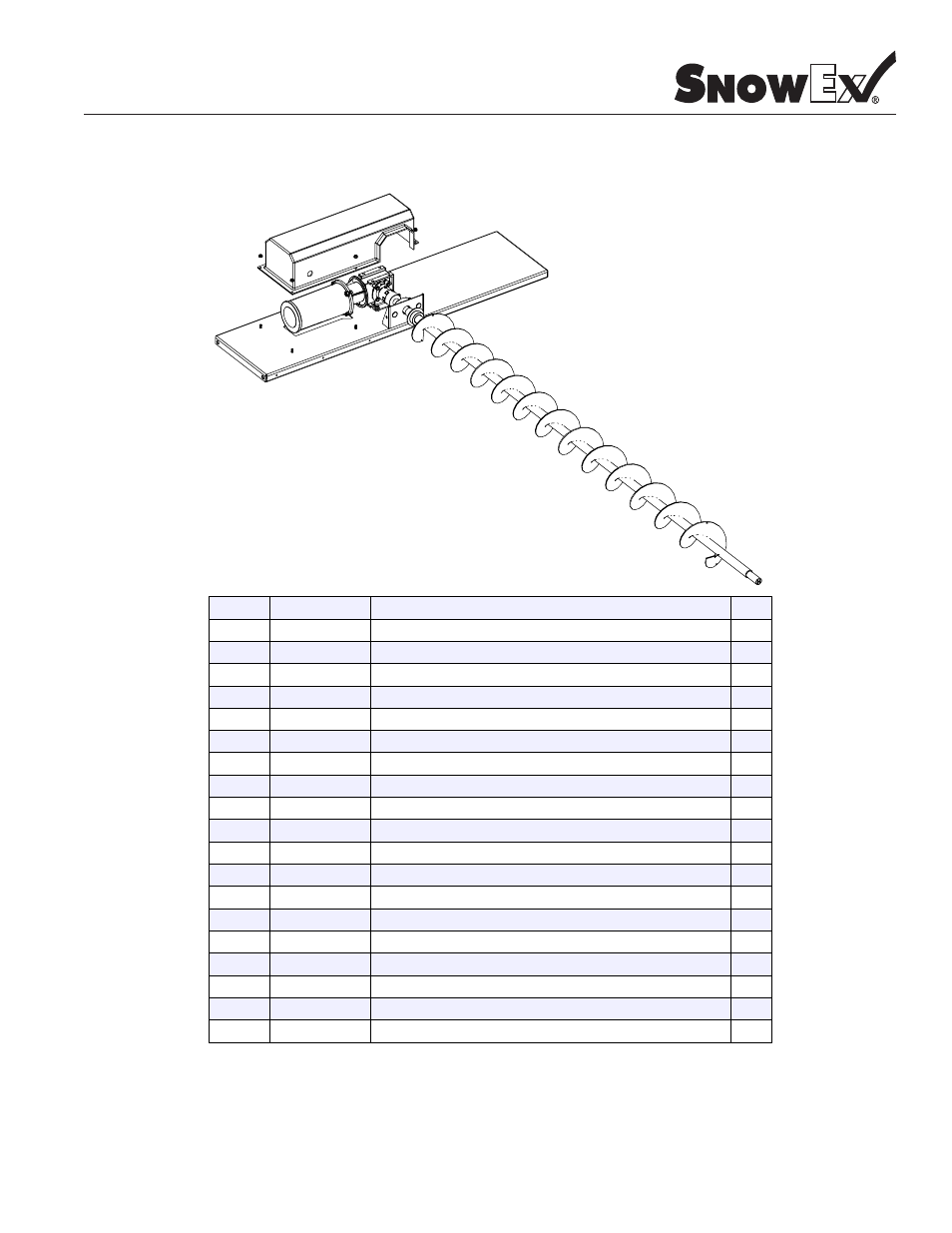

Auger Drive Assembly Parts Breakdown
Model # SP-9800X
BOM ID Description Description Qty.
1 D5382 Bearing | 2 Bolt Flange 1-1/4" Eccentric Locking Collar 1
2 D5535 Nut | 1/2"-13 Serrated Flange Zinc 2
3 D5706 Nut | 5/16"-18 Serrated Flange Zinc 6
4 D5753 Bolt | M8-1.25 X 16 MM Flange Zinc 8
5 D6138 Nut | 5/16"-18 Nylox Zinc 4
6 D6165 Washer | 5/16" Flat USS Zinc 4
7 D6452 Bolt | 3/8"-16 X 1" Serrated Flange Type F Zinc 4
8 D6752 Transmission Support Bracket 2
9 D6868 Auger Motor Cover 1
10 D6872 Motor | 3/4HP 1750RPM 1
11 D6873 Keystock | 3/16" X 1-1/4" Plain 1
12 D6894 Transmission | 78.17:1 Bevel Helical 1
13 D7162 Set Screw | 5/16"-18 X 3/4" Square Head Plain 2
14 F50247 Auger | 7" X 114" X 6-8" 1
15 F50374 Auger Drive Mounting Plate | 9800 Series 1
16 F50509 Flat Washer | 1-1/2" Zinc 1
17 F50510 Shaft Collar | 1-9/16" W/Set Screw Zinc 1
18 F50513 Jaw-Coupling Hub | L100 3/4" Sintered Iron 2
19 F50514 Jaw-Coupling Spider | L100 Urethane 1
