Assembly Instructions
30x40x15 Round Style Portable Building With Single Door
6
Version 2.0
Please DO NOT return unit to store or dealer. For all questions or shortages please contact
Customer Service at: 800-447-7079 or 203-877-7070

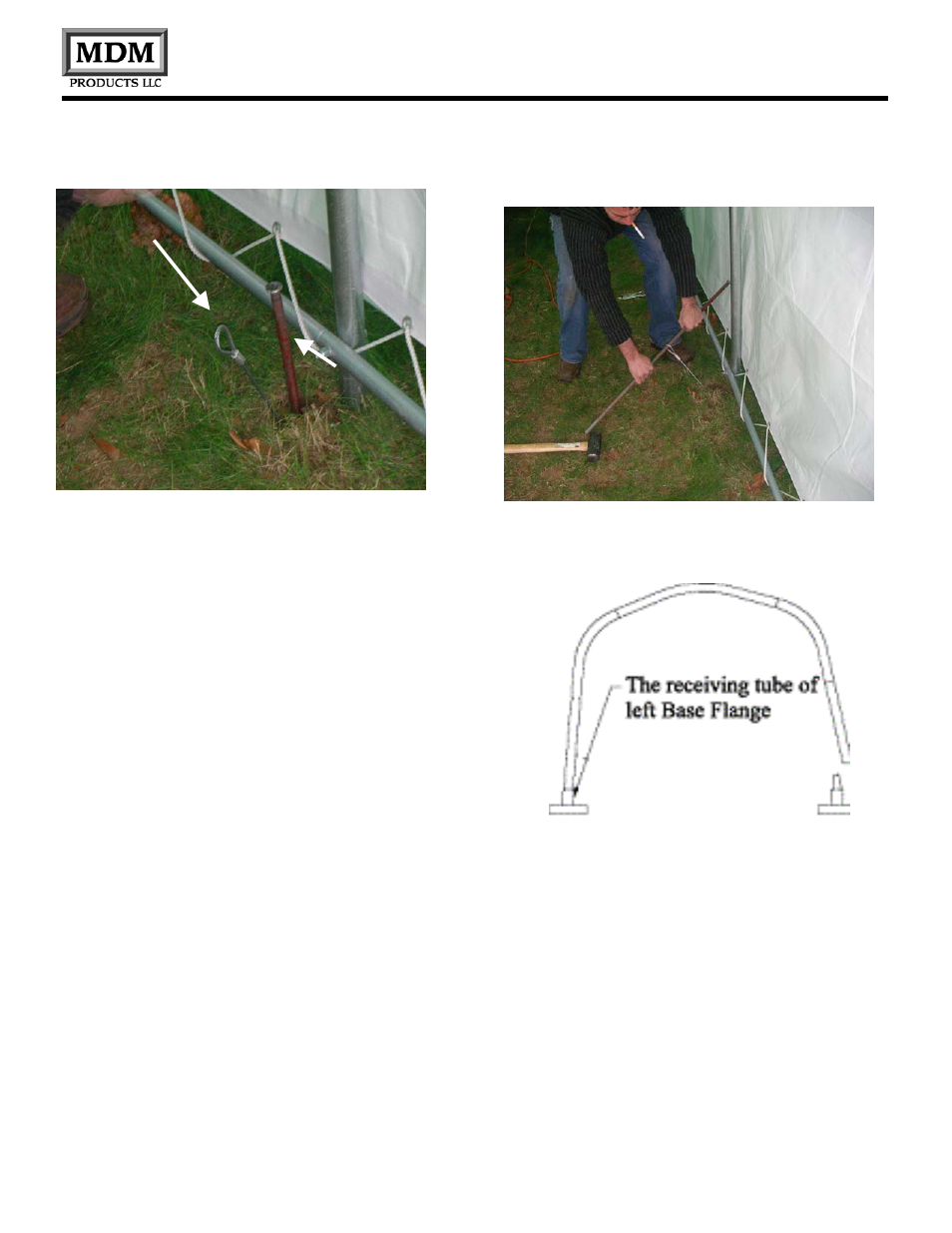

EARTH ANCHOR STEP 2
Place the Drive Rod through the loop in the anchor
lanyard. Pull upward to set anchor head into the ground.
EARTH ANCHOR STEP 3
Slip one side of the U-bolt (22) through the eyelet at the
end of the anchor cable. Attach the cable to the base
flange socket with the U-bolt and tighten. Ensure there is
no slack in the cable. Slack can be removed by wrapping
the cable around the base flange upright socket.
Use Carriage Bolts with Washers and Nuts through pre-
drilled holes in frame members. Refer to detail drawing
for correct hardware. Be certain to insert carriage bolts
from the outside into the interior of the unit, with the
washers and nuts on the inside of the frame. Do not
tighten down the nuts completely.
ERECTING ARCHES
Step #4 – Combining Arches Into Frame
Begin frame assembly by erecting Front Arch into Front
Corner Base Flanges. Place left frame sidewall tubing
into the upright tube socket into the Left Base flange.
Place 10 mm x 75 mm Bolt (24A) through base flange
socket and arch sidewall tube hole.
In order to insert Right Sidewall Tube into Right Front
Corner Flange, it is necessary to support arch on left
side to prevent movement. Position Right Sidewall Tube
over Right Corner Base Flange. It will be necessary to
push arch assembly inward to fit into Right Base Flange
Upright Socket. This tension is normal, and will help
rigidity of completed frame assembly.
Anchor Loop
Drive
Rod
