Assembly Instructions Round Style 30x40x15
Industrial Round Style Building
14
Version 2.0
Please DO NOT return unit to store or dealer. For all questions or shortages please contact
Customer Service at: 800-447-7079 or 203-877-7070

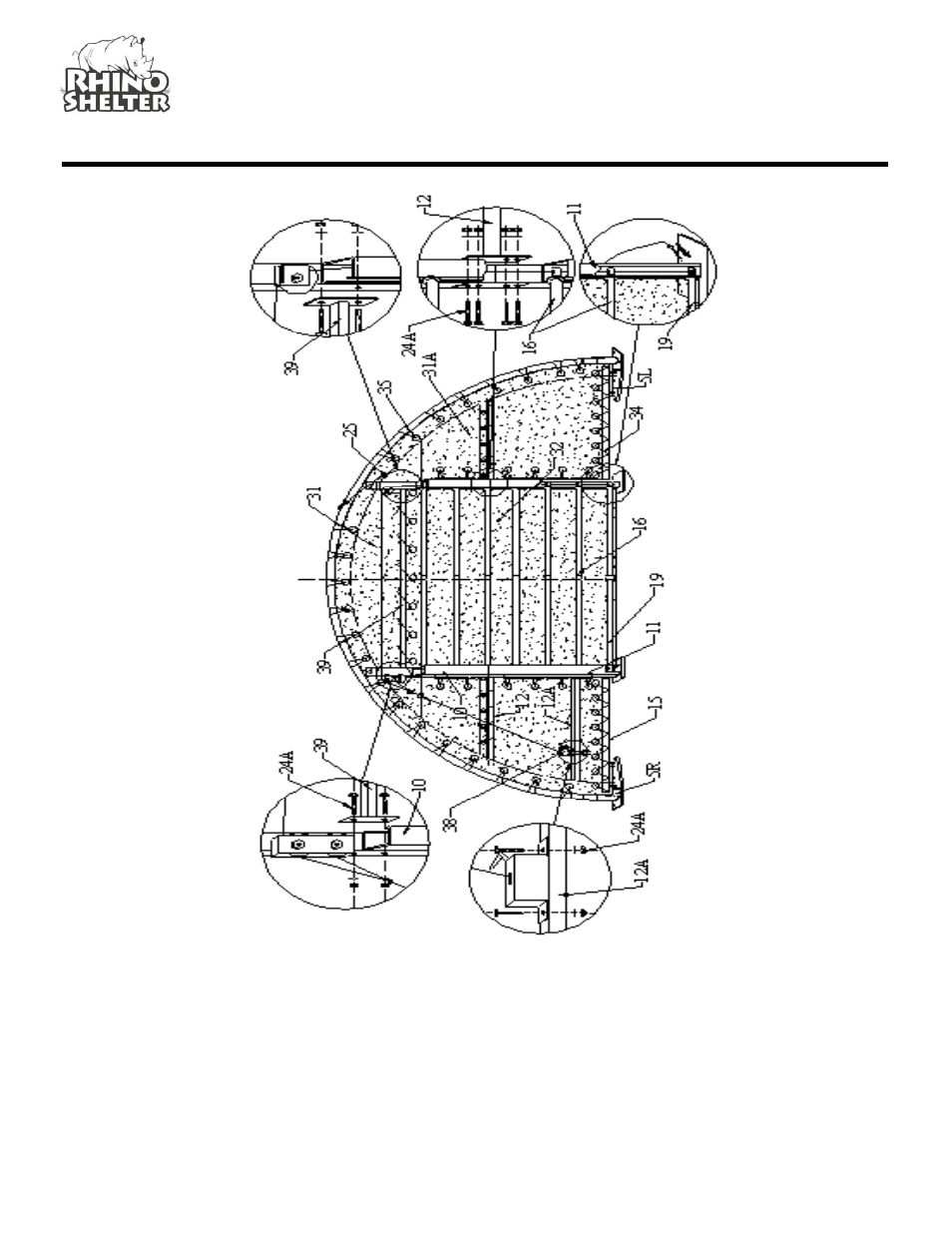

Mechanical Door Installation Steps-
1. Install Main Door Pulleys (left and right) over the
Top of the Door on each side of the Door Beam
(39).
2. Next mount the Winch Mechanism to the End
panel Lower Beam (12A). Mechanism should
line up with pocket in Fabric End Side Panel.
Use 10 mm x 75 mm Bolts and Nuts (24A) to
secure the Winch Assembly to End panel Lower
Beam (12A).
