MWN-WAPR150Nv2
38

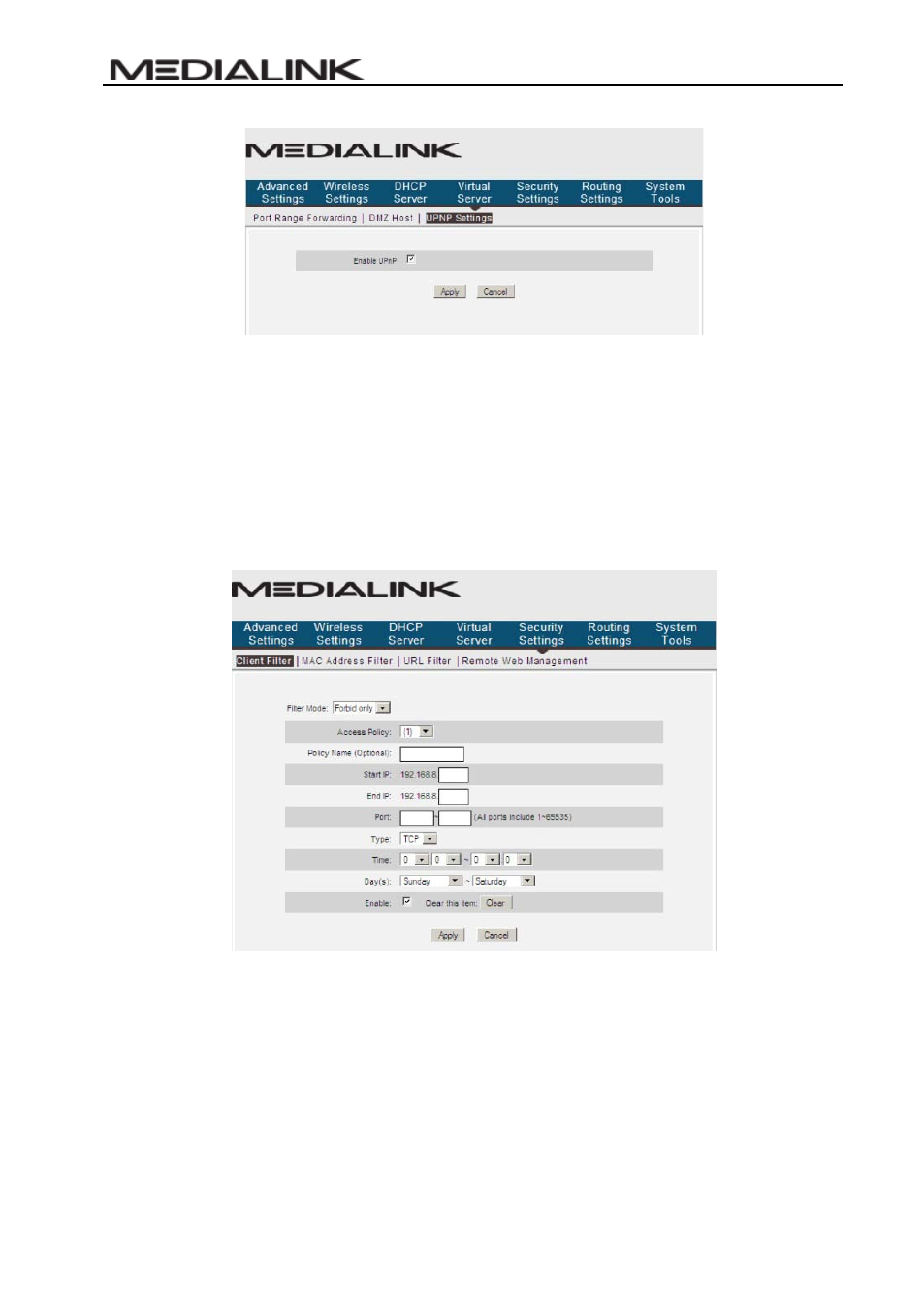

 Enable UPnP: Click the checkbox to enable the UPnP.
Chapter 8 Security Settings
8.1 Client Filter Settings
You can enable Client Filter to control LAN computers’ access to some or all ports:
 Filter Mode: You can select either “Permit only” or “Forbid only”.
 Access Policy: Select a number from the drop-down list.
 Policy Name (Optional): A simple description of the policy. You can leave it blank
if you want.
 Start/End IP: Enter the start/end IP address.
 Port: Enter the controlled TCP/UDP protocol port. You can specify a port or port
range. For all ports enter 1 to 65535.
 Type: Select one protocol (TCP/UDP/Both) from the drop-down list.
 Time: Select the time range of client filter. The start time must be earlier than the
