Installation Manual of 4-inch Speed Dome
21

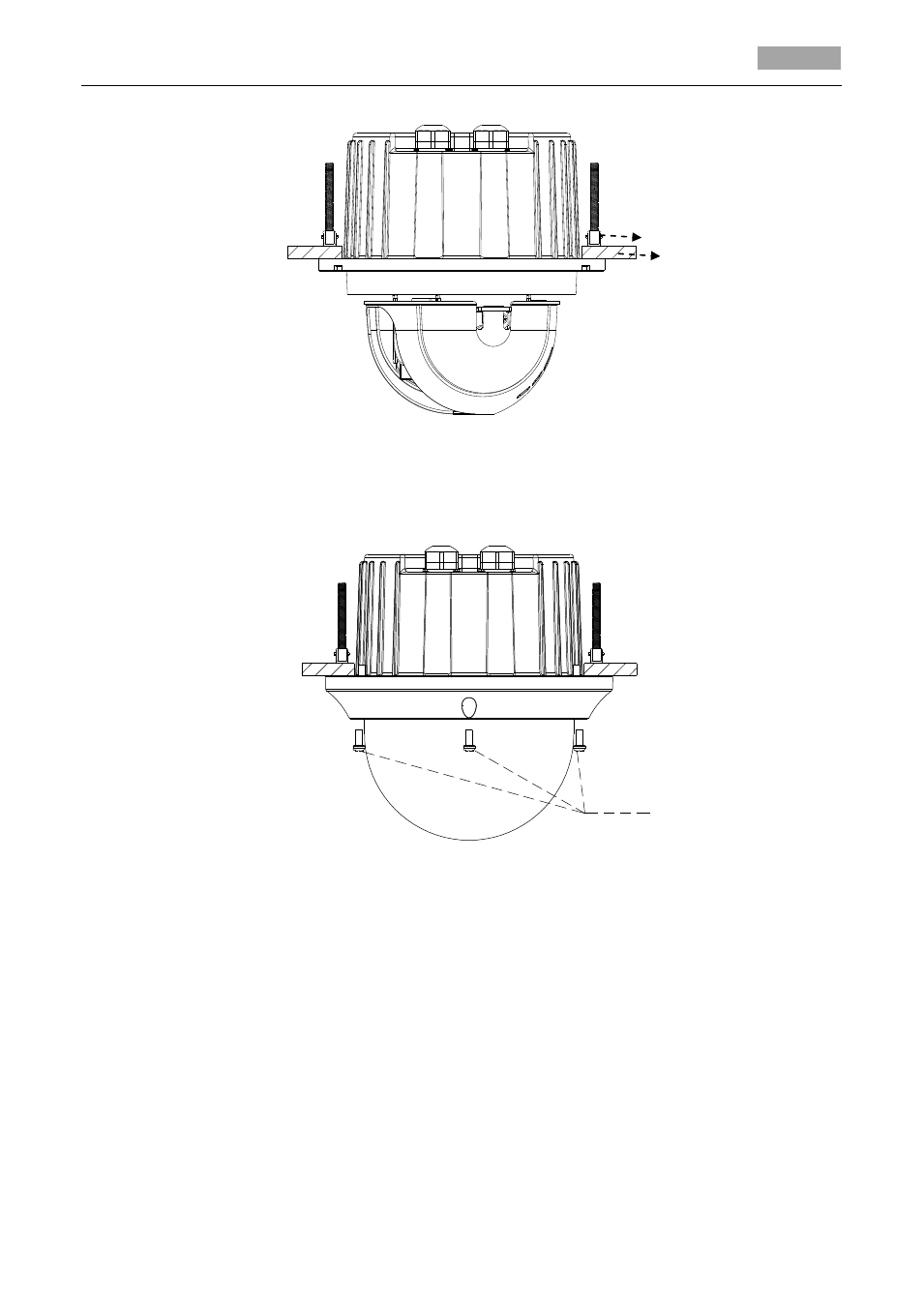

Figure 3-12 Install the Dome to the Ceiling
7. Attach the lower dome to the speed dome.
8. Secure the lower dome with three screws as shown in Figure 3-13.
Figure 3-13 Install the Lower Dome
9. Route the cables through the ceiling for the speed dome. Please refer to the section 1.1.2
Connecting the Cables for connecting the video, network, power, RS-485, alarm and audio, etc.
cables.
Toggle
Ceiling
Screws
