Installation Manual of 4-inch Speed Dome
4
7. Set the address, baudrate, etc. for the speed dome.
There is a DIP switch on the camera module as shown in Figure 1-6. You can set the parameters like
address, baudrate, etc. with the DIP switch. Please refer to the section 1.3 DIP Switch Settings for
detailed information.
1
2
3
4
5
6
7
8
9
10

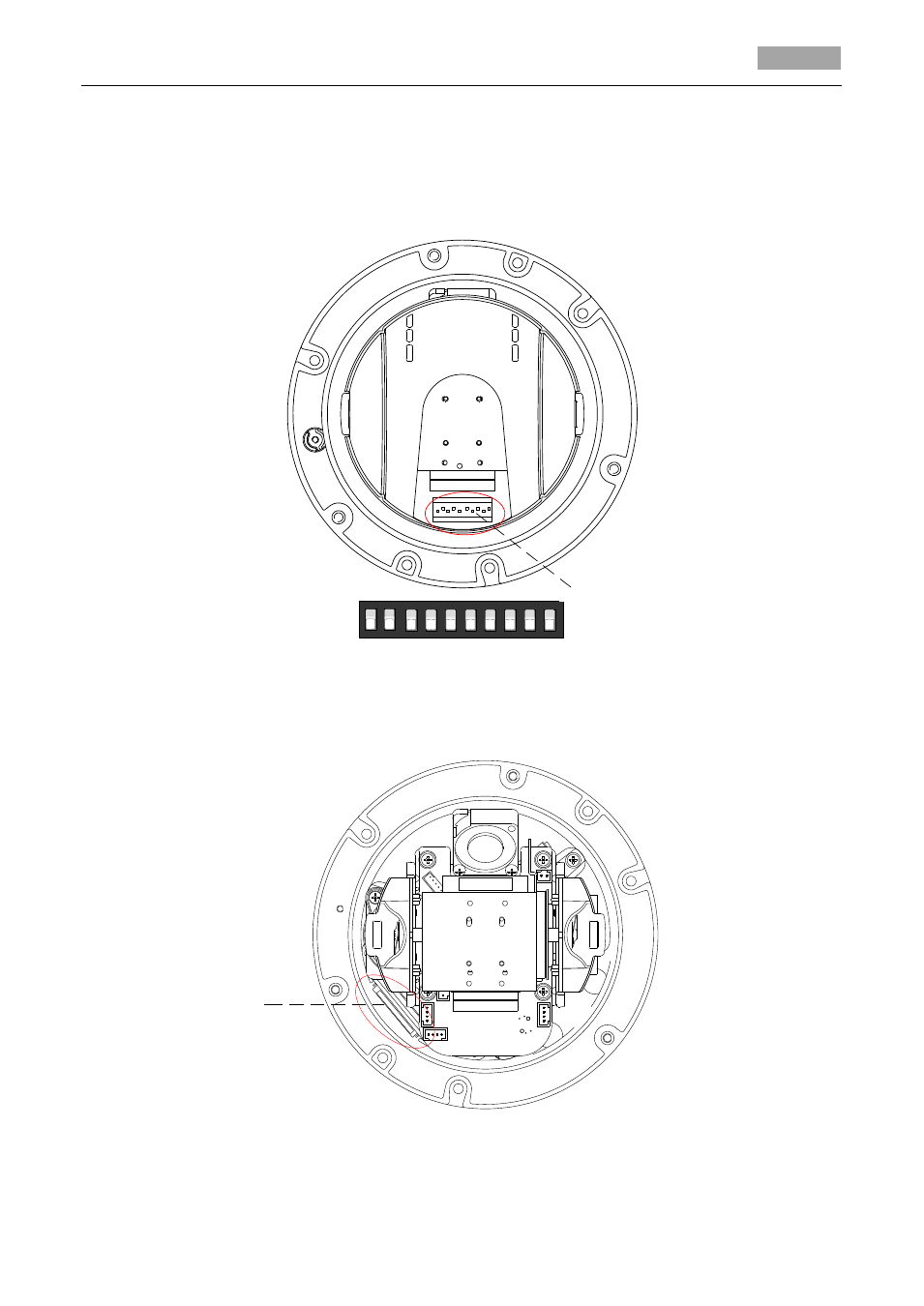

Figure 1-6 DIP Switch
8. For the network speed dome, there is a SD card slot on the camera module as shown in Figure
1-7. You can insert the SD card into the slot for local storage.
Figure 1-7 SD Card Slot
DIP Switch
SD Card Slot
