Installation Manual of 4-inch Speed Dome

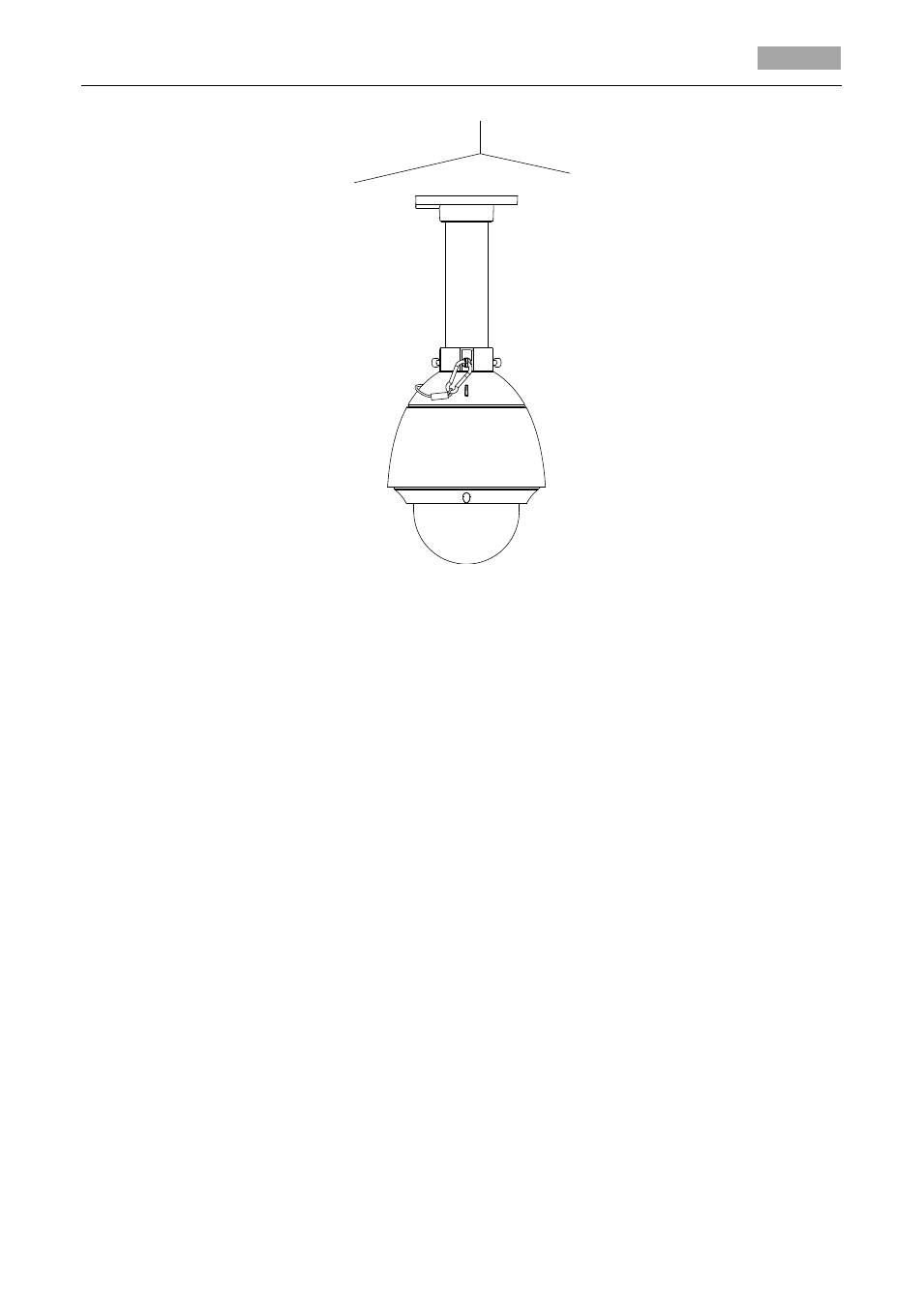

Figure 3-7 Secure the Speed Dome

3.3 In-ceiling Mounting

Before you start:
The in-ceiling mounting is applicable to the indoor ceiling.

Notes:

 The height of the space above the ceiling must be more than 250mm.
 The ceiling must be with the thickness between 5 and 40mm.
 The ceiling must be strong enough to withstand more than 4 times the weight of the dome

and its accessories.

Steps:
1. Drill holes in the ceiling.

1) Attach the drill template to the ceiling where you need to install the speed dome.
2) Cut a hole and drill screw holes according to the drill template.

Note:

2mm of the diameter of the circle is tolerable.
