Installation Manual of 4-inch Speed Dome
20

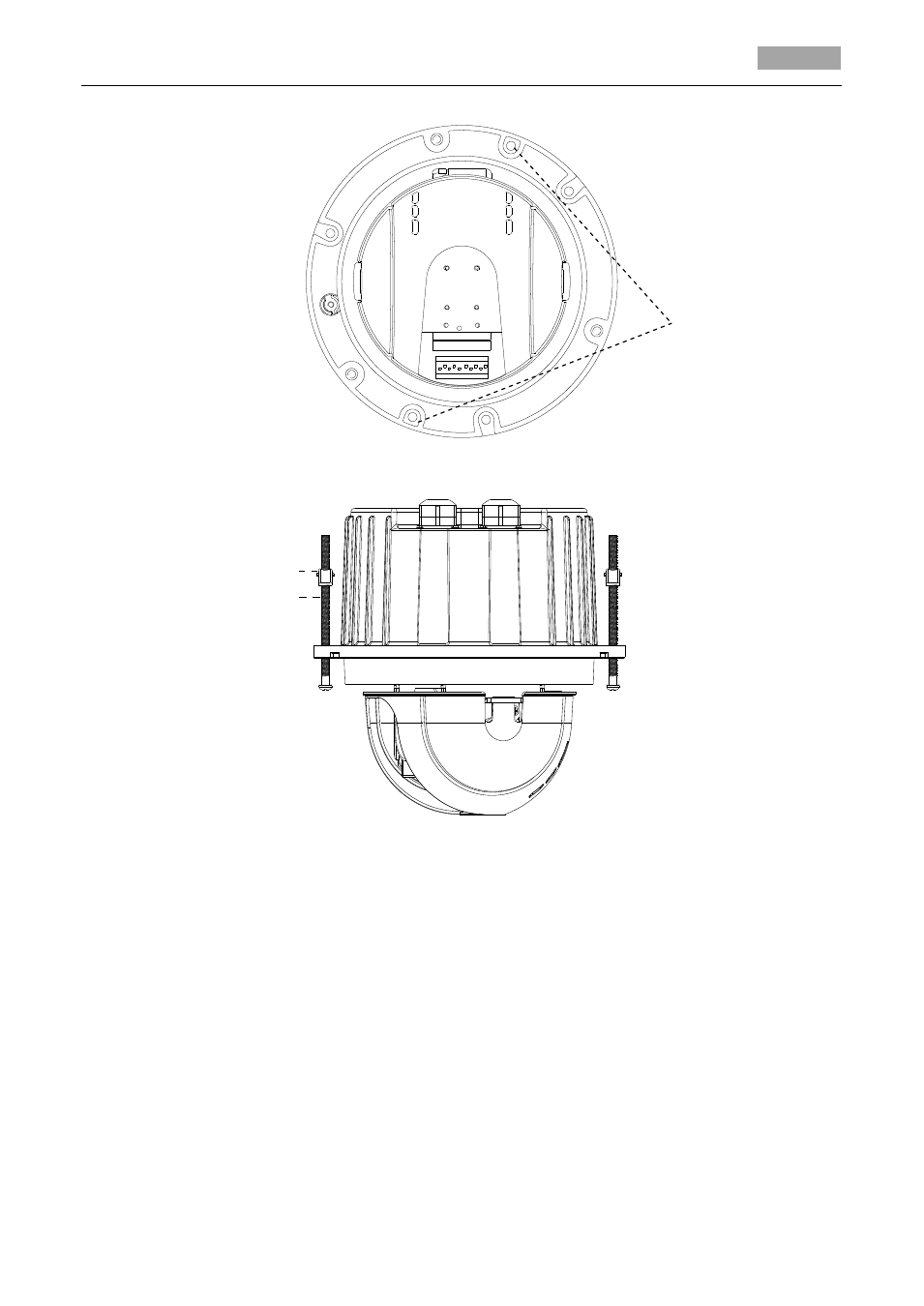

Figure 3-10 Toggle Bolt Holes
Figure 3-11 Install the Toggle Bolts
4. Align the toggle bolts with the screw holes on the ceiling.
5. Push the dome to the mounting hole on the ceiling.
6. Rotate the bolts again. The toggle will automatically rotate down to secure the dome to the
ceiling.
Toggle
Bolt
Toggle Bolt
Holes
