Installation Manual of 4-inch Speed Dome
5

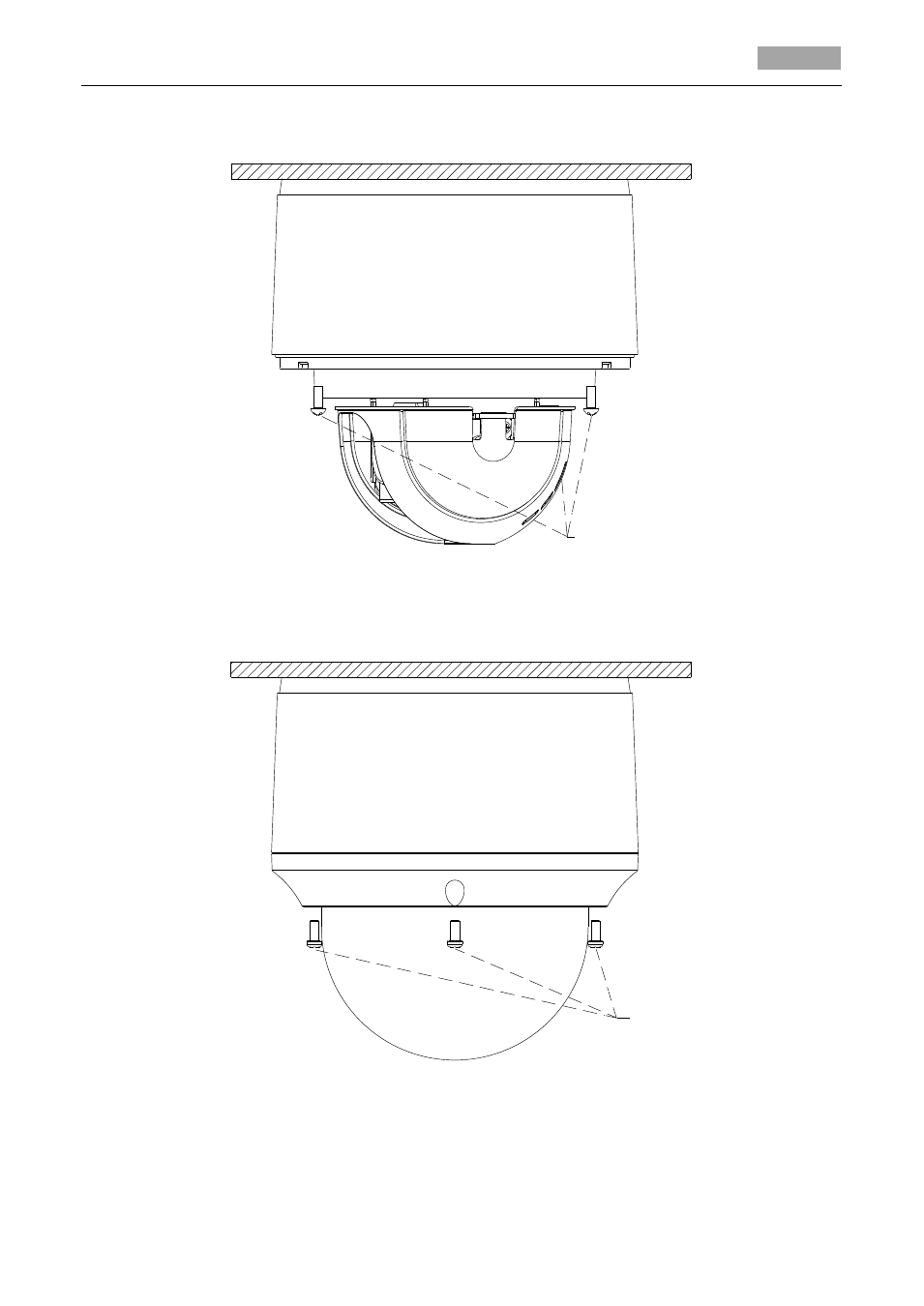

9. Install the camera module to the back box.
10. Secure the two parts with three screws as shown in Figure 1-8.
Figure 1-8 Install the Camera Module
11. Align the screws of the lower dome with the camera module.
12. Secure the lower dome with three screws as shown in Figure 1-9.
Figure 1-9 Install the Lower Dome
Three Screws
Three Screws
