Installation Manual of 4-inch Speed Dome
2

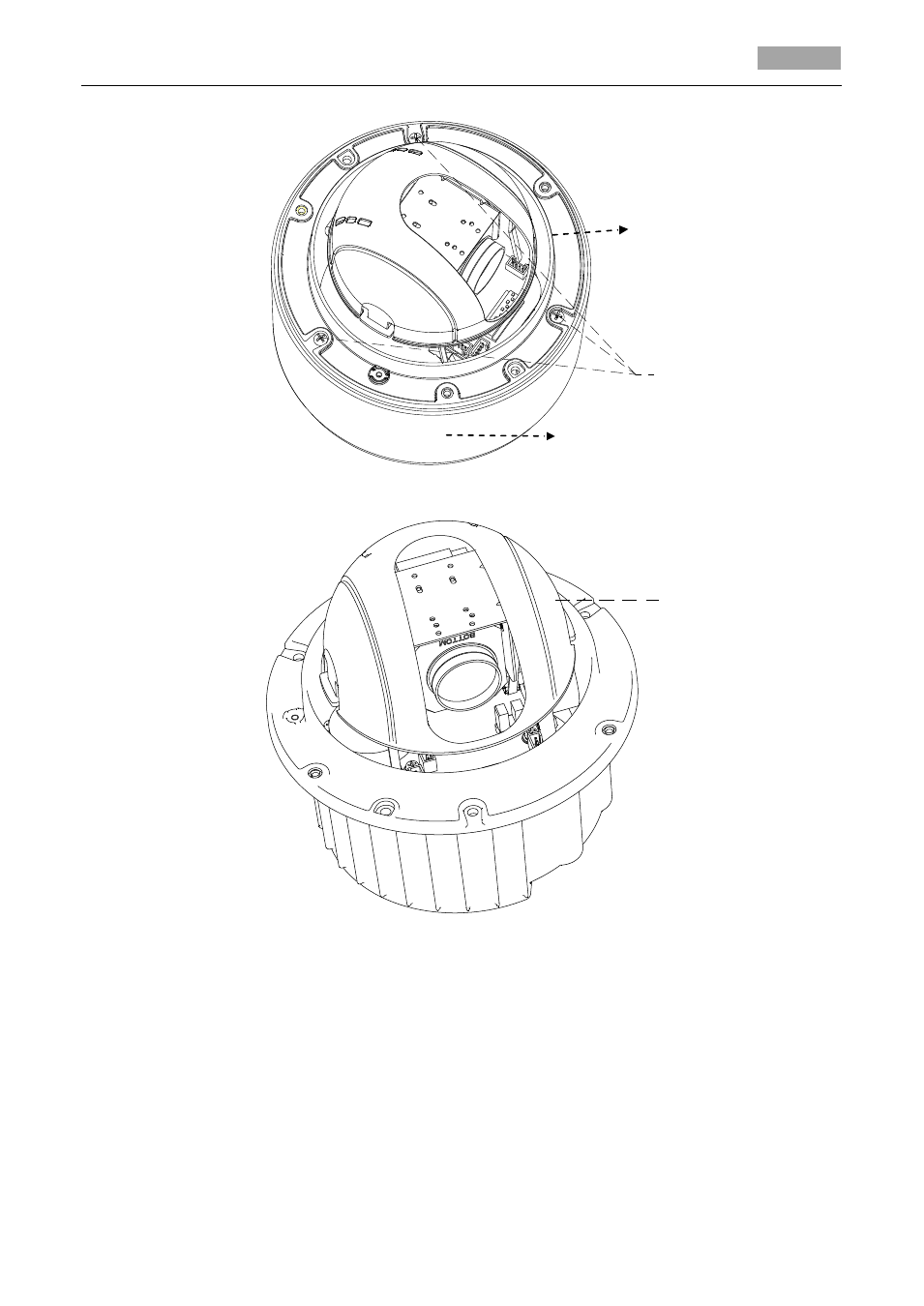

Figure 1-2 Remove the Back Box
Figure 1-3 Camera Module
5. Secure the ceiling mount to the ceiling.
1) Stick the drill template on the place where you want to install the speed dome.
2) Drill three φ6 screw holes with the drill template as shown in Figure 1-4.
Back Box
Three Screws
Camera Module
Dome Liner
