Cool Side Delay Switch Installation 4801-0120 Page 2
POWERTRAK
COOL SIDE DELAY SWITCH INSTALLATION (Continued)
For 4, 5,or 6 foot PowerTrak machines only:
Replace the brace across the center front of the
machine. This brace is held in place by four bolts.
Use the original bolts to install the new brace.
Wiring the two PowerTrak machines, to operate with a
cool side delay requires that a wire connects the power
supply of the north side machine with the limit switch
installed on the south machine.
Wiring the machines requires breaking the orange wire
from the north side machine's limit switch harness, and
connecting a wire that runs through the cool delay
switch of the south side machine.
This orange wire on the north side machine is located
at the bottom right of the macine next to the motor
when looking through the open door. The wire
connects to the limit switch on top center of the

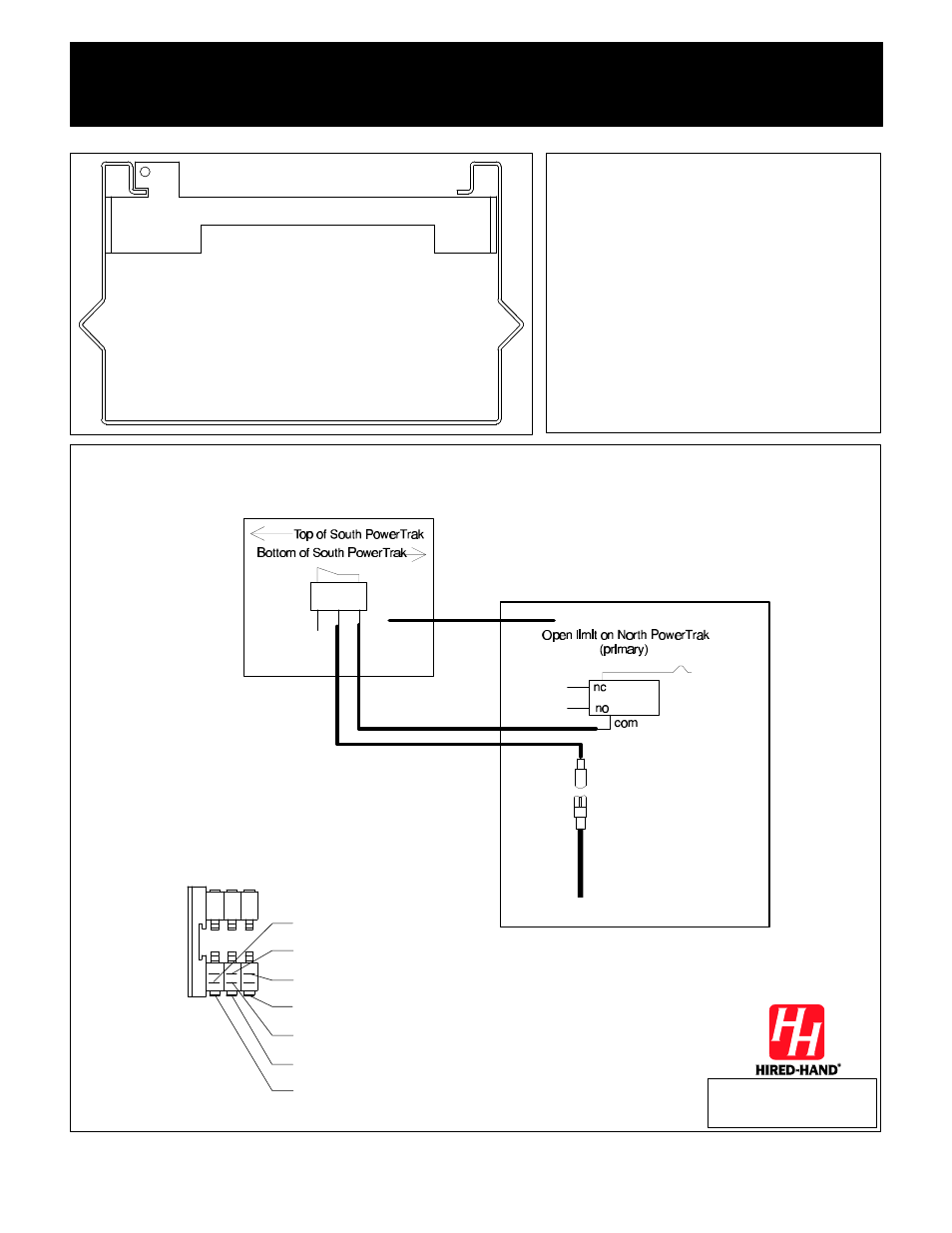

assembly. Run your wire from here to the cool delay
switch on the other machine as shown below.
All wiring must be performed in
accordance with all National and Local
Electric Codes. Installation by qualified
electrician recommended.
Close
Open
Brown
Purple
Green
Blue
White
Orange
Lt. Blue
Auxilliary Primary Safety
Ground
Pull orange wire off of the
COM connection of the
above limit switch. Then
connect the switch in
between the orange wire
and the terminal where the
orange wire was originally
connected .
North (Delayed) Machine
South Machine
