Connecting power supply – Hired-Hand HH Software: HH.Net Router/Repeater User Manual
Page 5
Part No. 4801-2996
900SS Wireless Network
3

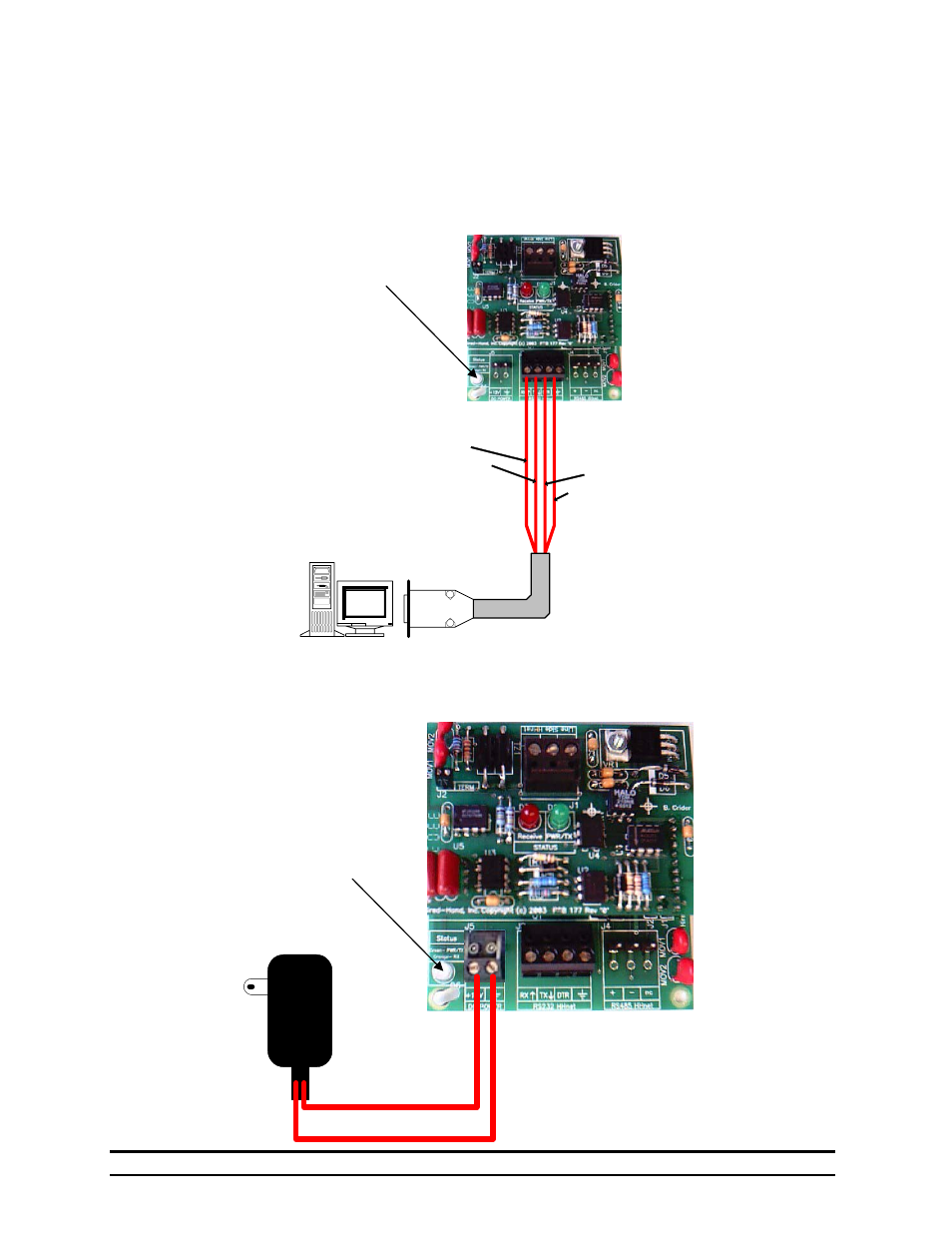

6. Connecting HHI Controls to a Computer RS232 Serial Cable
BROWN / WHITE
BLUE
ORANGE
ORANGE / WHITE
Computer
7. Connecting Power Supply
RS232 Connection
Blue – RX
Brown/White – TX
Orange – DTR
Orange/White - GND
Status LED
HHI Control Board
WHITE
SOLID BLACK
Status LED
Status LED
Power
Supply
HHI Control Board
