Page 3
ROLLSEAL, INC • 1751 Co Rd 68 • Bremen, AL 35033 • Phone 256-287-7000 • Fax 256-287-7010
Manual No. 4801-5312 Rev 6-07
Page 3 of 4
13.
Connect pump power cord to terminals of
electrical box as shown in wiring
Diagrams. See Figures 7 or 8.
14.
Close electrical box and securely tighten
lid of electrical box.
15.
Bundle pump power cord with other
cords using ribbon ties.
16.
Reconnect power and water.
17.
Test new pump for proper operation.
18.
Replace cool pads.
19. Installation
complete.
Black
White
Ground
Single Speed
Harness
TO MOTOR
PUMP
AC
POWER
Fan
Switch
Wh
it
e
Black
Black
Wh
it
e
Gr
ound
Pump
Switch
Ground
Cordset

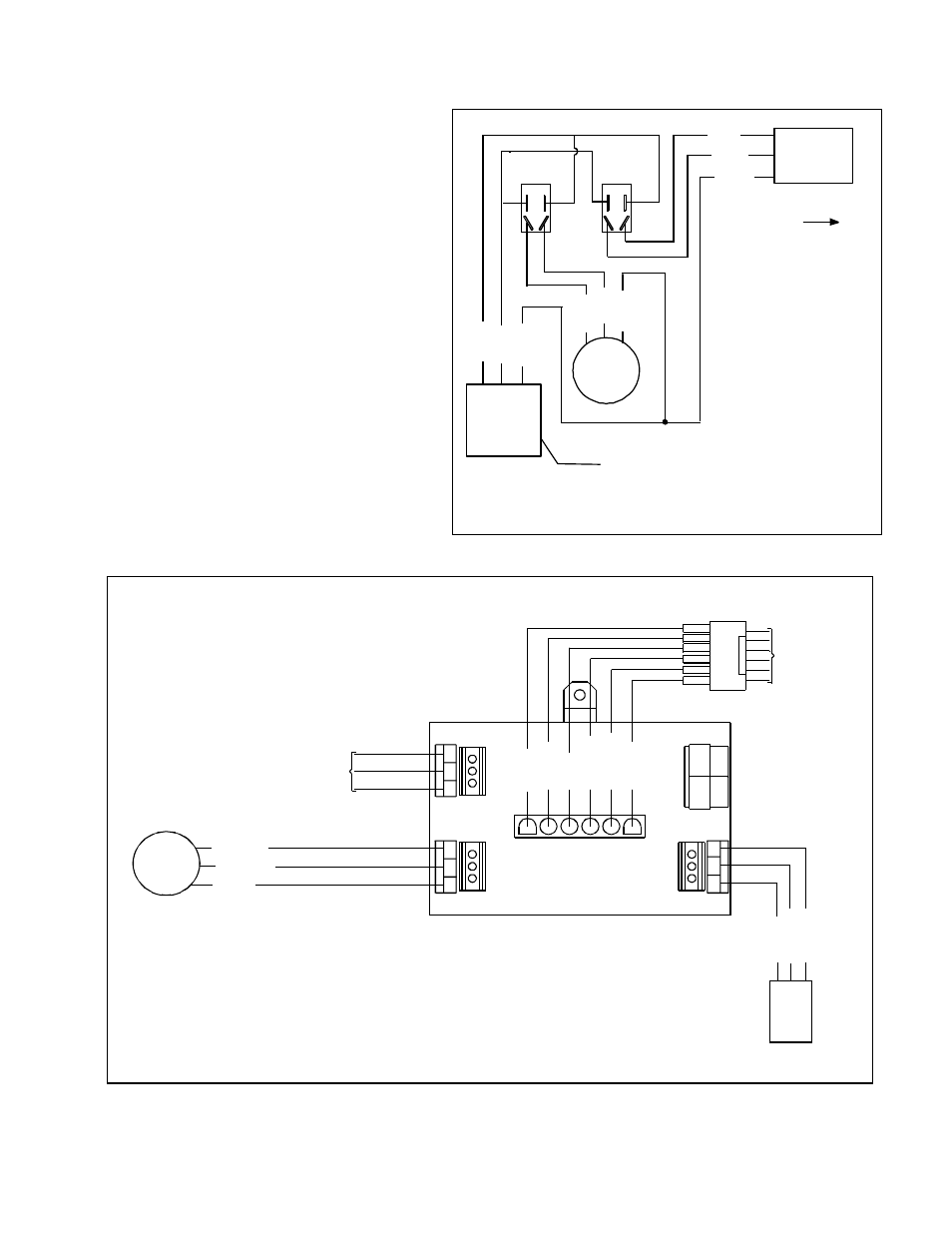

Figure 7
Single Speed Wiring Diagram
Black
White
Ground
To
Motor
2 Gre
en
3 Red
4 Ora
nge
6 Black
5 Ora
nge
1 Blue
Pump
To
Switches
Grou
nd
Black
White
AC
Power
Cordset
Figure 8
Variable Speed Wiring Diagram
Gr
ound
