Part No. 4801-5112 Rev 7-06 SPI Infrared Brooder Page 2 of 4

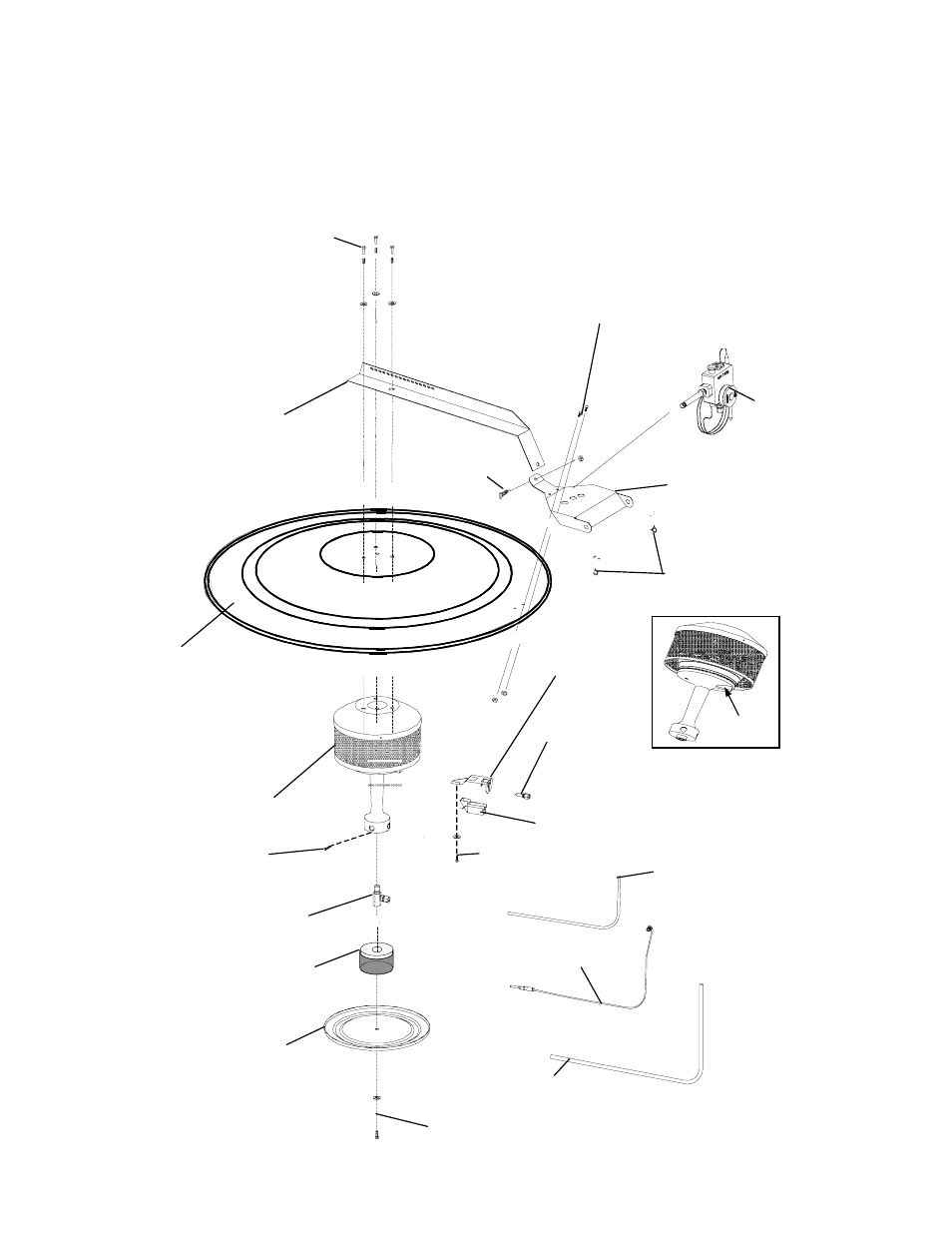

Diagram 1 Exploded View
Canopy
6410-6300
Gas valve
assembly
6410-6309
#8-32 x 1/2
Screw
Gas valve
support bracket
0404-4505
Low Profile
Hanging Bracket
0404-4733
Burner assembly
LP 6410-6302
NG 6410-6303
Igniter
Bracket
Pilot
Orifice
Burner Orifice
6410-6308 NG
6410-6307 LP
37"(94 cm) T-couple
sensor 3003-5011
Catch plate
0404-4451
Dust screen
6410-6317
Gas tube for pilot
0403-4506
Pilot
Guide
Gas tubing for
burner 0403-4472
Igniter shield
Retaining Clamps
1007-0101
1/4-20 x 1/2
Screw
¼-20x3/4 Screw
#10-1/2 Screw #10x1/4 Screw
¼-20x1/2
Screw
