ASSEMBLY
GRASS KING 03/09
Assembly Section 3-3
© 2009 Alamo Group Inc.
ASSEMBL
Y
WING MOWER ATTACHMENT
Position the Wing Mower (2) so that the Lift
Frame (1) and the Lugs of the Mower (2) line-up.
Attach the Lug Pins (3) and Locknuts (4).
Attach the Link Weldment (5) to the lugs on the
Mower (2). Retain with Pin Weldment (6) and
Cotter Pin (7).

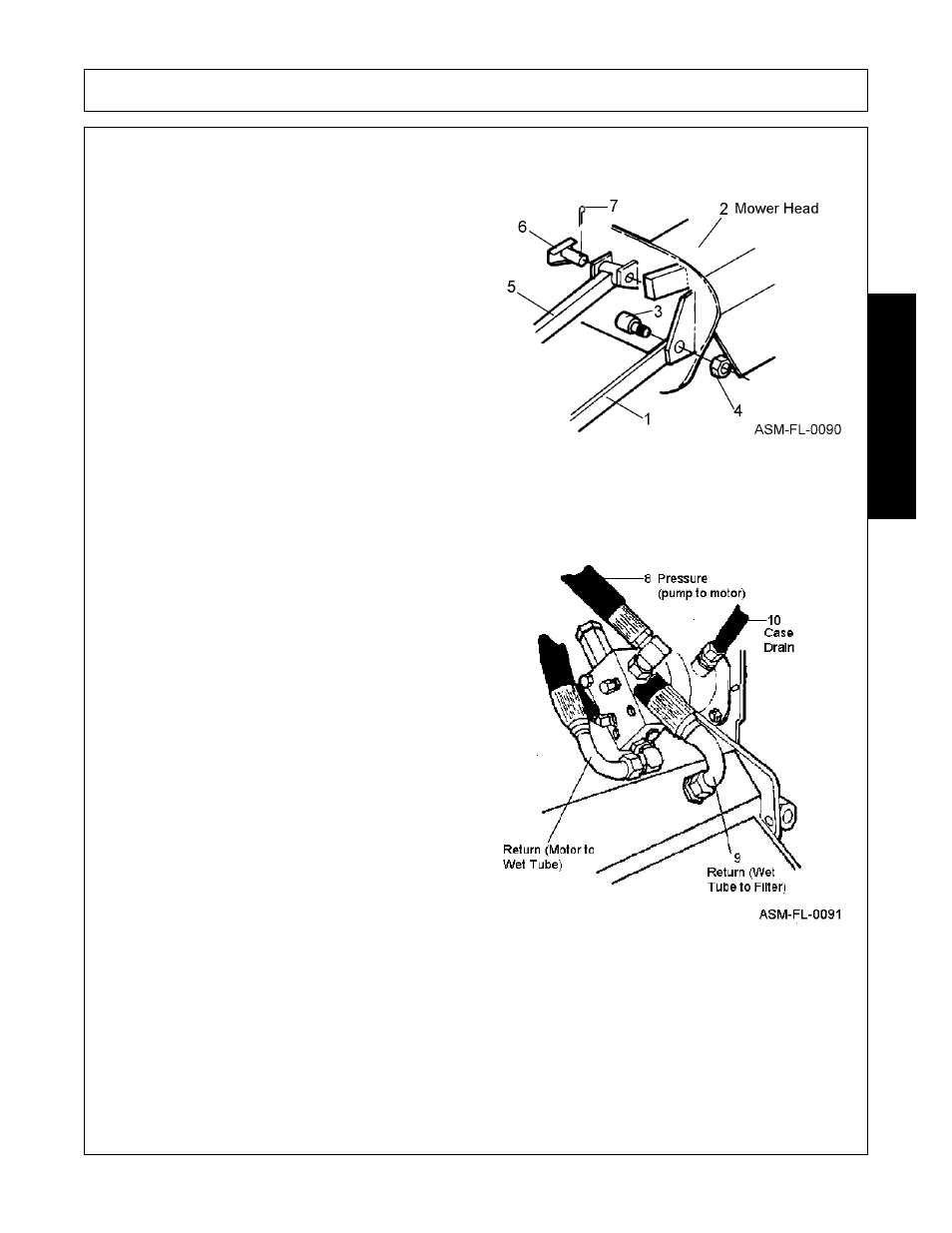

Image ASM-FL-0090
Attach the Pressure Hose (8) to the Hydraulic
Motor. Attach the Return Hose (9) to the Wet
Tube on the Mower. Attach the Case Drain Hose
(10) to the Hydraulic Motor.
Image ASM-FL-0091
Wing Mower Attachment
Hose Attachment
