CHANGING HYDRAULIC SYSTEM FILTER (Cont’d)

1.

Clean the filter cover to prevent dirt from entering tank.

2.

Relieve tank pressure by removing the Breather Filter. Stand off to one side when removing the Breather
Cap Element and while venting the excess air to prevent possible injury. Depress the spring loaded
Pressure Valve to release any excess air. Replace Breather Cap Element.

3.

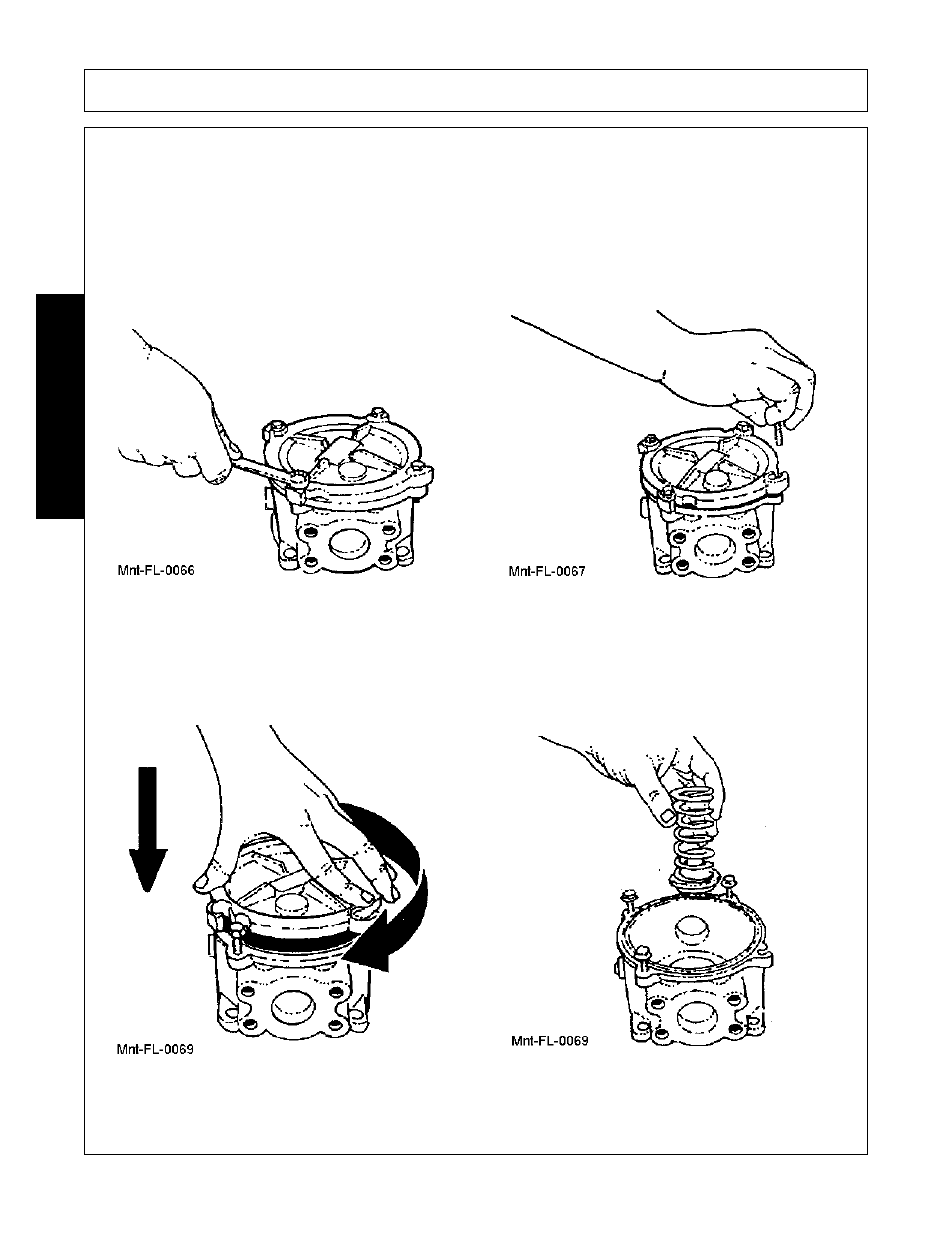

Loosen the four bolts on the filter cover. Image Mnt-FL-0066. Remove one bolt from the filter to aid in
removing the filter cover. Image Mnt-FL-0067.

4.

Push the filter cover down and slowly twist the filter cover off. Image Mnt-FL-0068.

5.

Remove filter spring. Image Mnt-FL-0069.
