Chapter 2
24
H81H3-TI2 USER MANUAL
After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:

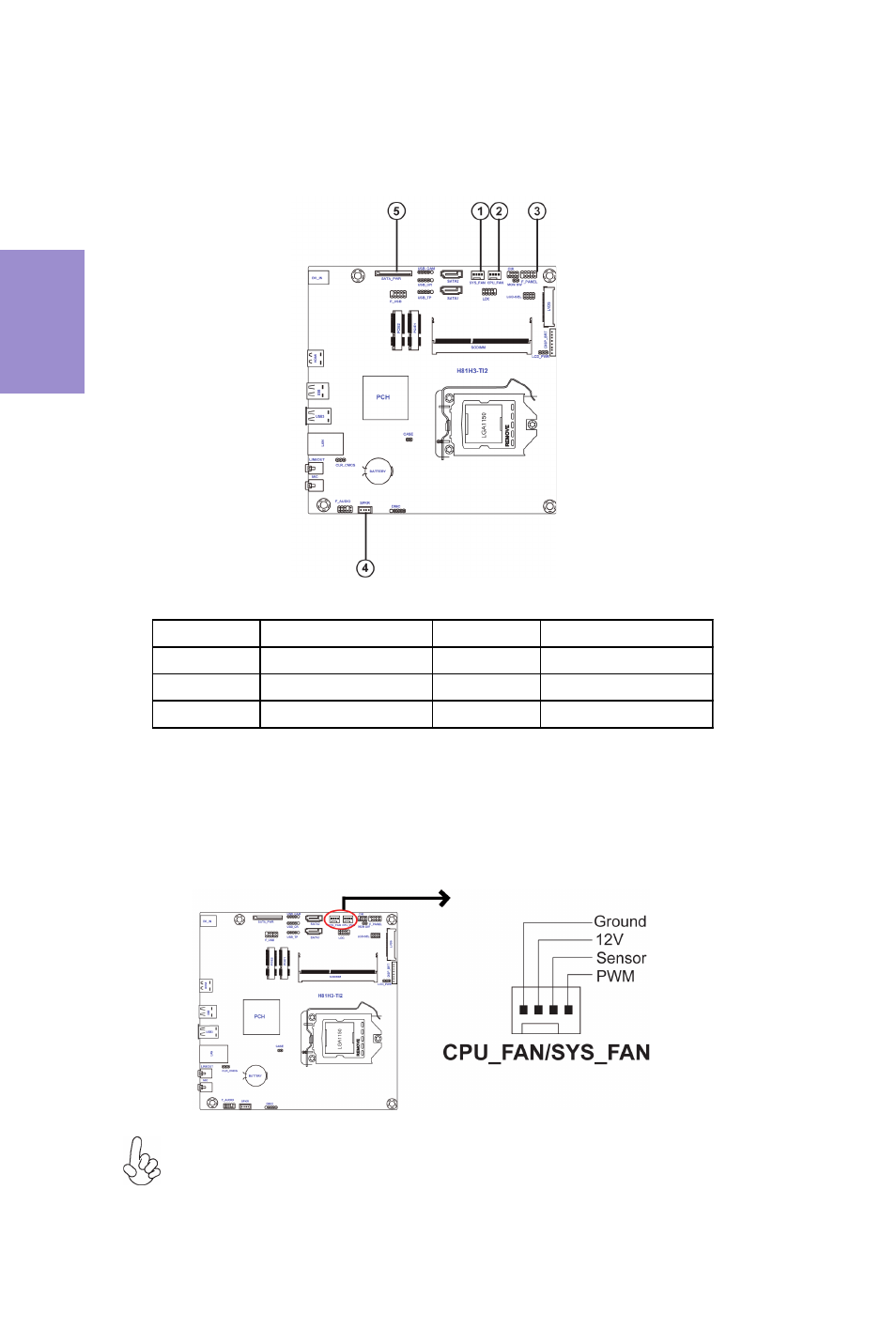

2-4-7. Connecting Case Components
No. Components No. Components
1 SYS_FAN 4 SPKR
2 CPU_FAN 5 SATA_PWR
3 F_PANEL —— ——
1 & 2 . SYS_FAN (System cooling FAN connector) &CPU_FAN (CPU cooling FAN
connector)
Users please note that the fan connector supports the CPU cooling fan of 1.1A
~ 2.2A (26.4W max) at +12V.
Connect the CPU cooling fan cable to CPU_FAN.
Connect the system cooling fan connector to SYS_FAN.
