Chapter 2
17
H81H3-TI2 USER MANUAL

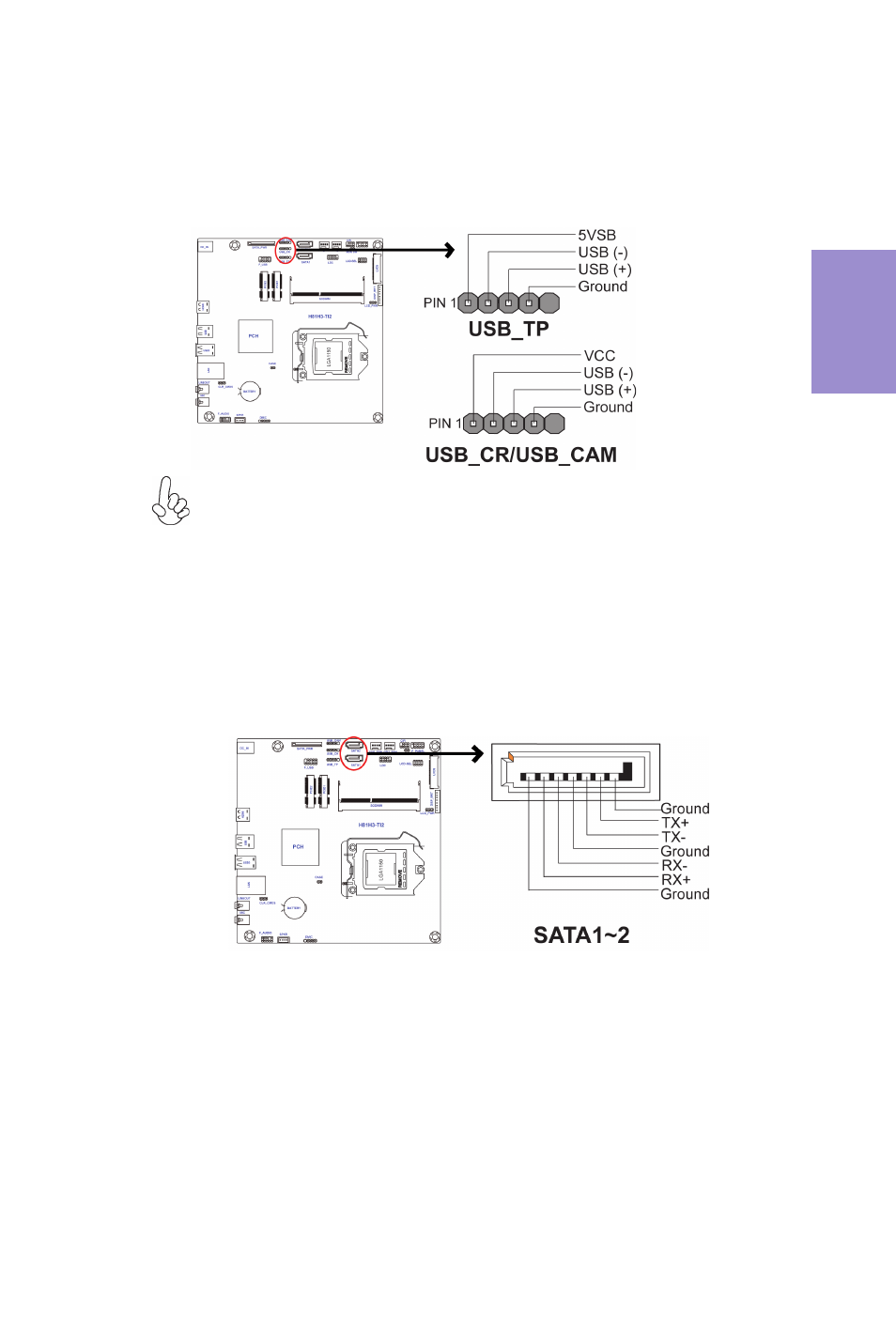

2 & 3 & 4. USB_CR/USB_CAM/USB_TP: 5-pin USB 2.0 header supports card
reader or one USB 2.0 device/5-pin USB 2.0 header supports camera or other
USB 2.0 device/5-pin USB 2.0 header (yellow) supports touch panel or other
USB 2.0 device
Users please note to install the card to the correct header.
SATA1 connector is used to supports the Serial ATA 6.0Gb/s device, and SATA2 connec-
tor supports the Serial ATA 3.0Gb/s device, simpler disk drive cabling and easier PC
assembly. It eliminates limitations of the current Parallel ATA interface. But main-
tains register compatibility and software compatibility with Parallel ATA.
5. SATA1~2: Serial ATA connectors
