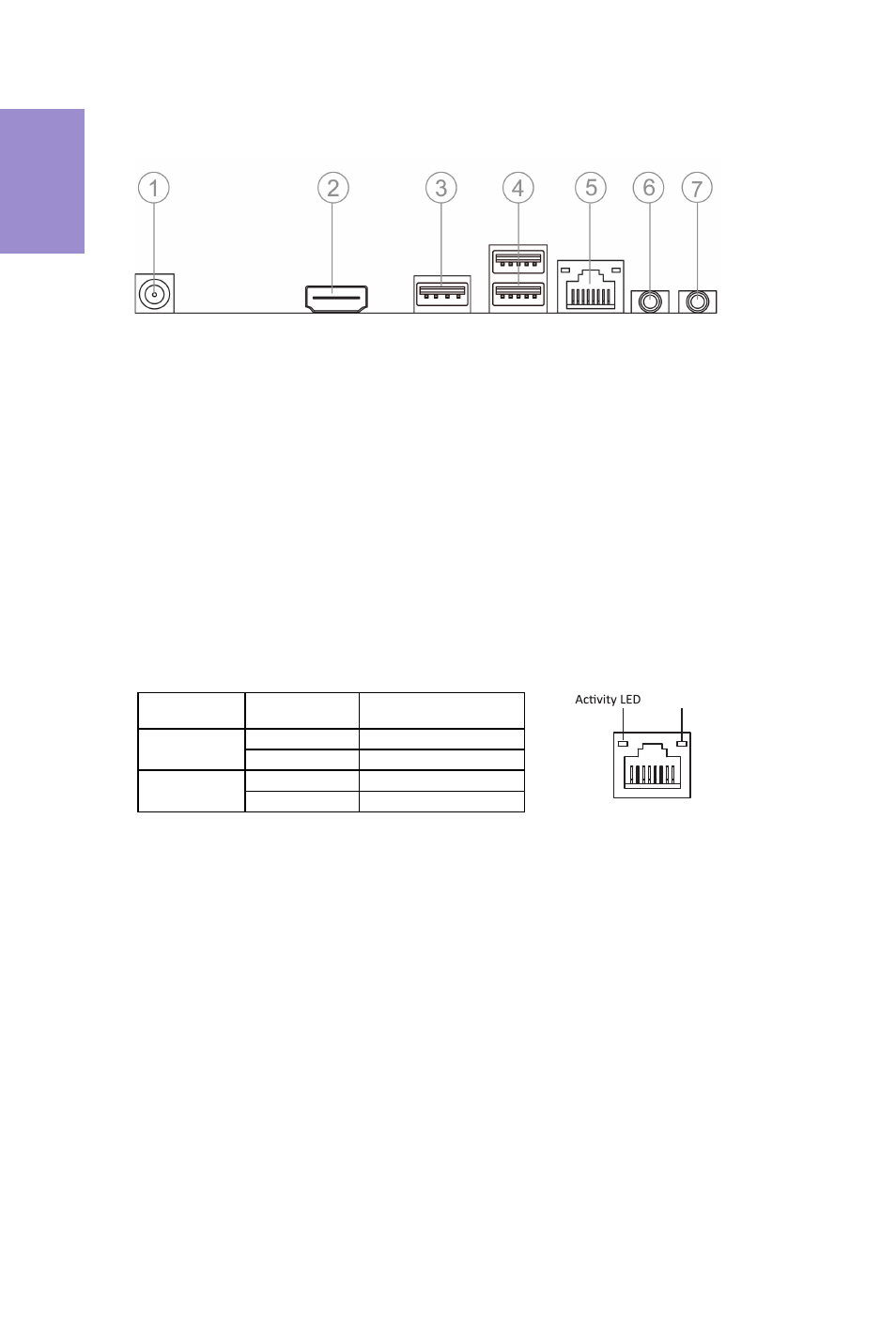

I/O Ports
1. 19V DC_IN Port
Connect the DC_IN port to the power adapter.
2. HDMI Port
Y ou can connect the display device to the HDMI port.
3. USB 2.0 Port
Use the USB 2.0 port to connect USB 2.0 device.
4. USB 3.0 Ports
Use the USB 3.0 ports to connect USB 3.0 devices.
5. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
6. Line-out (lime)
It is used to connect to speakers or headphones.
7. Microphone (pink)
It is used to connect to a microphone.
LAN LED Status Description
OFF No data
Orange blinking Active
OFF
No link
Green Link
Activity LED
Link LED
Link LED
LAN Port
