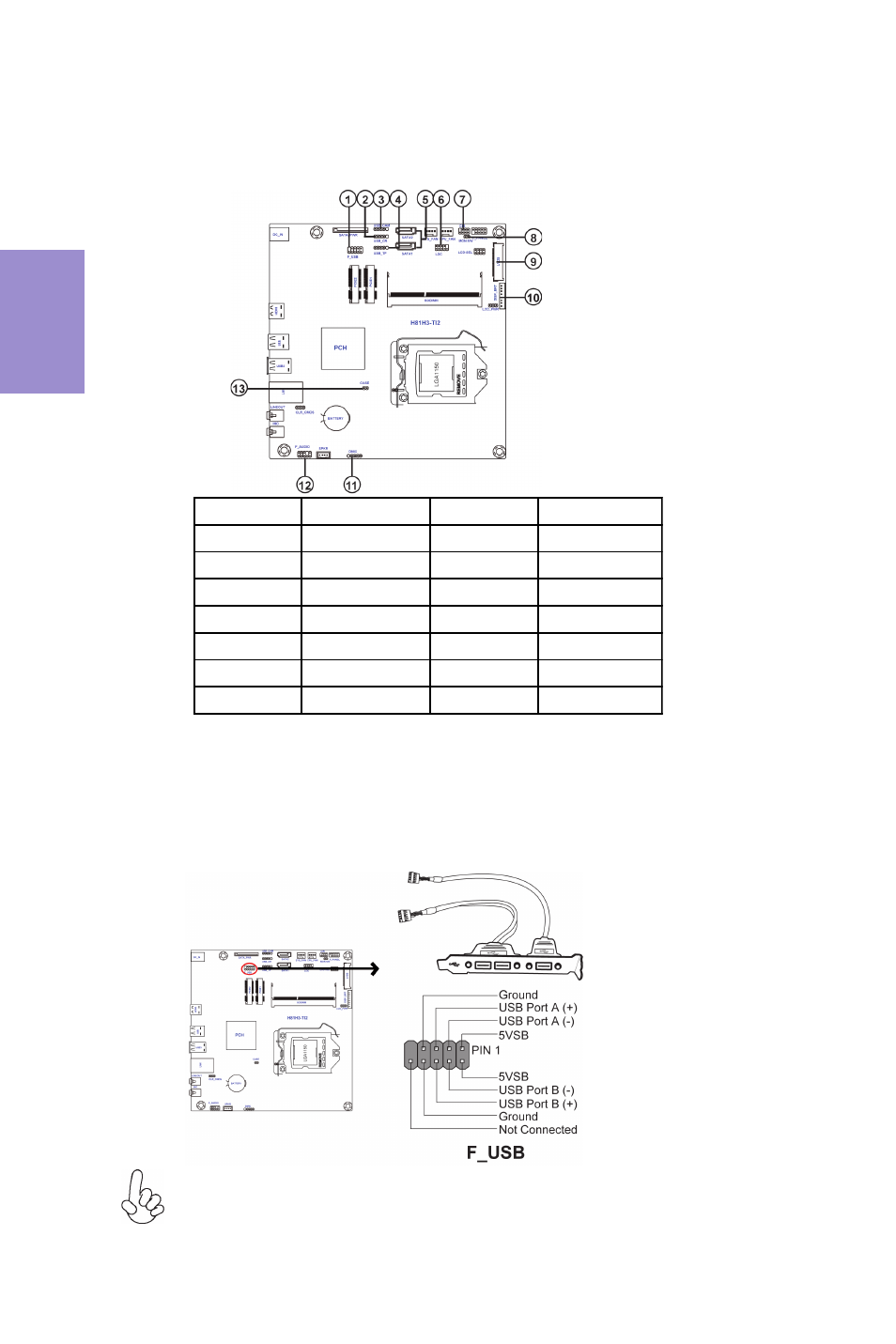

2-4-5. Connecting Optional Devices
Refer to the following for information on connecting the motherboard’s optional
devices:
No. Components No. Components
1 F_USB 8 MON_SW
2 USB_CR 9 LVDS
3 USB_CAM 10 DISP_BRT
4 USB_TP 11 DMIC
5 SATA1~2 12 F_AUDIO
6 LDC 13 CASE
7 CIR -- --
The motherboard has one USB 2.0 headers supporting two USB 2.0 ports.
Additionally, some computer cases have USB 2.0 ports at the front of the case. If you
have this kind of case, use auxiliary USB 2.0 connector to connect the front-mounted
ports to the motherboard.
1. F_USB: Front Panel USB 2.0 header
Please make sure that the USB cable has the same pin assignment as
indicated above. A different pin assignment may cause damage or system
hang-up.
