Chapter 2
8
H81H3-TI2 USER MANUAL
This section explains how to set jumpers for correct configuration of the
motherboard.
2-3. Checking Jumper Settings

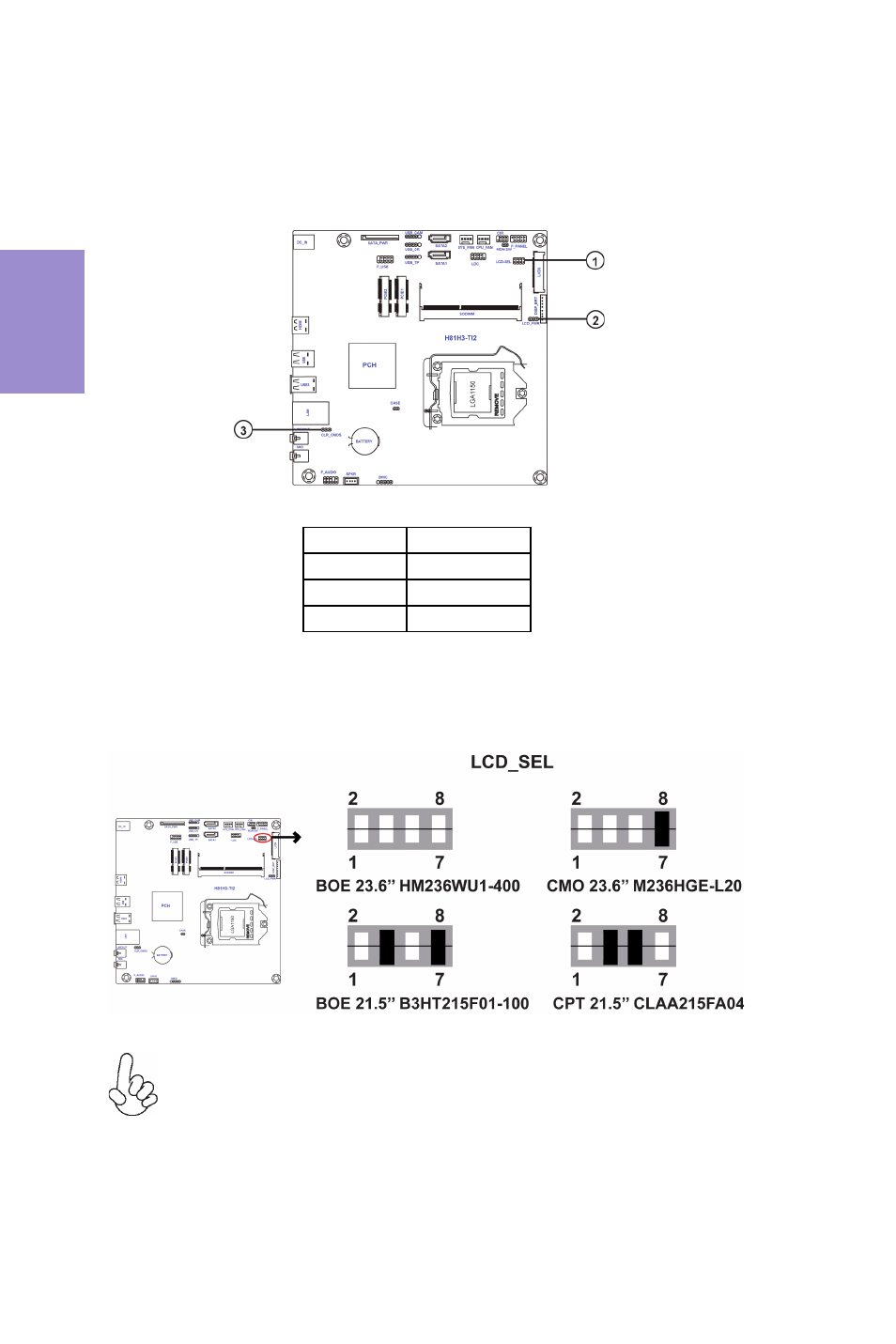

1. LCD_SEL: LCD panel select header (For All-In-One Specification)
1.When your panel connects to LVDS, please check LCD_SEL header setting
first.
2.Due to the differences of the panel parameters, please follow the above
illustration to place the jumper caps.
No. Components
1 LCD_SEL
2 LCD_PWR
3 CLR_CMOS
