SATA Configuration
Use this item to show the mode of serial SATA configuration options.
SATA Mode (AHCI Mode)
Use this item to select SATA mode.
Determines how SATA
controller(s) operate.

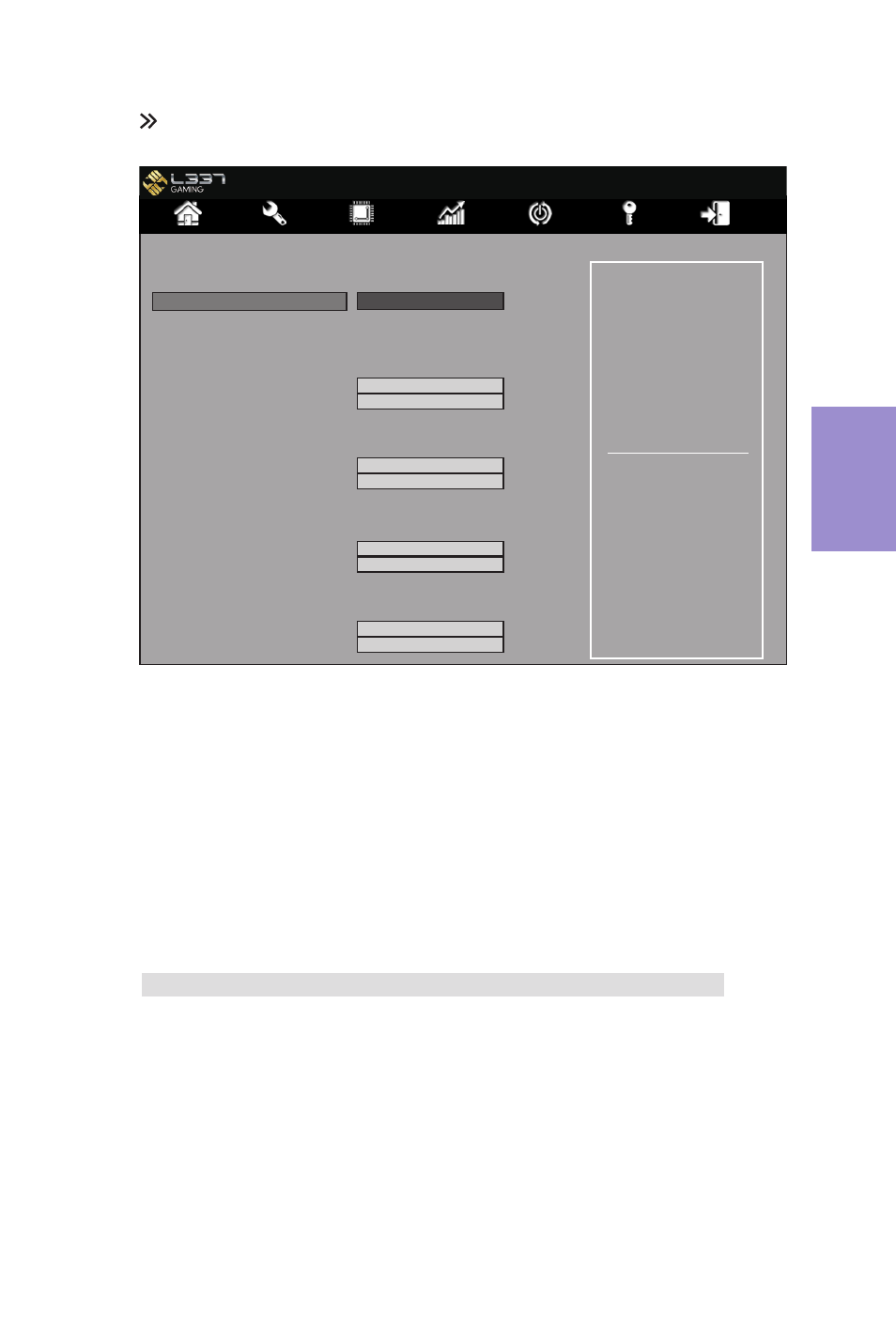

Main Advanced Chipset M.I.B. X Security Boot Exit
SATA Configuration
SATA Mode AHCI Mode
SATA Port1
Not Present
Spin Up Device
Disabled
External SATA Disabled
SATA Port2
Not Present
Spin Up Device
Disabled
External SATA Disabled
SATA Port3
Not Present
Spin Up Device
Disabled
External SATA Disabled
SATA Port4
Not Present
Spin Up Device
Disabled
External SATA Disabled
SATA Port 1~4 (Not Present)
This motherboard supports four SATA channels and each channel allows one SATA
device to be installed. Use these items to configure each device on the SATA channel.
Press to return to the Advanced Menu page.
Spin Up Device (Disabled)
Use this item to enable or disable the spin up device.
External SATA (Disabled)
Use this item to enable or disable the external SATA.
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
