Chapter 3
Z97-MACHINE USER MANUAL
33

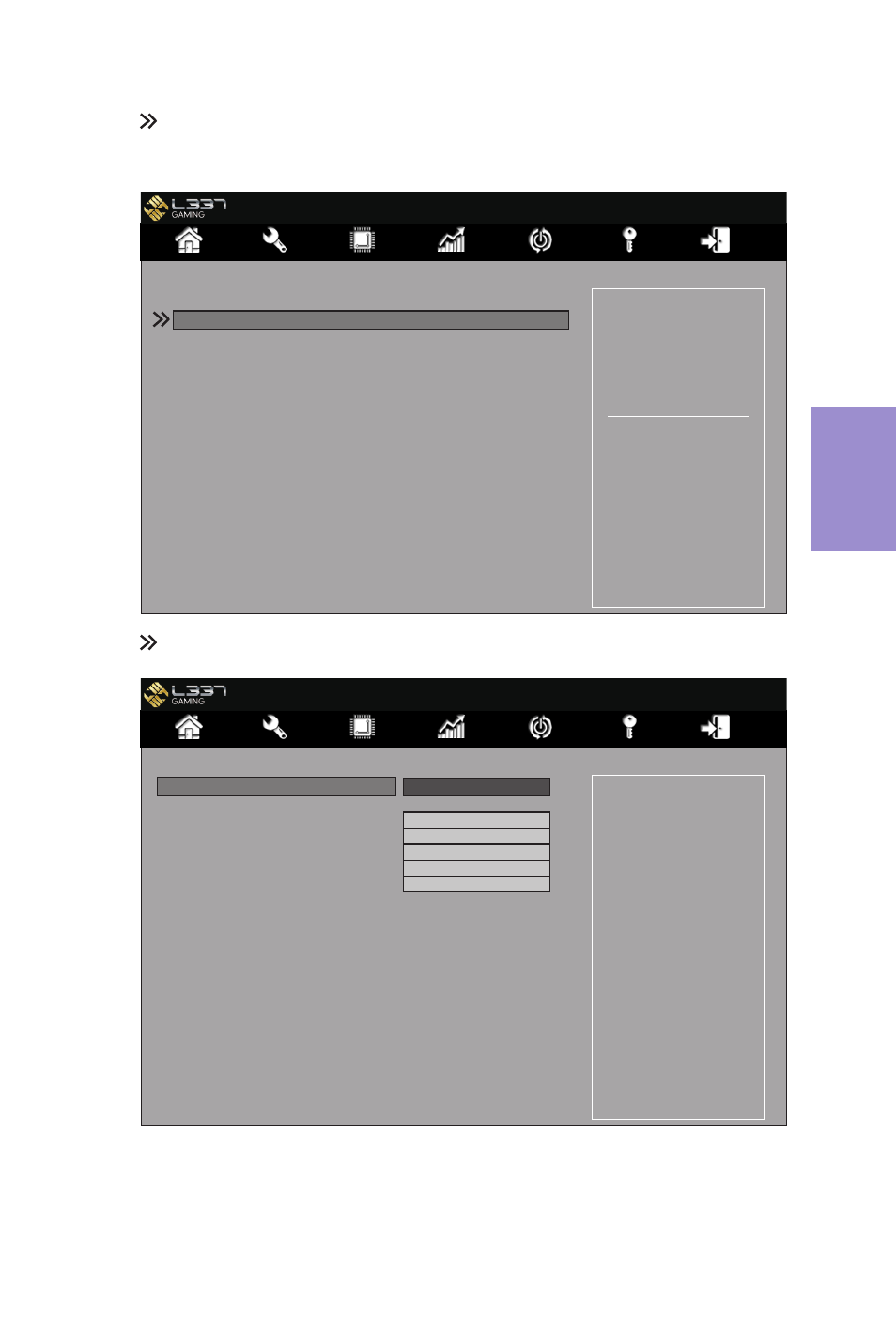

PC Health Status
On motherboards support hardware monitoring, this item lets you monitor the
parameters for critical voltages, temperatures and fan speeds.
Scroll to this item and press to view the following screen:
 Smart Fan Function
Main Advanced Chipset M.I.B. X Security Boot Exit
SmartFan Select
Main Advanced Chipset M.I.B. X Security Boot Exit
Smart Fan Select CPU Fan 1
Smart Fan Mode Normal
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Smart Fan start PWM value 180
Smart Fan start PWM TEMP (DTS)
70
DeltaT 3
Smart Fan Slope PWM value 10
Fan Full Speed Offset (DTS) 77
CPU Temperature (DTS) : 42
System Temperature : 30 O C
CPU Fan 1 Speed : 3308 RPM
CPU Fan 2 Speed : 0 RPM
System Fan 1 Speed : 0 RPM
System Fan 2 Speed : 0 RPM
System Fan 3 Speed : 0 RPM
Core Voltage : 1.020V
DIMM Voltage : 1.512V
+12V : 11.880V
+5V : 5.124V
+3.3V : 3.396V
PCH Core Voltage : 1.068V
TCC Activation Temperature (DTS) 100
Smart Fan Function
PC Health Status
