Chapter 2
23
Z97-MACHINE USER MANUAL

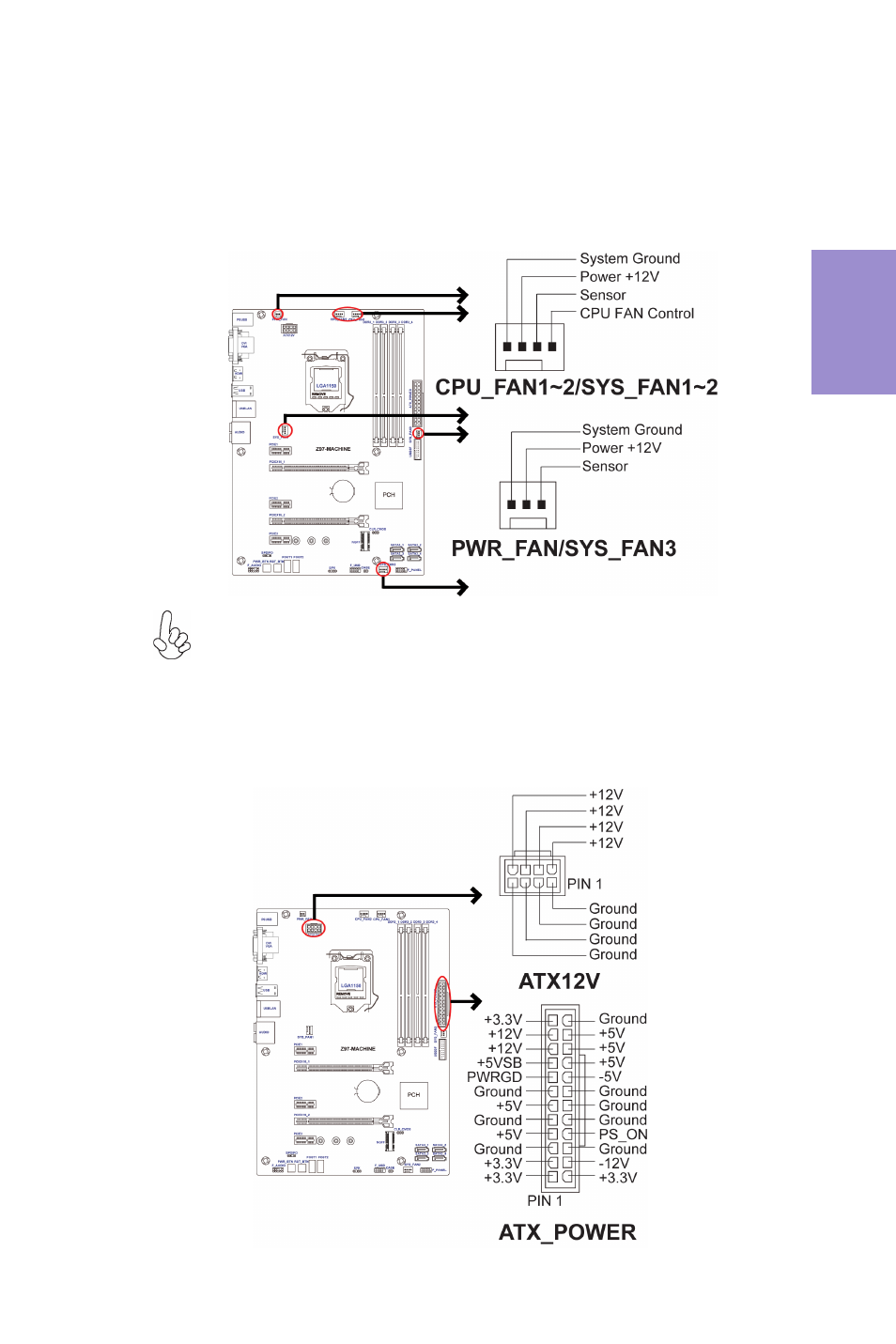

1 & 3 & 5 & 7 & 8 CPU_FAN1~2(CPU cooling FAN Connectors) SYS_FAN1~3
( System Cooling FAN Connectors) PWR_FAN (Power Cooling FAN Connector)
Users please note that the fan connector supports the CPU cooling fan of 1.1A
~ 2.2A (26.4W max) at +12V.
2 & 9 ATX_POWER (ATX 24-pin Power Connector) ATX12V (8 pin ATX 12V Power
Connector)
Connect the standard power supply connector to ATX_POWER.
Connect the auxiliary case power supply connector to ATX12V.
Connect the CPU cooling fan cable to CPU_FAN.
Connect the system cooling fan connector to SYS_FAN.
Connect the power cooling fan connector to PWR_FAN.
