Main Advanced Chipset M.I.B. X Boot Security Save & Exit
Set Upstream Link Width.
HT Control
Scroll to this item and press to view the following screen:
Current Width Up (16 bit)
This item shows the current Upstream Link Width.
Upstream Link Width (Auto)
This item allows you to set Upstream Link Width.
Current Width Down (16 bit)
This item shows the current Downstream Link Width.

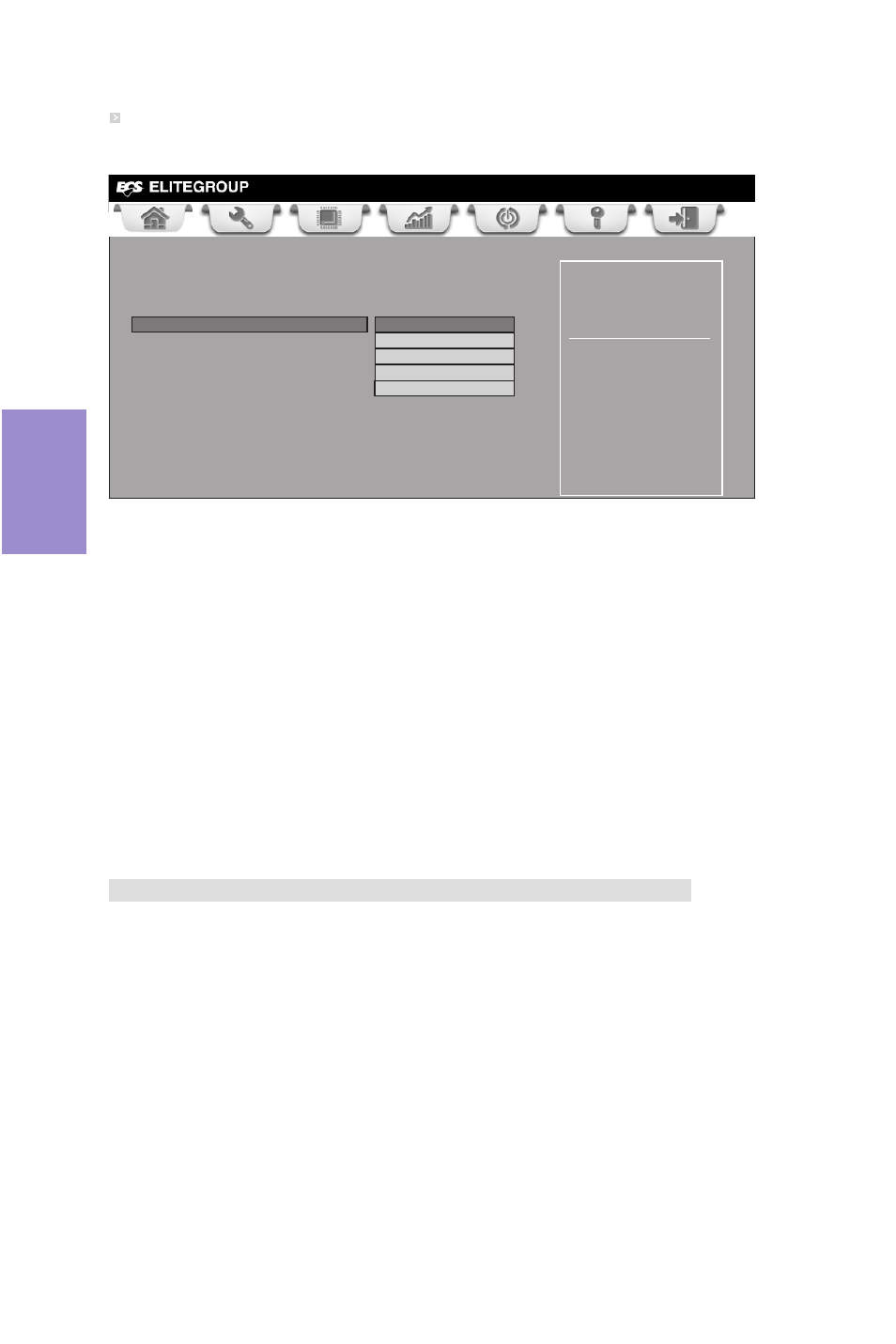

HT Control
Current Width Up: 16 bit
Upstream Link Width Auto
Current Width Down: 16 bit
Downstream Link Width Auto
Current IO HT Freq: 2400Mhz
IO HT Frequency Auto
+/- : Change Opt.
Enter/Dbl Click : Select
 : Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
ESC/Right Click: Exit

F4: Save & Exit
Press to return to the M.I.B. X Menu page.
Downstream Link Width (Auto)
This item allows you to set Downstream Link Width.
Current IO HT Freq (2400Mhz)
This item shows the current IO HT Frequency.
IO HT Frequency (Auto)
This item allows you to set IO HT Frequency.
