This page enables you to set the clock speed and system bus for your system. The
clock speed and system bus are determined by the kind of processor you have
installed in your system.

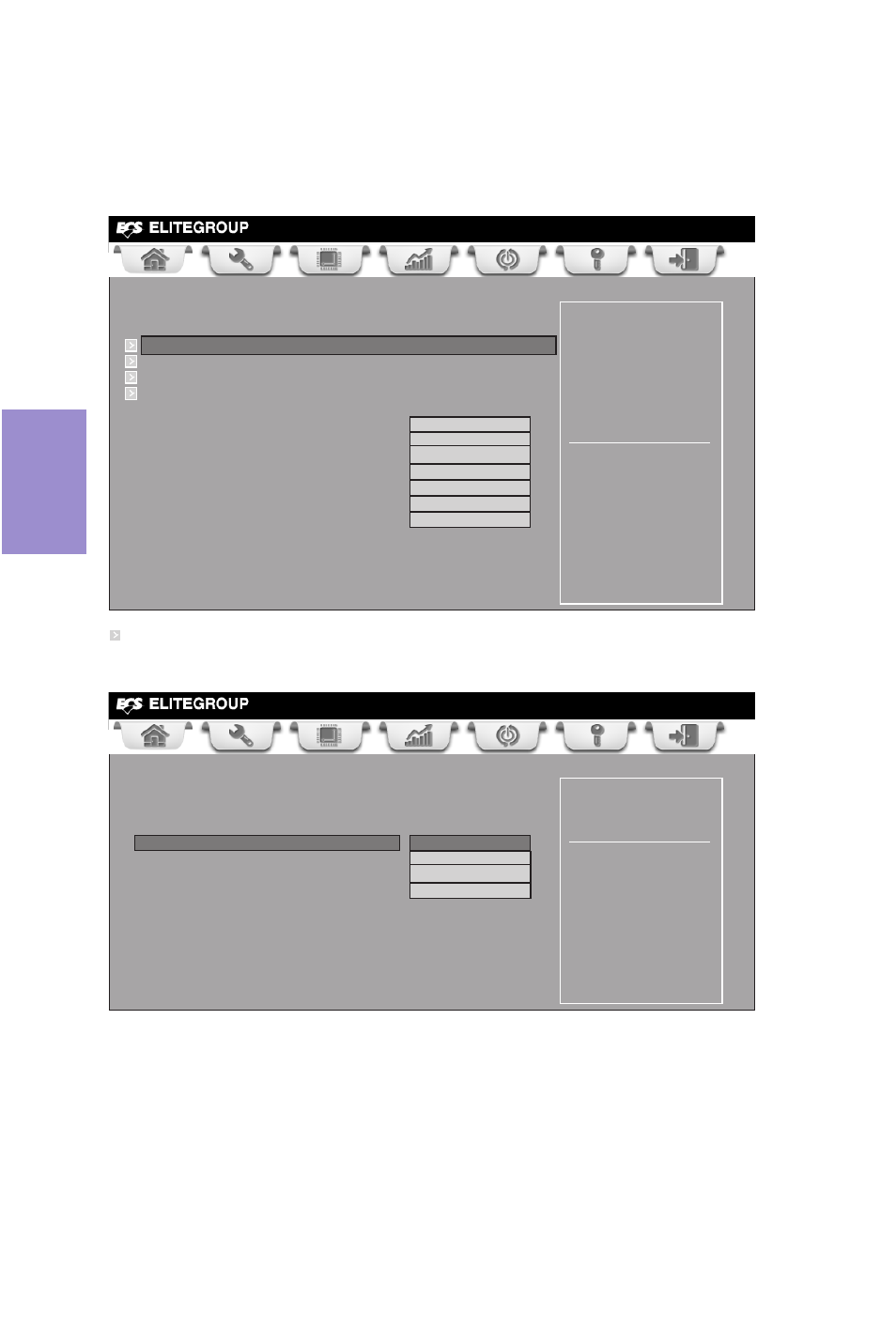

M.I.B. X (MB Intelligent BIOS X) Menu
Main Advanced Chipset M.I.B. X Boot Security Save & Exit
Processor Power Planes
and Voltage Controls
+/- : Change Opt.
Enter/Dbl Click : Select
 : Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
ESC/Right Click: Exit

F4: Save & Exit
Processor Power Planes and Voltage Controls
Memory Control
HT Control
NB Frequency/Voltage
M.I.B. X (MB Intelligent BIOS X)
Auto Detect DIMM/PCI Clk Enabled
CPU Over-clocking Func. Enabled
CPU/HT Reference Clock (MHz) 200
CPU Unlock Disabled
CPU Voltage Default
NB Voltage Default
VDIMM Voltage Default
Main Advanced Chipset M.I.B. X Boot Security Save & Exit
Core clock multiplier
Processor Power Planes and Voltage Controls
Scroll to this item and press to view the following screen:
Processor Power Planes and Voltage Controls
Current CPU Speed : 3600MHz
Core Clock multiplier Auto
AltVidC3 Enable Auto
Slam Time Mode Auto
VSSlamTime Auto
Current CPU Speed (3600MHz)
This item shows current CPU speed.
+/- : Change Opt.
Enter/Dbl Click : Select
 : Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
ESC/Right Click: Exit

F4: Save & Exit
Core Clock multiplier (Auto)
Use this item to set the core clock multiplier.
AltVidC3 Enable (Auto)
This item allows you to select amdAltVidEn 0:24N:3x80[12].
