Chapter 2

23

A970M-A DELUXE USER MANUAL

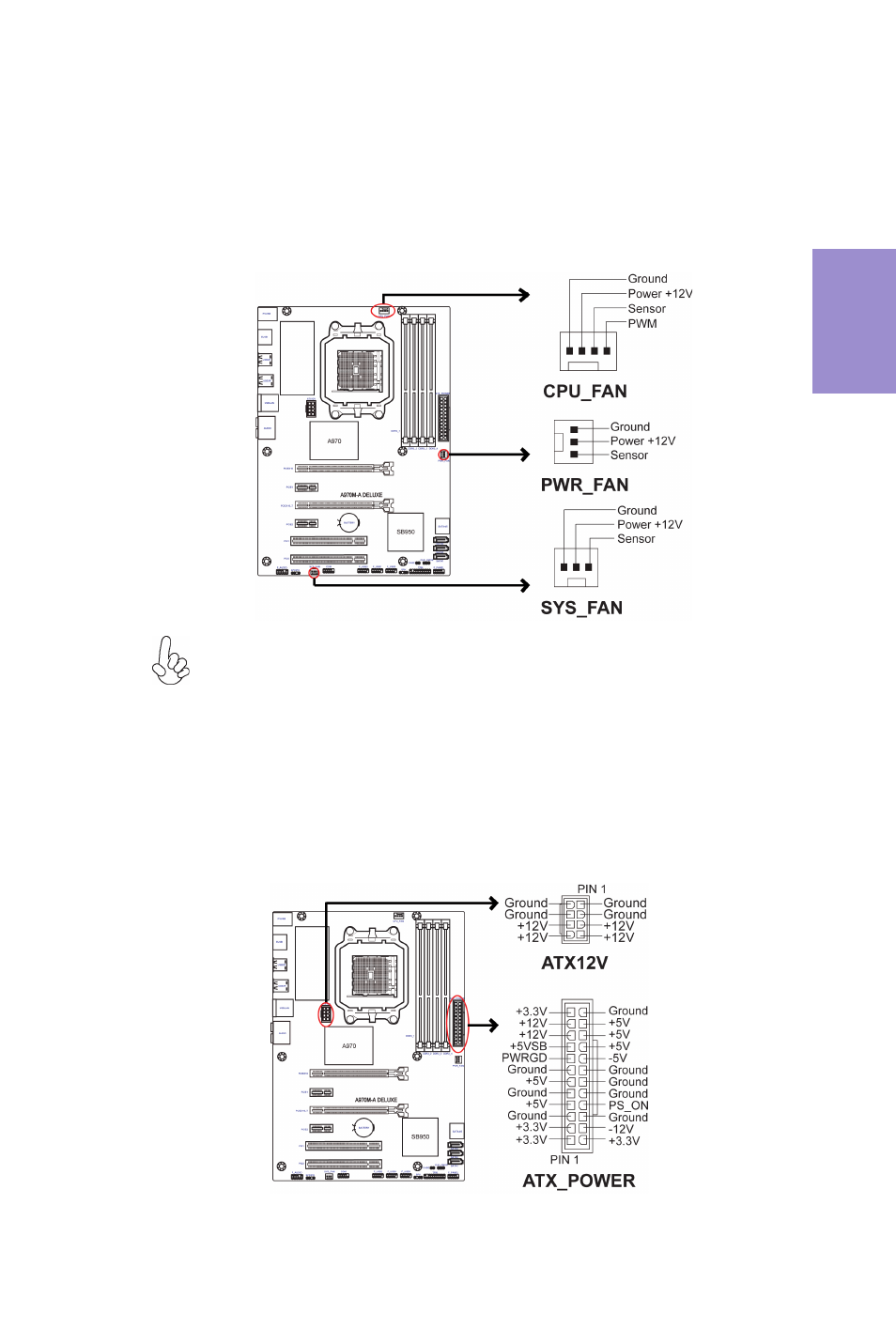

2 & 7. ATX_POWER (ATX 24-pin Power Connector) & ATX12V (ATX 12V Power
Connector)

Connect the standard power supply connector to ATX_POWER.
Connect the auxiliary case power supply connector to ATX12V.

1 & 3 & 6. CPU_FAN (CPU cooling FAN Power Connector) & PWR_FAN (Power
Cooling FAN Power Connector) & SYS_FAN (System Cooling FAN Power Connec-
tor)

Connect the CPU cooling fan cable to CPU_FAN.

Connect the System cooling fan connector to SYS_FAN.

Users please note that the fan connector supports the CPU cooling fan of 1.1A
~ 2.2A (26.4W max) at +12V.

Connect the Power cooling fan connector to PWR_FAN.
