Mid-Mount Rack Kit (Switch) Installation Procedure

53-1001273-07

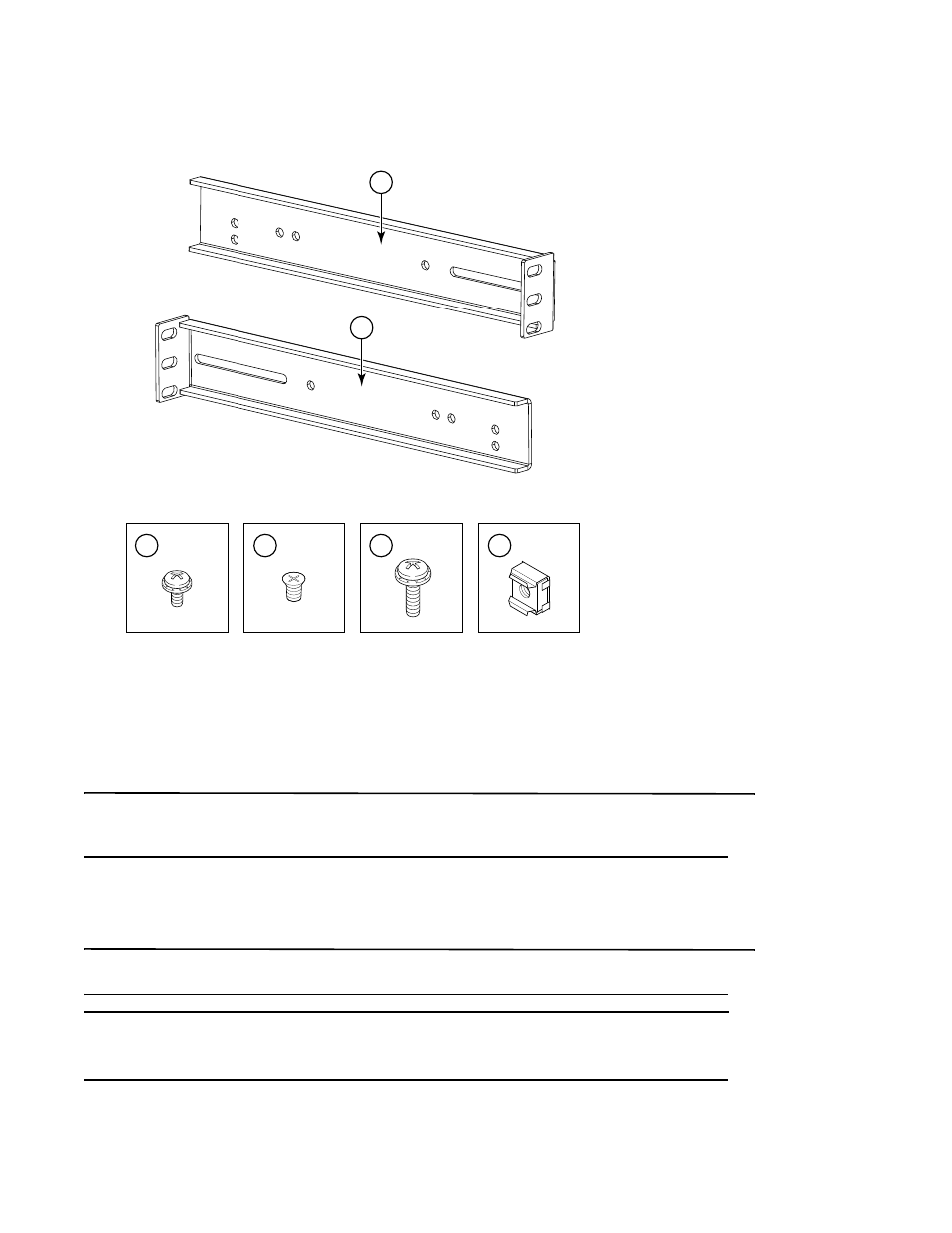

FIGURE 1

Items in the Mid-Mount Rack Kit

ATTENTION

For the Brocade 6505, Brocade 6510, and Brocade 6520 Mid-Mount Rack Kit, there will only be front left and front
right brackets.

Installation procedure

ATTENTION

The switch must be turned off and disconnected from the fabric during this procedure.

NOTE

Although this document describes how to install a 1U, 1.5U, and 2U switch, the illustrations show a 2U switch as a
typical installation.

Complete these tasks to install the switch in a rack:

1

Bracket, front right and back left

4

Screw, 6-32 x 1/4-in., flathead Phillips (8)

2

Bracket, front left and back right

5

Screw, 10-32 x 5/8-in., panhead Phillips (8)

3

Screw, 8-32 x 5/16-in., panhead Phillips (12)

6

Retainer nut, 10-32 (8)

3

4

5

6

1

2
